Product description

3.1 General description
The Basic classic is available in a 1-Tank and 2-Tank version� The 1-Tank version can be upgraded with a
second tank (see accessories) to a 2-Tank version�

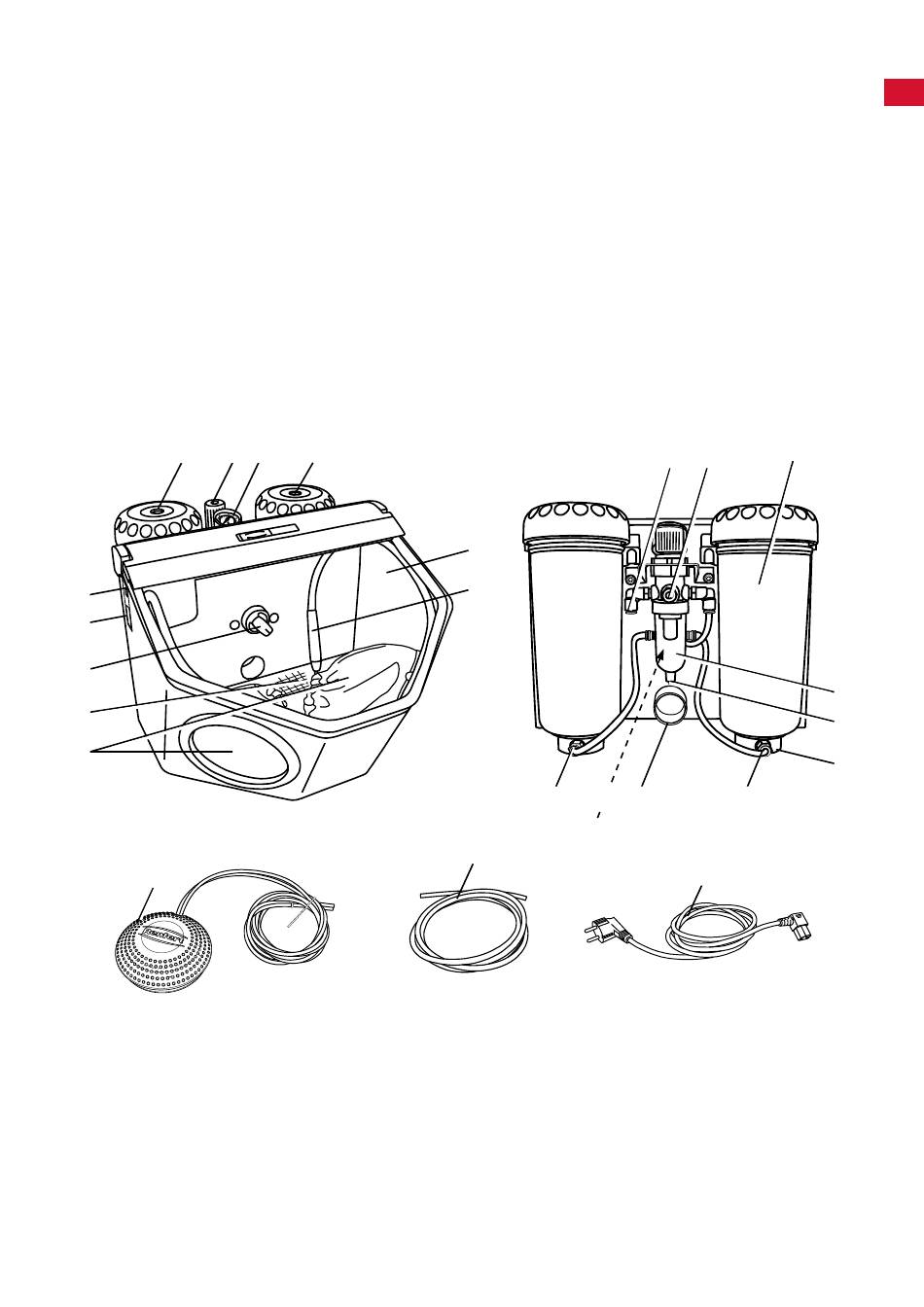

3.2 Components and functional elements
1 Hand sleeves
2
Base grid
3 Selector switch (only
on the 2-tanks version)
4 Appliance socket
5
ON / OFF switch
6 Tank lid
7 Pressure regulator
8
Pressure gauge
6 7
5
4
3
2
1
21
3.3 Standard Delivery
1 Basic classic
1 Foot switch
1 Connection set
1 Set of Operating Instructions, with attachment
1 Power cord
9 Protection screen
10 Hand piece
11 Foot switch connection (A)
12 Air connection
13 Sandblasting tank
14 Water trap
15 Water trap valve
16 Mixing chamber
8 6
9
10
20 19
(obscured
view)
22
- 5 -
17 Filter cartridge
18 Suction tube
19 Foot switch connection (B)
20 Foot switch connection (B)
(only on the 1-tanks version)
21 Foot switch
22 Compressed air tube
23 Power cord
11 12 13
18 17
23
en
14
15
16
Fig. 1
