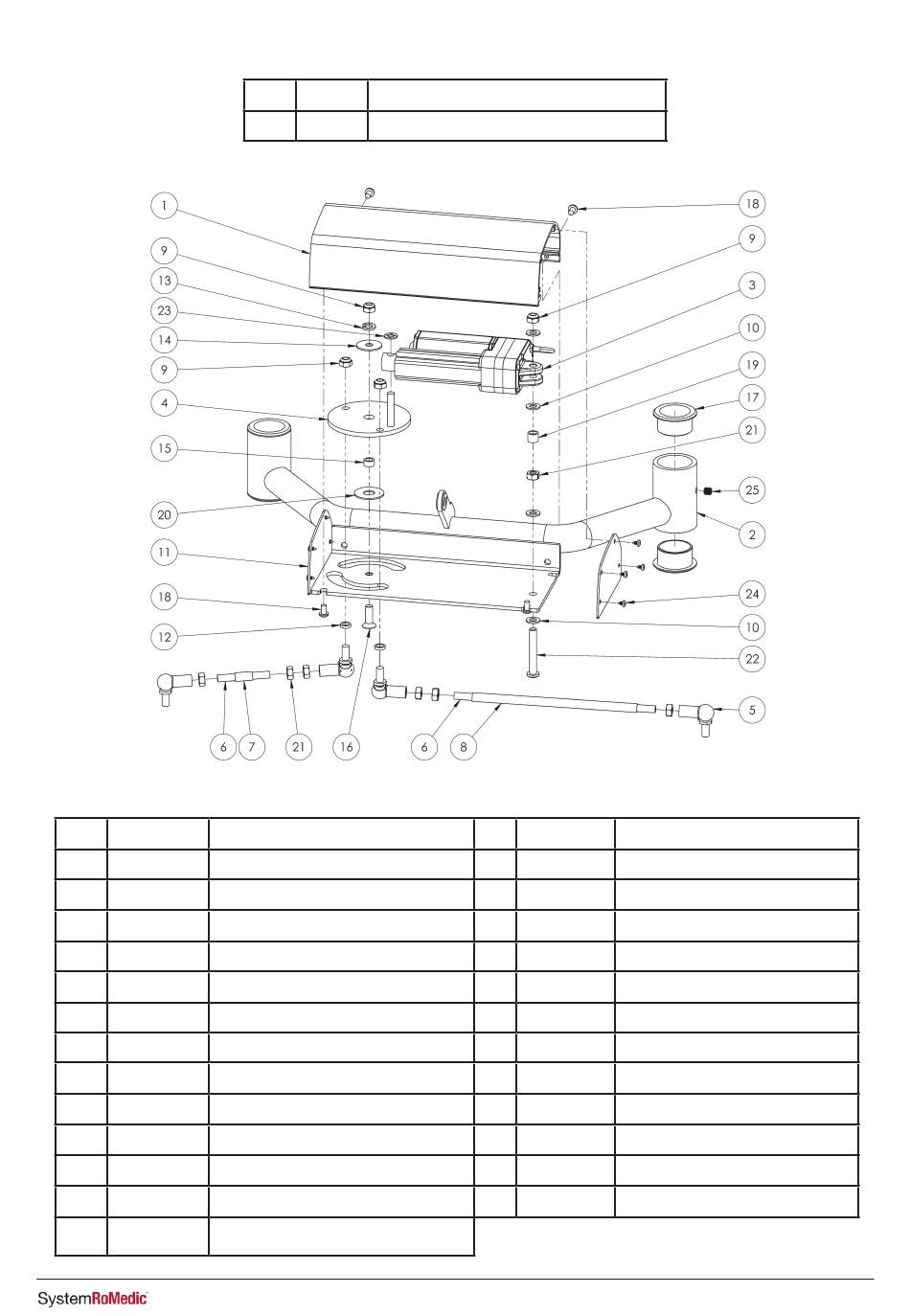

DHG SystemRoMedic BureDouble 2.0 Gebrauchsanweisung Seite 99

No. Art No. Description
1 58-356 Housing Turn motor
2 58-352 Crossection bottom Bure Double
3 58-378 Actuator TA16 TiMotion
4 58-364 Turning wheel
5 57-763 Ball joint angled M8
6 58-381-1/2 Threaded steel rod M8
7 58-380-R Turning tube right
8 58-380-L Turning tube left
9 57-801 Lock nut M8
10 57-806 Washer 8.4x16x1.5
11 58-358 Cover Housing Turn motor
12 57-777 Washer nylon 05-8-12-3
13 57-836 Spring lock washer M8
I F U
No. Art No. Description
2 Widening assembly Bure Double, R&G
No. Art No. Description
14 57-826 Washer 8,4x29x1,5
15 57-760 PVC Spacer 8x12x6,4
16 57-765 Screw MF6S M8x25
17 58-302 Crossection bottom bushing
18 57-818 Screw K6S M6x10
19 57-778 Washer Nylon 05-8-12-10
20 57-774 Washer Nylon 13x34x1,5
21 57-876 Nut M6M M8
22 57-882 Screw K6S 10.9 M8x55
23 57-767 Washer Starloc 8x15,3
24 57-771 Screw RXS 3,5×6,5
25 57-875 Set screw SK6S M8x6
