3.0 Installation
3.1 General
After unpacking, check the RJ402 and the floor and ceiling sensors for damage. Check that the
type/model and the rated voltage are correct and that everything is complete.

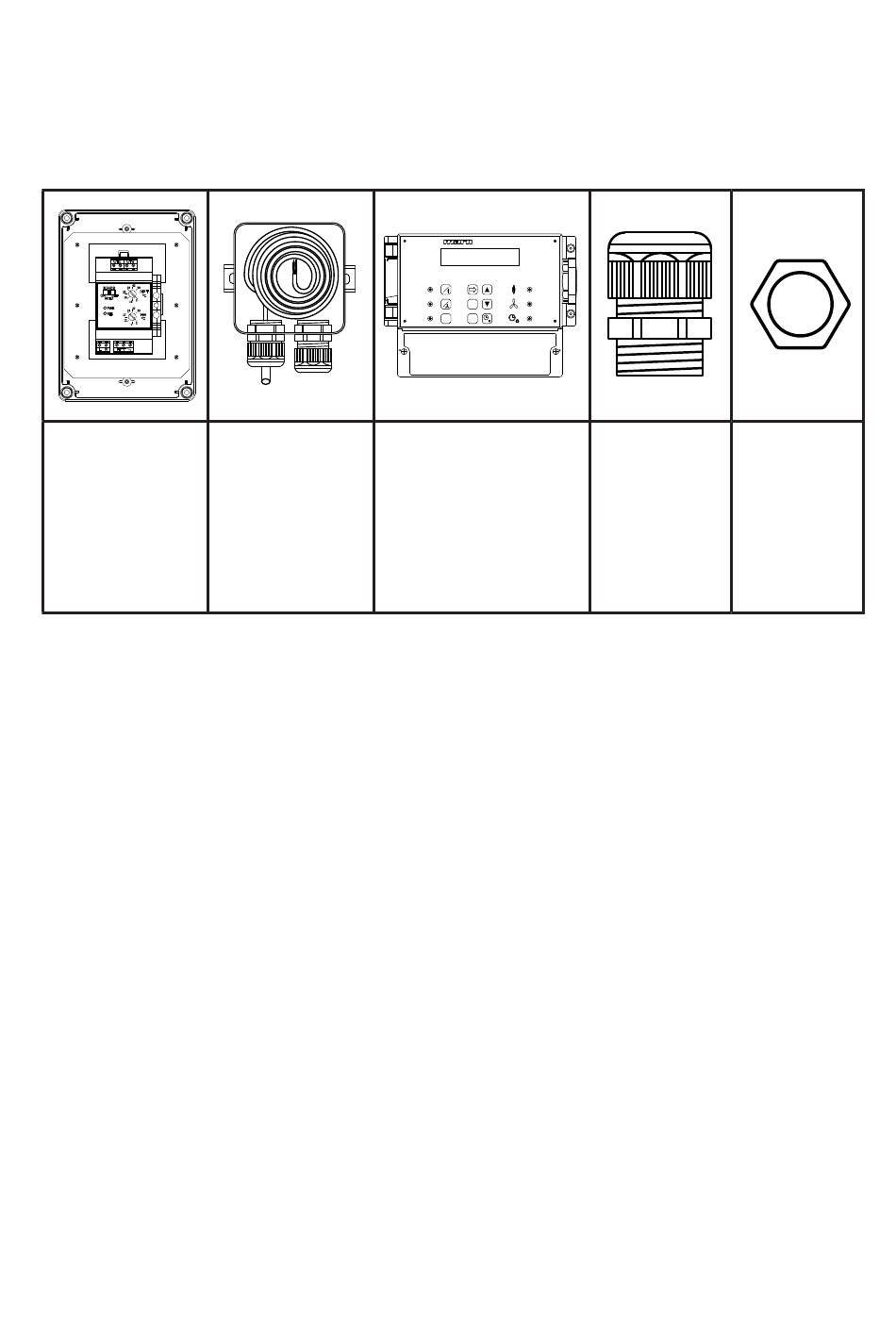

Scope of supply

CT1
CT2
42
RJ402
34
50
Diff T
26
ON
OFF
°C
AUTO
18
2
10
PWR
27
22
35
RE1
Hys
17
°C
12
2
7
L N
RE1
Destratification
control RJ402
in cabinet
1 piece
3.2 Installation destratification controller RJ402
Determine a suitable place for installing the RJ402. Mount the RJ402 on a solid surface. We
recommend mounting the RJ402 at a height of ±1.5m from the floor, at a well reachable place.
Check that the power supply has been switched off before connecting any wiring. If this is not the
case, the power supply must be switched off before you continue. When switching off the power
supply of the appliance to which connection is to be made, you should also refer to the technical
documentation/operating instructions for the appliance in question.
Connect the RJ402 according to one of the supplied electrical diagrams which are in the back of
this technical book. To select the correct connection diagram, you need to know on which type
of device you will connect the RJ402. For suitable options see Annex I.
3.3 Installation room sensors
The placement of the ceiling and floor sensors of the RJ402 is of crucial importance for the
correct functioning of the system. Both sensors must be in the fan air flow and must not be
covered. The ceiling sensor should be installed at the highest point in the room, as central as
possible. Nearby roof openings lead to incorrect measurements and thus, to avoid incorrect
system functions, the floor sensor should be mounted on the side of the room. It should be noted
that constantly opening doors, windows etc. with direct influence on the floor sensor, leads to
the fans starting unnecessarily. The sensors should not be installed on metal supports that have an
external connection (cold bridges).
4
M16
M16
Temperature
PinTherm connect
sensor
1 piece CT1
1 piece CT2
PinTherm Connect
06.29.108
0
0
OK
ESC
RESET
06 29 108
1 piece
M16
Swivel
Nut for
m16
swivel M16
4 pieces
4 pieces
