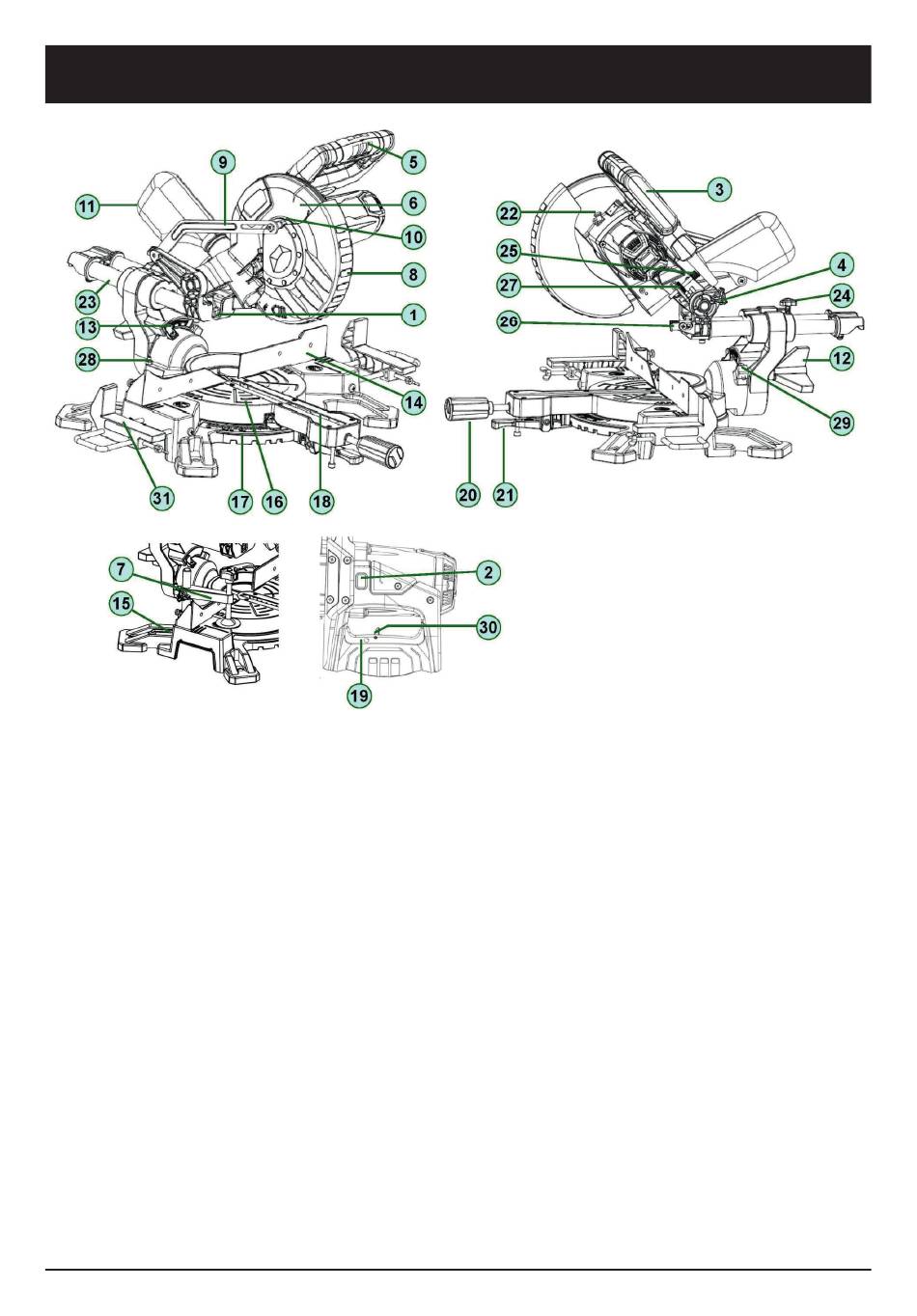

DESCRIPTION
1 Laser
2 Laser switch
3 Arm of the saw
4 Arm lock
5 Saw handle
6 Upper fixed protective cover
7 Clamp
8 Movable saw disc protection
9 Protective cover rod
10 Saw disc screw cover
11 Bag for saws
12 Vertical angle locking screw
13 Vertical angle scale
14 Stop bar
15 6 mm Allen key
16 Turntable
The package also includes a spare saw disc (not shown).
10 ENGLISH
17 Cutting angle scale
18 Table insert
19 Saw switch
20 Handle with angle fixing screw
21 Fixed angle stop
22 Spindle lock
23 Saw feed
24 Feed lock
25 Depth of cut stop screw
26 Cutting depth stop
27 Depth adjustment screw nut
28 Vertical angle stop 45°
29 Vertical angle stop 0°
30 Switch fuse
31 Side supports (×2)
