B

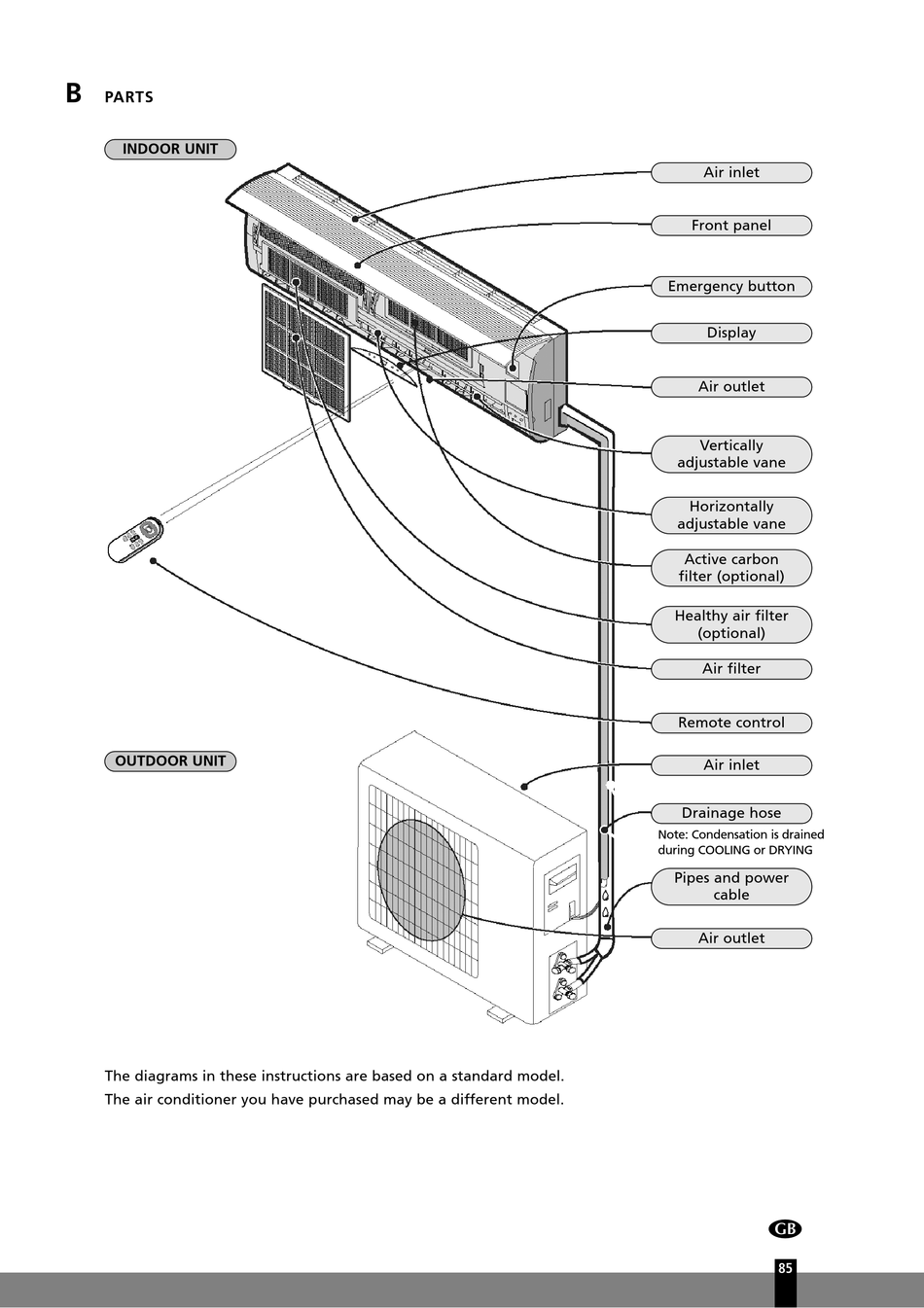

PARTS

INDOOR UNIT

OUTDOOR UNIT

The diagrams in these instructions are based on a standard model.
The air conditioner you have purchased may be a different model.
Air inlet
Front panel
Emergency button
Display
Air outlet
Vertically
adjustable vane
Horizontally
adjustable vane
Active carbon
filter (optional)
Healthy air filter
(optional)
Air filter
Remote control
Air inlet
Drainage hose
Note: Condensation is drained
during COOLING or DRYING
Pipes and power
cable
Air outlet
4
