6. TROUBLESHOOTING
GUN DOES NOT SPRAY
- Fluid adj. knob (13) closed.
- Tip hole of nozzle obstructed.
- Paint filter obstructed.
- Non drip obstructed.
INTERMITTENT SPRAY PATTERN
- Air escapes from fluid nozzle
(2-1).
- Air escapes from fluid needle
packing (3).
- Air escapes from cup joint or
fluid hose joint .
- Dirt inside air cap (1).
DEFECTIVE SPRAY PATTERN
- Dirty nozzle (2-1)or air cap (1). Clean carefully.
Nozzle (2-1) or air cap (1)
has been damaged.
- Fluid nozzle (2-1) is loose.
- Paint viscosity too high or
too low.
- Fluid output too high or
too low.
LEAKING
- Fluid nozzle (2-1), needle set
(2-2) or gun body (4), dirty,
damaged or worn on seat.
- Dirt inside air cap (1).
- Loose fluid adj. knob (13).
- Fluid needle spring (11) is
worn.
- Loose fluid nozzle (2-1).
- Needle packing set (3) loose,
too tight, dirty or worn.
AIR ESCAPES FROM AIR CAP
- Air valve (8), air valve seat (7) Clean or replace if neces-
or air valve spring (9) dirty
or damaged.
- Air valve seat set o ring
(7-1) damaged or worn.
To disassemble Air valve seat_ part.7, use 10 mm allen wrench
*ATTENTION:
(Non ball point type).
To disassemble Fluid nipple_ part. 4-1, use 8 mm allen wrench.
3

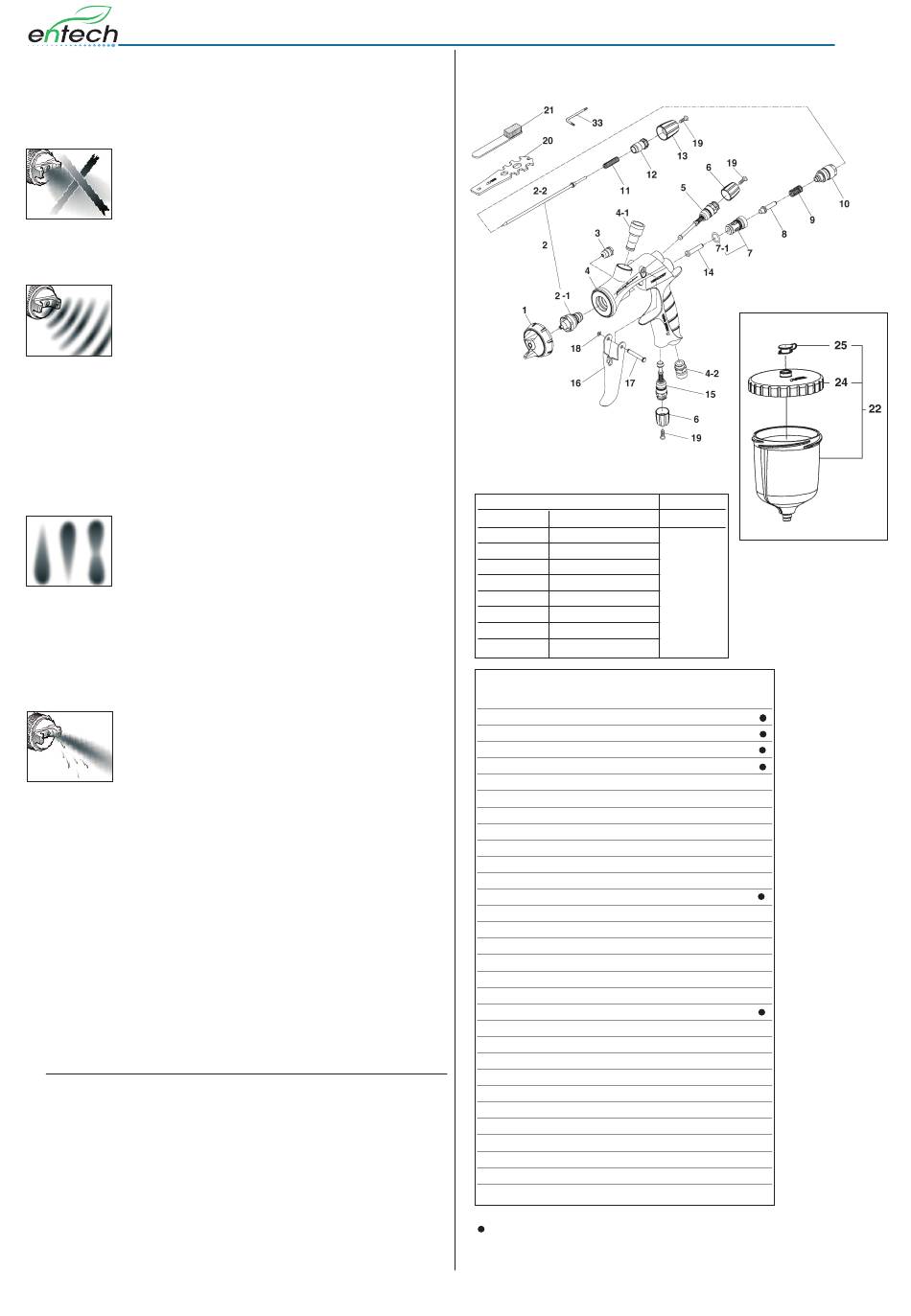

7. SPARE PARTS LIST
Check and adjust.
Check and clean.
Check and clean.
Check and clean.
Check , clean & replace if
necessary.
Tighten.
Tighten.
Clean.
Replace If damaged.
Tighten.
Dilute paint or increase
viscosity
Adjust fluid adj. knob (13)
to reduce or increase.
Clean or replace if neces-
sary.
Clean.
Adjust.
Replace.
Tighten.
Adjust, clean or replace.
sary.
Replace.
NOTE:
No. and marked No. of air cap set, fluid nozzle and fluid needle.
Nozzle_Needle Set COMBINATION
Fluid nozzle
ø
Size
Mark
1.2 ET
LS400/ ET12
1.3 ET
LS400/ ET13
1.4 ET
LS400/ ET14
1.5 ET
LS400/ ET15
1.2 ETS
LS400/ ETS12
1.3 ETS
LS400/ ETS13
1.4 ETS
LS400/ ETS14
1.5 ETS
LS400/ ETS15
DESCRIPTION
Air cap
Fluid Nozzle + Fluid needle set
Fluid Nozzle
Fluid needle
Needle packing set
Body set
Fluid nipple *
Air nipple
Pattern adjustment set
Adjustment knob
Air valve seat *
O'ring
Air valve
Air valve spring
Fluid adjustment guide
Needle spring
Fluid adjustment screw
Fluid adjustment knob
Air valve shaft
Air adjustment set
Trigger
Trigger stud
E stopper
Countersunk socket screw
(Torx T10)
Spanner
Brush
Cup 600 cc
Lid
Knob
Allen wrench
Filter (optional)
Marked parts are wearable parts.
When ordering parts, specify gun model, part name with ref.
600 cc CUP
Fluid needle
Mark
20015
REF.
Ref. 1
Ref. 2
Ref. 2-1
Ref. 2-2
Ref. 3
Ref. 4
Ref. 4-1
Ref. 4-2
Ref. 5
Ref. 6
Ref. 7
Ref. 7-1
Ref. 8
Ref. 9
Ref. 10
Ref. 11
Ref. 12
Ref. 13
Ref. 14
Ref. 15
Ref. 16
Ref. 17
Ref. 18
Ref. 19
Ref. 20
Ref. 21
Ref. 22
Ref. 24
Ref. 25
Ref. 33
