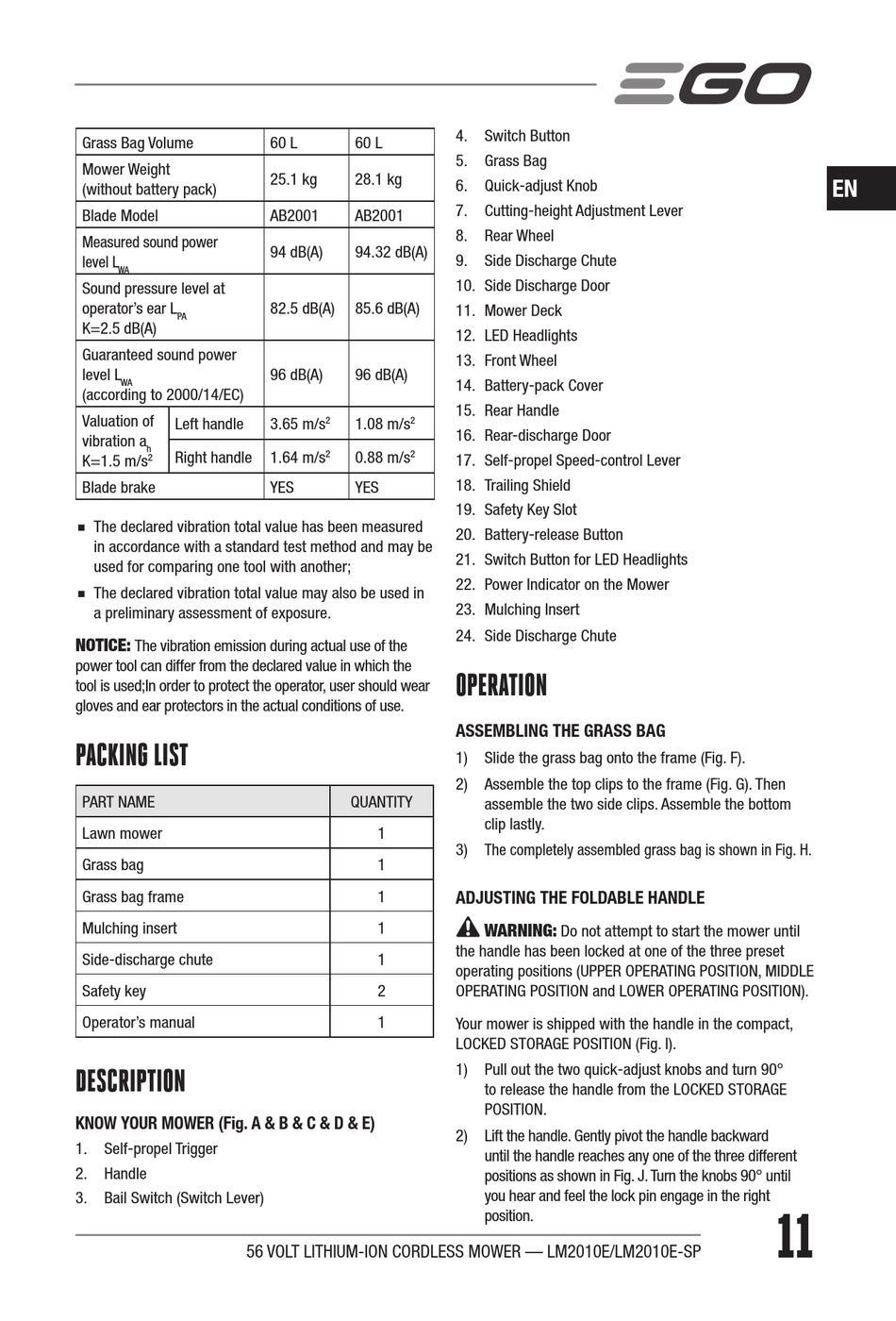

Grass Bag Volume
Mower Weight
(without battery pack)
Blade Model
Measured sound power
level L
WA
Sound pressure level at
operator's ear L
PA
K=2.5 dB(A)
Guaranteed sound power
level L
WA
(according to 2000/14/EC)
Valuation of
Left handle
vibration a
h
Right handle
K=1.5 m/s
2
Blade brake
◾
The declared vibration total value has been measured
in accordance with a standard test method and may be
used for comparing one tool with another;
◾
The declared vibration total value may also be used in
a preliminary assessment of exposure.
NOTICE:
The vibration emission during actual use of the
power tool can differ from the declared value in which the
tool is used;In order to protect the operator, user should wear
gloves and ear protectors in the actual conditions of use.

PACKING LIST

PART NAME
Lawn mower
Grass bag
Grass bag frame
Mulching insert
Side-discharge chute
Safety key
Operator's manual
DESCRIPTION
KNOW YOUR MOWER (Fig. A & B & C & D & E)
1. Self-propel Trigger
2. Handle
3. Bail Switch (Switch Lever)
60 L 60 L
25.1 kg 28.1 kg
AB2001 AB2001
94 dB(A) 94.32 dB(A)
82.5 dB(A) 85.6 dB(A)
96 dB(A) 96 dB(A)
3.65 m/s 1.08 m/s
2 2
1.64 m/s 0.88 m/s
2 2
YES YES
QUANTITY
1
1
1
1
1
2
1
56 VOLT LITHIUM-ION CORDLESS MOWER — LM2010E/LM2010E-SP
4. Switch Button
5. Grass Bag
6. Quick-adjust Knob
7. Cutting-height Adjustment Lever
8. Rear Wheel
9. Side Discharge Chute
10. Side Discharge Door
11. Mower Deck
12. LED Headlights
13. Front Wheel
14. Battery-pack Cover
15. Rear Handle
16. Rear-discharge Door
17. Self-propel Speed-control Lever
18. Trailing Shield
19. Safety Key Slot
20. Battery-release Button
21. Switch Button for LED Headlights
22. Power Indicator on the Mower
23. Mulching Insert
24. Side Discharge Chute
OPERATION
ASSEMBLING THE GRASS BAG
1) Slide the grass bag onto the frame (Fig. F).
2) Assemble the top clips to the frame (Fig. G). Then
assemble the two side clips. Assemble the bottom
clip lastly.
3) The completely assembled grass bag is shown in Fig. H.
ADJUSTING THE FOLDABLE HANDLE
WARNING:
Do not attempt to start the mower until
the handle has been locked at one of the three preset
operating positions (UPPER OPERATING POSITION, MIDDLE
OPERATING POSITION and LOWER OPERATING POSITION).
Your mower is shipped with the handle in the compact,
LOCKED STORAGE POSITION (Fig. I).
1) Pull out the two quick-adjust knobs and turn 90°
to release the handle from the LOCKED STORAGE
POSITION.
2) Lift the handle. Gently pivot the handle backward
until the handle reaches any one of the three different
positions as shown in Fig. J. Turn the knobs 90° until
you hear and feel the lock pin engage in the right
position.
