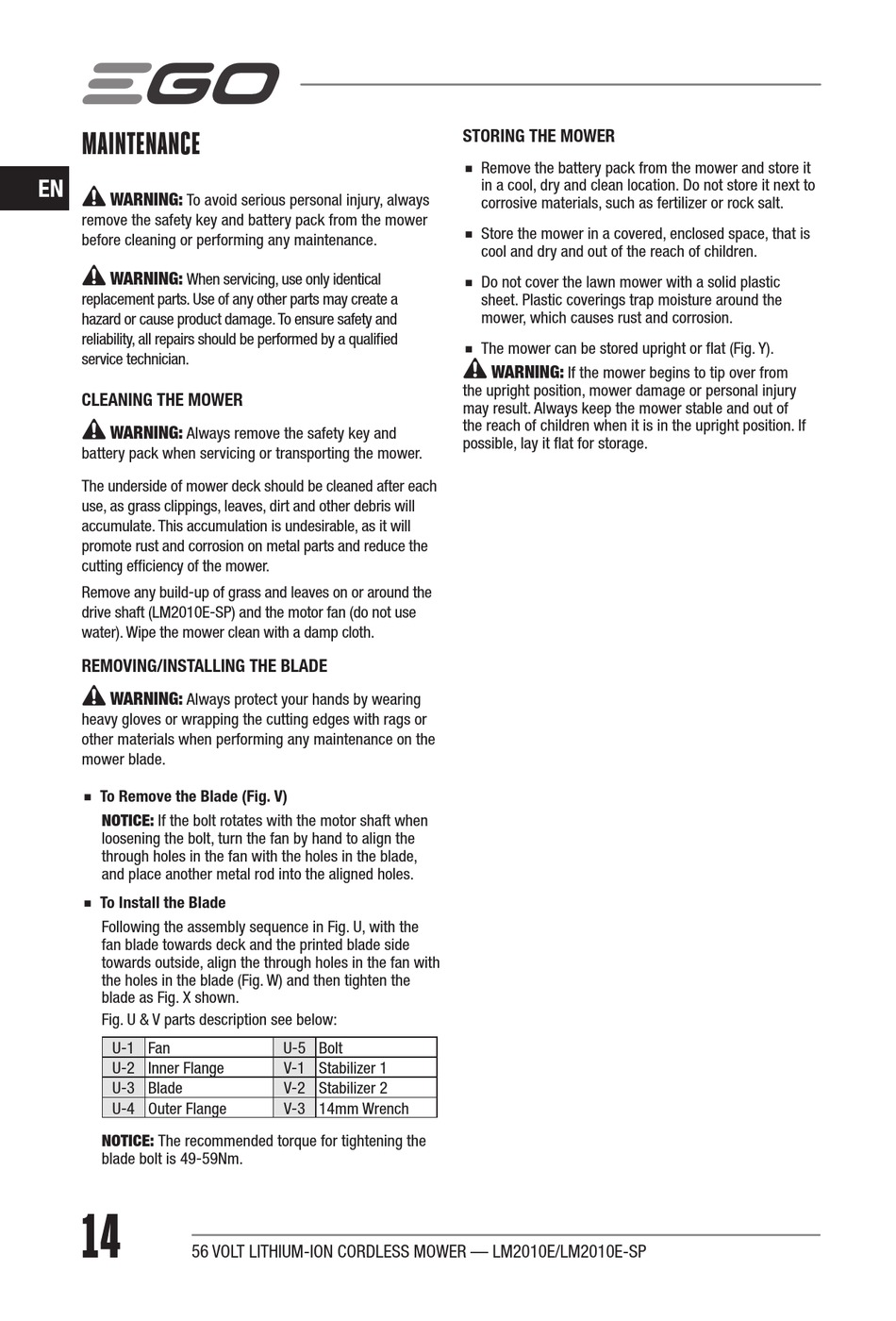

Ego Power+ LM2010E Bedienungsanleitung Seite 14

MAINTENANCE
EN
WARNING:
To avoid serious personal injury, always
remove the safety key and battery pack from the mower
before cleaning or performing any maintenance.
WARNING:
When servicing, use only identical
replacement parts. Use of any other parts may create a
hazard or cause product damage. To ensure safety and
reliability, all repairs should be performed by a qualified
service technician.
CLEANING THE MOWER
WARNING:
Always remove the safety key and
battery pack when servicing or transporting the mower.
The underside of mower deck should be cleaned after each
use, as grass clippings, leaves, dirt and other debris will
accumulate. This accumulation is undesirable, as it will
promote rust and corrosion on metal parts and reduce the
cutting efficiency of the mower.
Remove any build-up of grass and leaves on or around the
drive shaft (LM2010E-SP) and the motor fan (do not use
water). Wipe the mower clean with a damp cloth.
REMOVING/INSTALLING THE BLADE
WARNING:
Always protect your hands by wearing
heavy gloves or wrapping the cutting edges with rags or
other materials when performing any maintenance on the
mower blade.
◾
To Remove the Blade (Fig. V)
NOTICE: If the bolt rotates with the motor shaft when
loosening the bolt, turn the fan by hand to align the
through holes in the fan with the holes in the blade,
and place another metal rod into the aligned holes.
◾
To Install the Blade
Following the assembly sequence in Fig. U, with the
fan blade towards deck and the printed blade side
towards outside, align the through holes in the fan with
the holes in the blade (Fig. W) and then tighten the
blade as Fig. X shown.
Fig. U & V parts description see below:
U-1 Fan
U-2 Inner Flange
U-3 Blade
U-4 Outer Flange
NOTICE: The recommended torque for tightening the
blade bolt is 49-59Nm.
14
56 VOLT LITHIUM-ION CORDLESS MOWER — LM2010E/LM2010E-SP
U-5 Bolt
V-1 Stabilizer 1
V-2 Stabilizer 2
V-3 14mm Wrench
STORING THE MOWER
◾
Remove the battery pack from the mower and store it
in a cool, dry and clean location. Do not store it next to
corrosive materials, such as fertilizer or rock salt.
◾
Store the mower in a covered, enclosed space, that is
cool and dry and out of the reach of children.
◾
Do not cover the lawn mower with a solid plastic
sheet. Plastic coverings trap moisture around the
mower, which causes rust and corrosion.
◾
The mower can be stored upright or flat (Fig. Y).
WARNING:
If the mower begins to tip over from
the upright position, mower damage or personal injury
may result. Always keep the mower stable and out of
the reach of children when it is in the upright position. If
possible, lay it flat for storage.
