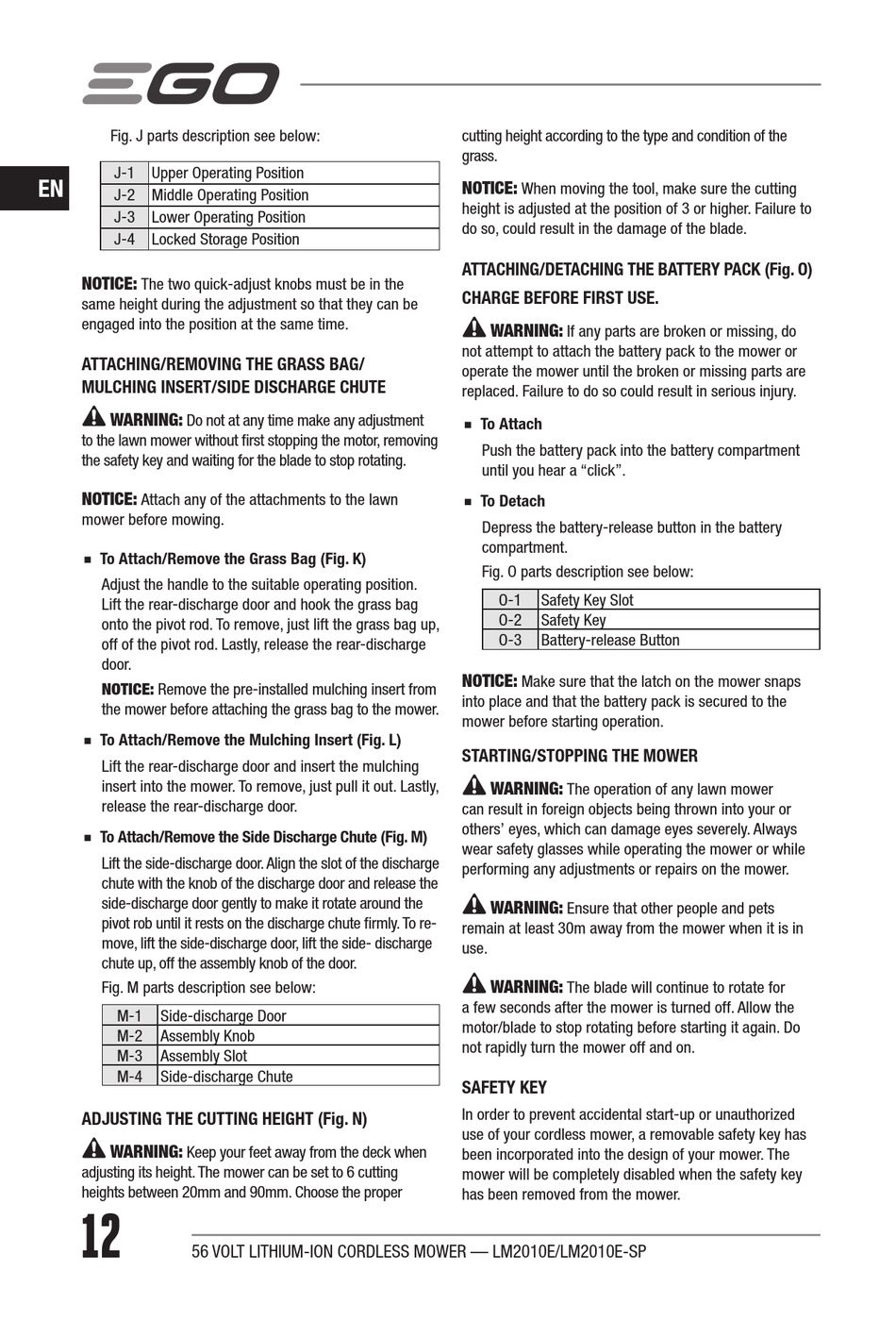

Ego Power+ LM2010E Bedienungsanleitung Seite 12

Fig. J parts description see below:
J-1 Upper Operating Position
EN
J-2 Middle Operating Position
J-3 Lower Operating Position
J-4 Locked Storage Position
NOTICE:
The two quick-adjust knobs must be in the
same height during the adjustment so that they can be
engaged into the position at the same time.
ATTACHING/REMOVING THE GRASS BAG/
MULCHING INSERT/SIDE DISCHARGE CHUTE
WARNING:
Do not at any time make any adjustment
to the lawn mower without first stopping the motor, removing
the safety key and waiting for the blade to stop rotating.
NOTICE:
Attach any of the attachments to the lawn
mower before mowing.
◾
To Attach/Remove the Grass Bag (Fig. K)
Adjust the handle to the suitable operating position.
Lift the rear-discharge door and hook the grass bag
onto the pivot rod. To remove, just lift the grass bag up,
off of the pivot rod. Lastly, release the rear-discharge
door.
NOTICE: Remove the pre-installed mulching insert from
the mower before attaching the grass bag to the mower.
◾
To Attach/Remove the Mulching Insert (Fig. L)
Lift the rear-discharge door and insert the mulching
insert into the mower. To remove, just pull it out. Lastly,
release the rear-discharge door.
◾
To Attach/Remove the Side Discharge Chute (Fig. M)
Lift the side-discharge door. Align the slot of the discharge
chute with the knob of the discharge door and release the
side-discharge door gently to make it rotate around the
pivot rob until it rests on the discharge chute firmly. To re-
move, lift the side-discharge door, lift the side- discharge
chute up, off the assembly knob of the door.
Fig. M parts description see below:
M-1 Side-discharge Door
M-2 Assembly Knob
M-3 Assembly Slot
M-4 Side-discharge Chute
ADJUSTING THE CUTTING HEIGHT (Fig. N)
WARNING:
Keep your feet away from the deck when
adjusting its height. The mower can be set to 6 cutting
heights between 20mm and 90mm. Choose the proper
12
56 VOLT LITHIUM-ION CORDLESS MOWER — LM2010E/LM2010E-SP
cutting height according to the type and condition of the
grass.
NOTICE:
When moving the tool, make sure the cutting
height is adjusted at the position of 3 or higher. Failure to
do so, could result in the damage of the blade.
ATTACHING/DETACHING THE BATTERY PACK (Fig. O)
CHARGE BEFORE FIRST USE.
WARNING:
If any parts are broken or missing, do
not attempt to attach the battery pack to the mower or
operate the mower until the broken or missing parts are
replaced. Failure to do so could result in serious injury.
◾
To Attach
Push the battery pack into the battery compartment
until you hear a "click".
◾
To Detach
Depress the battery-release button in the battery
compartment.
Fig. O parts description see below:
O-1 Safety Key Slot
O-2 Safety Key
O-3 Battery-release Button
NOTICE:
Make sure that the latch on the mower snaps
into place and that the battery pack is secured to the
mower before starting operation.
STARTING/STOPPING THE MOWER
WARNING:
The operation of any lawn mower
can result in foreign objects being thrown into your or
others' eyes, which can damage eyes severely. Always
wear safety glasses while operating the mower or while
performing any adjustments or repairs on the mower.
WARNING:
Ensure that other people and pets
remain at least 30m away from the mower when it is in
use.
WARNING:
The blade will continue to rotate for
a few seconds after the mower is turned off. Allow the
motor/blade to stop rotating before starting it again. Do
not rapidly turn the mower off and on.
SAFETY KEY
In order to prevent accidental start-up or unauthorized
use of your cordless mower, a removable safety key has
been incorporated into the design of your mower. The
mower will be completely disabled when the safety key
has been removed from the mower.
