Installation and User Manual Rocher Pure
2.20.

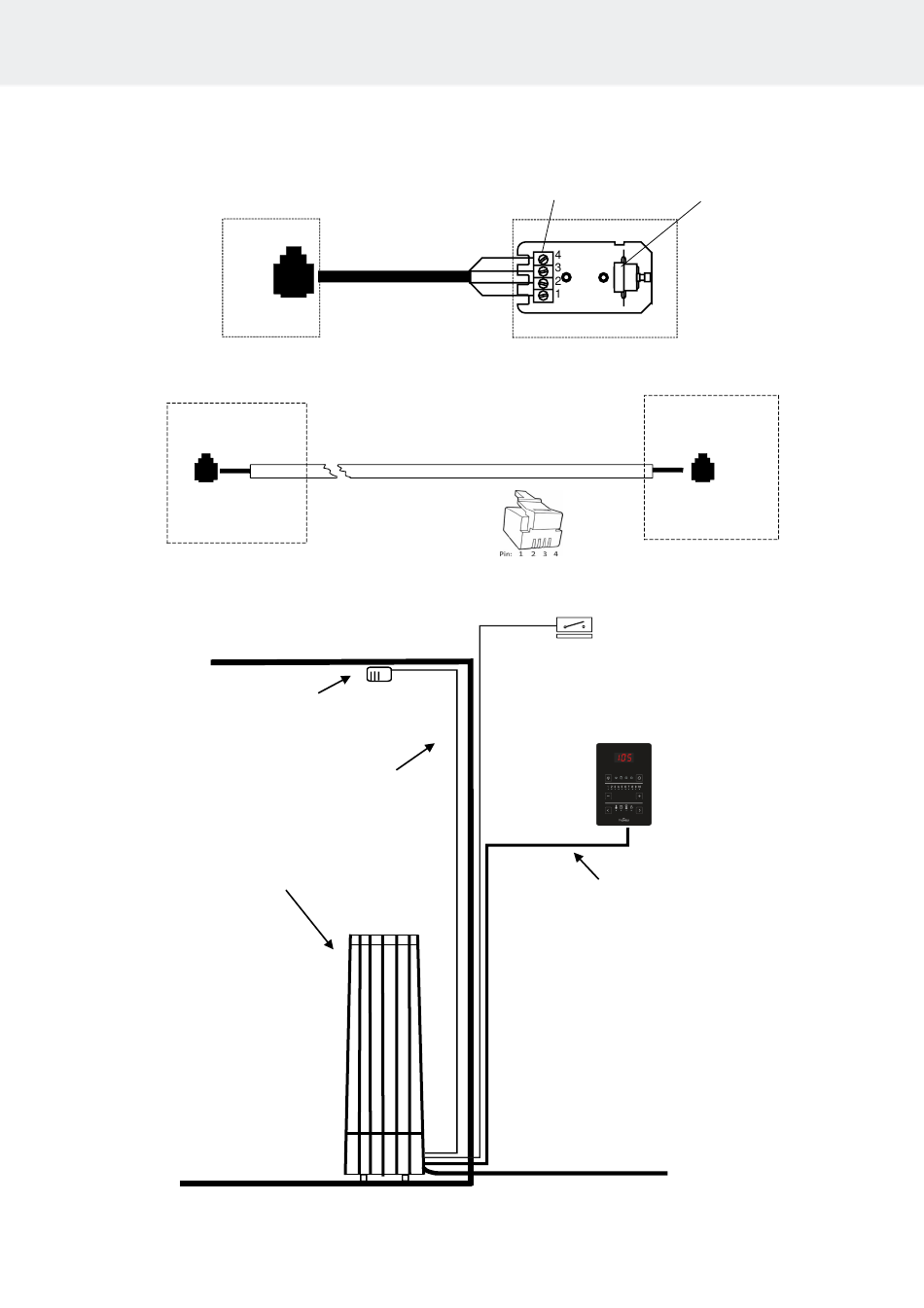

Principle image when Pure is used as control panel

Heater
Adapter circuit
board OLEA 99
Heater
Adapter circuit
board OLEA 99
Sensor OLET 31
Heater
Sensor cable
1= Blue
2= White
3= Red
4= Yellow
A1 Yellow
A2 Green
A3 Red
A4 Black
Principle image
Silikone 4 x 0,25 mm²
Figure 10 Principle image
Terminal block
Limiter
Sensor OLET 31
Control panel
Pure
Door switch
1601 - 33
Control panel
Pure
NOTE!
See more detailed
installation instructions
in the control panel
1601 - 33
operating instructions
4 x 0,15 mm²
Input
230V – 240V 1N~ / 2~
230V 3~
400V – 415V 3N~
14
