Waterdrop WD-PF-01A Plus Kurzanleitung

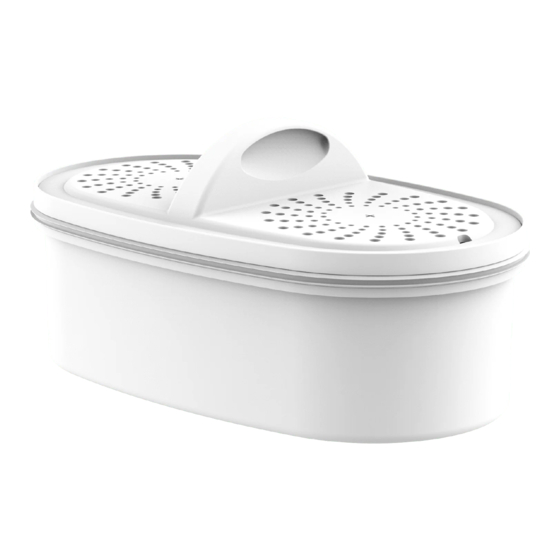

Pitcher replacement filter installation instructions
Model: WD-PF-01A Plus
Filter life: Up to 200-gallon capacity. The actual result may vary according to the local water quality.
Tested and Certified by NSF International against NSF/ANSI Standard 42 in model
ECF-7015XX-21FZ/ECF-7017XX-21FZ/ECF-7019XX-21FZ for the reduction of the
claims specified on the Performance Data Sheet, and to NSF/ANSI 372 (≤0.25% lead).
Installation instructions
Step 1 Remove the old filter cartridge.
Step 2 Take out the new filter cartridge from the package. Soak the filter in cold water for 10 minutes. [Figure 1]
Step 3 Install the new filter cartridge into the reservoir to ensure a tight seal. [Figure 2]
Step 4 Fill the reservoir with cold tap water. Discard the first two pitchers of filtered water.
Step 5 Hold the button for 5 seconds until the blue light flashes to activate the filter life indicator. [Figure 3]
NOTE: Repeat this step after each new filter replacement.
Figure 1
Warning
1. To reduce the risk of property damage due to water leakage, this filter MUST be installed in
accordance with the manufacturer's specifications and instructions.
2. The operating temperature of this pitcher filtration system is 5-38˚C/41-100˚F.
3. Failure to follow instructions and operating specifications will void your warranty. Further, manufacturer
assumes no responsibility or liability for damages arising out of misuse of the product.
Manufacturer Technical Support
Tel: +1-888-352-3558 (U.S.)
E-mail: service@waterdropfilter.com
Figure 2 Figure 3
Made in China V042
Qingdao Ecopure Filter Co., Ltd.
Frequently asked questions:
Q: Why does the water flow get slow?
A: Pleae check the indicator to see if it's time to change the filter cartridge. If yes, please replace the cartridge
immediately. If not, please try the following steps to slove the problem.
Option 1: Remove the filter and shake it horizontally in order
to shift the granules inside.
Option 2: Remove the filter. Flush under flowing water for about 30 seconds to
eliminate blockage of water outlets of the filter.
Stop flushing and shake the filter horizontally. Then put the filter back in the pitcher.
Q: Why does the water taste bad?
A: The product is unclean, or the filter cartridge is not installed properly. It could also be time to change the filter
cartridge. Please clean the pitcher and install the cartridge correctly or replace the filter cartidge.
Q: Why are there fine particles on the surface of the filter cartridge?
A: Fine particles are part of the filter material, which may leak out during long distance transportation due to
shaking and other reasons. These particles will not have a negative impact on heath. In order to remove these fine
particles, please follow the using steps of our products. Soak the filter in cold water for 10 minutes. Flush the filter
twice. After flushing the filter, the pitcher can be used normally.
Performance data sheet
System Model No.: ECF-7015XX-21FZ/ECF-7017XX-21FZ/ECF-7019XX-21FZ
Substance reduction:
The system has been tested and certified by the NSF International according to NSF/ANSI Standards 42, and 372.
The concentration of the indicated substances in water entering the system was reduced to a concentration less
than or equal to the permissible limit for the water leaving the system, as specified by NSF/ANSI Standards 42.
While testing was performed under standard laboratory conditions, actual performance may vary.
NSF Specified
Ave. %
Substance Inf. Average
Challenge
Reduction(%)
Concentration
Chlorine Taste
2.0 mg/L 2.0mg/L±10% 96.7%
and Odor
Do not use with water that is microbiologically unsafe or of unknown water quality without
adequate disinfection before or after the system. Systems certified for cyst reduction may be used with
disinfected water that may contain filterable cysts.
Average Max Permissible
NSF Reduction
Product Water Product Water
Requirements
Concentration Concentration
0.05mg/L N/A ≥50% J-00355920
NSF Test
Report
