5. Recommended Placement
The thermostat should be mounted on the wall. The kind of position should ensure
EN
free air circulation.
Warning: Place of installation should be free from influence of heat caused by
sunlight or air flow, initiated by opening and closing windows.

6. Temperature Setting

Factory default temperature control range is +5°C . . . +40°C. At the beginning, first
set temperature value to maximum. Rotate the knob counterclockwise when set
temperature is reached. Indicator light should turn to green.
7. LTP Function
(Low Temperature Protection, Default OFF)
Release the front cover. Open thermostat panel to turn
switch to LTP. In this operation mode, thermostat will
start heating system when room temperature is dropping
below +5°C. Exceeding +5°C will automatically shut off
heating system.
8. Sensor Mode
(Default: Auto mode)
External mode: Switch to position OUT. When external
sensor is connected, system works in "external mode".
Automatic mode: Built-in sensor compares actual
temperature with setting. External sensor limits
maximum temperature.

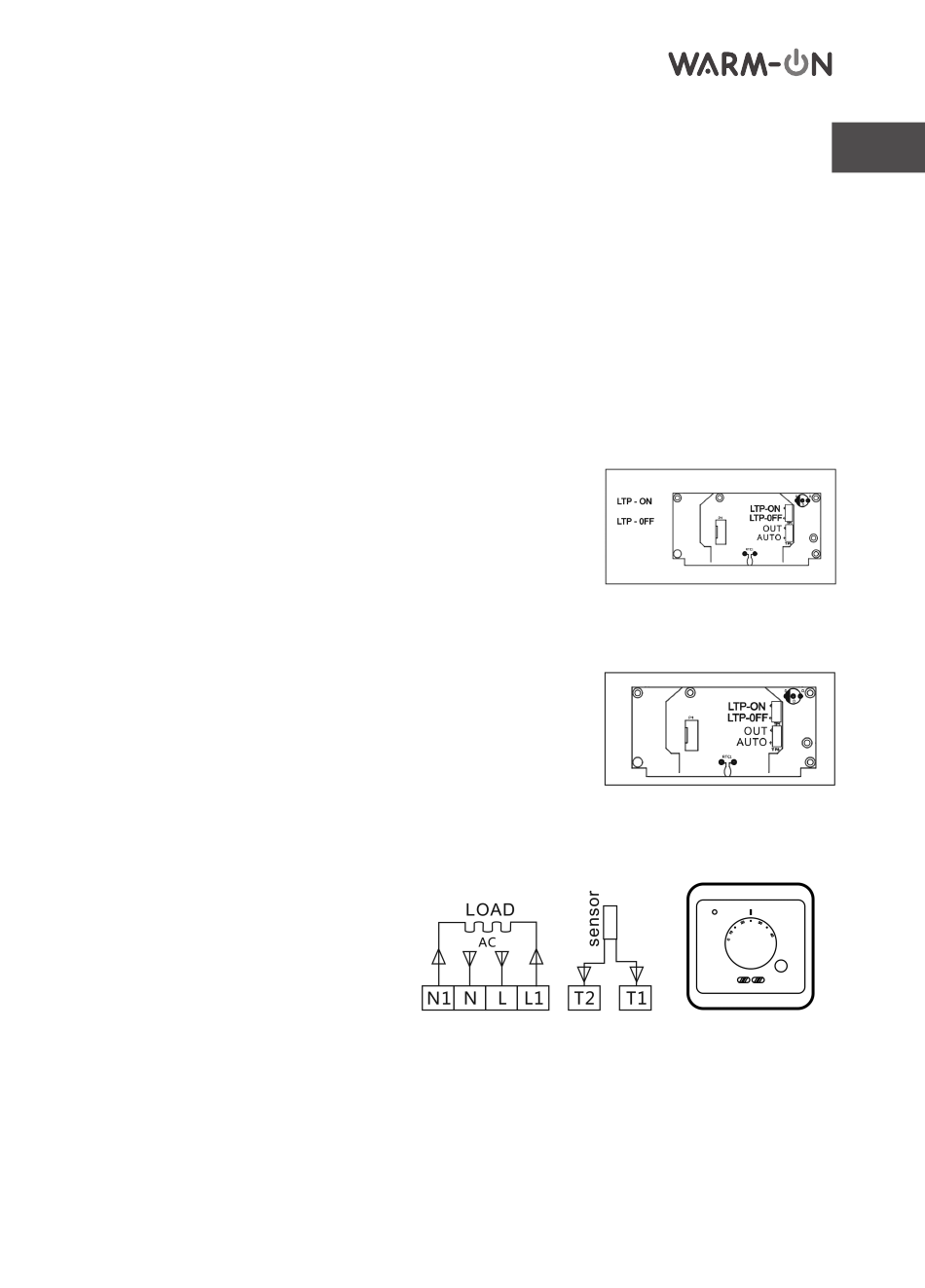

9. Wiring Diagram

1. Red LED: Heating device on.
2. Green LED: Heating devices off.
3
