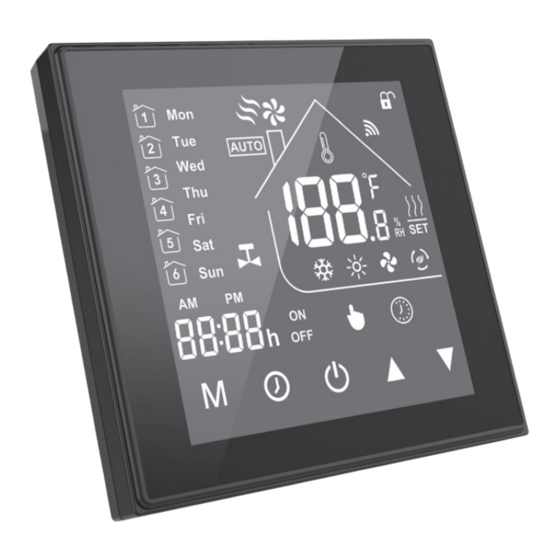

Thermostat MCS-450 Touch
User Guide
For Water Heating/Bailer/Electric Heating
CONTENT
General ............................................................................................ 1
Scope of supply ................................................................................1
Features .............................................................................................1
Important information
ahead of installation ......................................................................1
Installation
of floorwarming sensor .................................................................2
Wall assembly
of thermostat ...................................................................................2
Wiring of thermostat.....................................................................2
Technical data ................................................................................2
Connection heating systems .......................................................3
Handling of thermostat
and programming ...........................................................................3
Troubleshooting .............................................................................4
Warranty ..........................................................................................5
Product conformity ........................................................................5
Disposal ............................................................................................5
Customer support ..........................................................................5
GENERAL
Thank you for your purchase. This new thermostat pro-
vides a uniform and comfortable temperature surveil-
lance. For every room in your property. The thermostat
reference "MCS-450 Touch" combines advanced tech-
nology, skilled craftsmanship, and high quality compo-
nents. For safe, self-consisting and reliable operation,
with a sleek contemporary design. Please consider this
user guide carefully ahead of installation. Thermostat
"MCS-450 Touch" as an electrical component requires
installation by a qualified craftsman or an appropriate
worker, electrically instructed.
SCOPE OF SUPPLY
The packing unit contains:
- thermostat, 1 piece
- user guide, 1 piece
- screws, 2 pieces
- QC passed/Inspection evidence, 1 piece
FEATURES
Choice of components and quality of devices generates
long operation time. The thermostat design merges
seamless with the style of living environment. The
touch screen LCD-display (with blacklight) allows
precise and easy readability even in the dark.
Illuminated touch switches indicate operational rea-
diness 24/7. Easy-as-winking operable UI interface.
Two design choices: Black or white chassis.
IMPORTANT INFORMATION
Ahead of installation
1. Read this user guide carefully. Full knowledge about
appropriate handling will prevent installer and user
against hazards.
2. Check design data of product (identification plate),
energy supply, and conditions at site.
3. Installation and set to operation only by authorised
and trained workers.
4. Immediate after completion of installation check
functionality of the system for safe operation.
CAUTION: Electrical shock or equipment damage
hazard can occur in case of inadequate installation.
Disconnect power supply ahead of any installation or
repair work.
EN
1
