Control panel

Overwiew The key feature of the control panel is the logical way in which the controls are arranged.
All the main parameters needed for day-to-day working can easily be
-
-
-

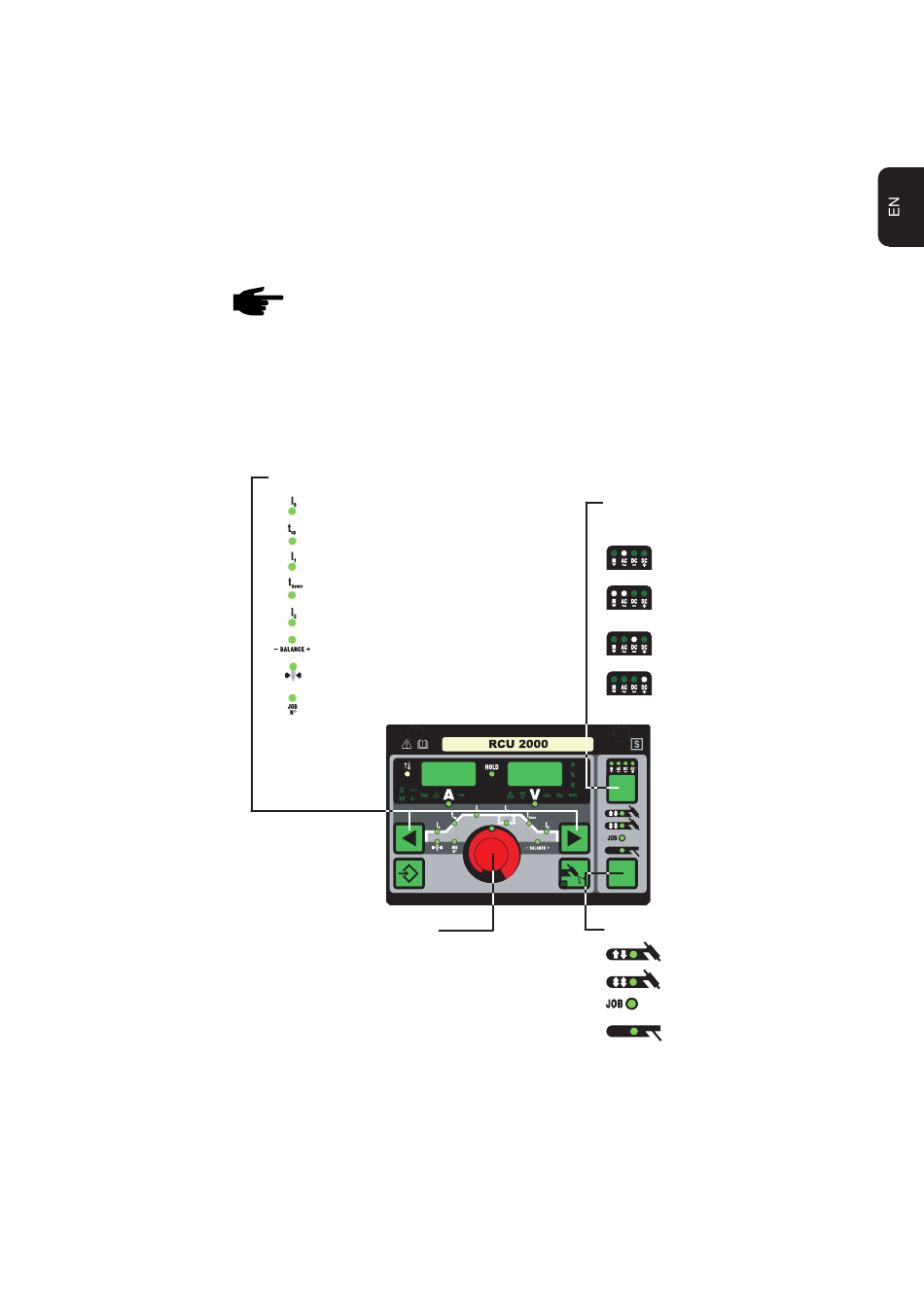

The illustration below shows an overview of the main settings needed for day-to-day
working, based on the example of the MagicWave 1700/2200 control panel. You will find
a detailed description of these settings in the following section ("Control panel").
selected with the buttons
altered with the adjusting dial
shown on the display during welding.
NOTE! Owing to software updates, you may find that your machine has certain
functions that are not described in these Operating Instructions, or vice-versa.
Also, certain illustrations may be very slightly different from the actual controls
on your machine. However, these controls function in exactly the same way.
3. Select the parameter:
Starting current I
S
Upslope t
up
Main current I
1
Downslope t
down
Final current I
E
Balance (only with TIG-AC)
Electrode diameter
Job number (only in Job Mode)
4. Alter the parameter
2. Choose which process:
(only on MagicWave 1700/2200)
1. Select the operating mode:
3
AC welding
AC + cap-shaping
(only with TIG)
DC- welding
DC+ welding
(only with rod electrode)
2-step mode
4-step mode
Job mode
Rod electrode (MMA)
