Seite 2: Technical Data

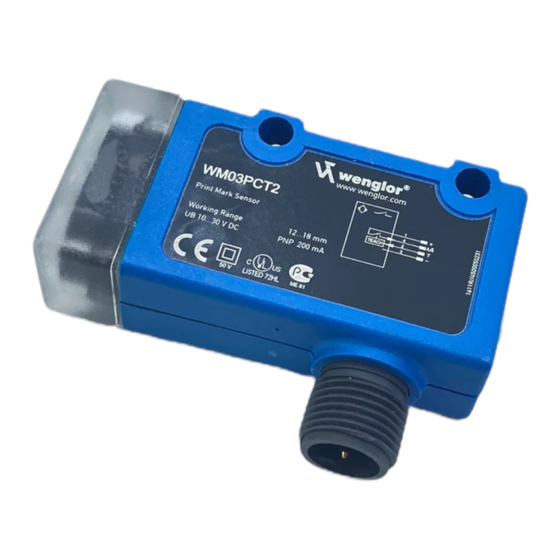

Print Mark Sensor WM03PCT2 Part Number Technical Data Optical Data Working Range 12...18 mm Working Distance 15 mm Resolution 20 Gray Scale Switching Hysteresis < 2 % Light Source White Light Wave Length 400...700 nm Service Life (T = +25°C) 100000 h max. -
Seite 3: Accessories
Ideal Working Distance Adapterbox A232 Mounting Bracket WM2 Ctrl.Panel a = Working Distance 01 = Switching Status Indicator b = Working Range 06 = Teach Button Sensors for your success www. wenglor .com Sensors for your success www. wenglor .com... - Seite 4 Bestell-Nr. WM03PCT2 WM03NCT2 gang A des Sensors schaltet ein, wenn der Sensor den zuerst Dieses wenglor Produkt ist gemäß dem folgenden Funktions- Beim Betrieb der Sensoren sind die entsprechenden elektri- Anschlussbild-Nr. eingeteachten Grauwert erkennt und schaltet aus, wenn er prinzip zu verwenden: schen sowie mechanischen Vorschriften, Normen und Sicher- den zuletzt eingeteachten Grauwert erkennt.
- Seite 5 Order No. WM03PCT2 WM03NCT2 irrelevant as far as switching characteristics are concerned. This wenglor product has to be used according to the During operation of the sensors, the corresponding electrical Connection Diagramm No. Sensor output A is activated when the sensor recognizes the...
- Seite 6 Print Mark Sensor WP02PAT80 Part Number Technical Data Optical Data Working Range 12...16 mm Working Distance 14 mm Resolution 100 Gray Scale Switching Hysteresis < 1 % Light Source White Light Wave Length 400...700 nm Service Life (T = +25°C) 100000 h max.
- Seite 7 Ctrl.Panel 01 = Switching Status Indicator 07 = Selector Switch a = Working Distance 24 = Plus Button b = Working Range 25 = Minus Button Sensors for your success www. wenglor .com Sensors for your success www. wenglor .com...
- Seite 8 Print Mark Sensor WP04PAT80 Part Number Technical Data Optical Data Working Range 30...40 mm Working Distance 35 mm Resolution 100 Gray Scale Switching Hysteresis < 1 % Light Source White Light Wave Length 400...700 nm Service Life (T = +25°C) 100000 h max.
