4.4. Functional description of the
VR2 attendant control unit
As an option the electric wheelchair can be fitted with an attendant
control unit.
39.
40.

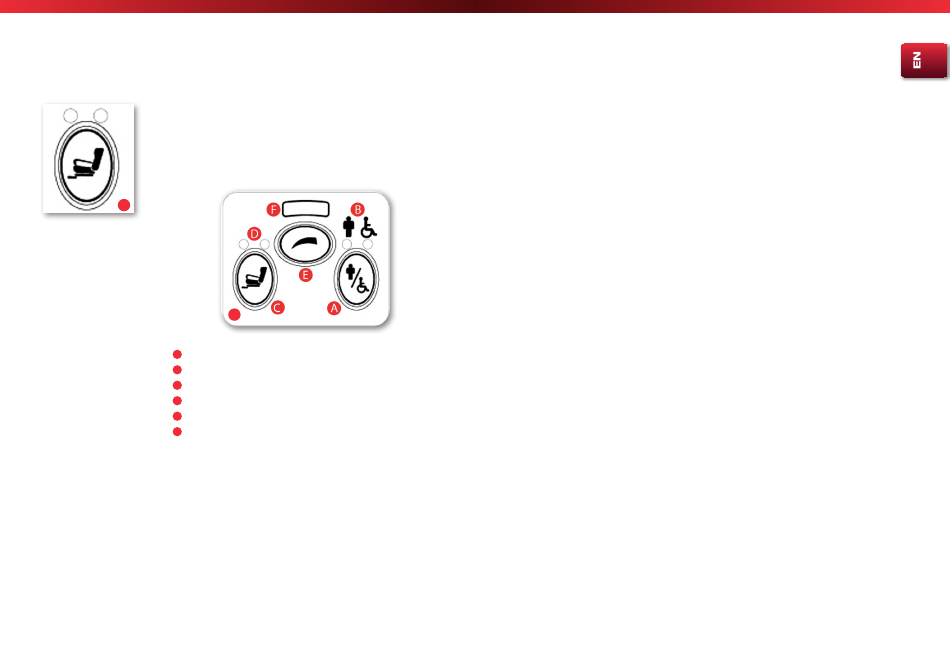

Toggle switch for operating mode
A
Operating display
B
Adjustment function button
C
Display for activated adjustment option
D
Speed level adjustment button
E
Speed level display
F
Toggle switch for operating mode
Use the toggle switch (A) to select the operating mode, whether the
wheelchair will be controlled by the attendant control unit or by the
user. The selected operating mode will be shown through the LEDs (B).
The red LED lights up when the wheelchair is being controlled by the
user. The green LED lights up when the wheelchair can be controlled
by the attendant.
90
Electric wheelchair |
Electric wheelchair |
Electric wheelchair |
Adjustment function button
All VR2 attendant control units are fitted with an adjustment function
button (C) as standard. If the VR2 control unit is not programmed with
any adjustment options, this button has no function.
However if the VR2 control unit is programmed with 1 or 2 adjustment
options, the functions for this button are described in the relevant sec-
tion below.
Wheelchairs with one adjustment option
Pressing the adjustment function button (C) once will activate the elec-
tronic adjustment options.
This is indicated by both LEDs above the adjustment function button
lighting up (D). By deflecting the joystick forwards or backwards, you
can control the adjustment direction for this channel.
To return to drive mode, either press the adjustment function button
(C) or the speed level button (E).
Wheelchairs with two adjustment options
By pressing the adjustment function button (C) the electronic adjust-
ment options are activated. By pressing the button once, the left LED
lights up, and then by deflecting the joystick forwards or backwards
you can control the adjustment direction for this channel.
Select between the two adjustment options by deflecting the joystick
to the left or right. If the other adjustment option is selected, the
relevant LED will light up. LEFT for adjustment option 1 and RIGHT
for adjustment option 2.
To return to drive mode, press the adjustment function button (C)
again or press one of the two speed level buttons. (Fig. 33).
Speed levels display
Indicates the adjustment of the speed level for the wheelchair, if the
attendant control unit is activated. There are five settings - Setting 1 is
the lowest speed and setting 5 is the highest possible speed.
