3.5.5. Electronic adjustment
options
Depending on the configuration, it is also possible to adjust the seat
angle, backrest angle or angle settings on the footrests electronically.
Please refer to Chapter 4, "Using the wheelchair" (adjustment options)
for information.
19.
Bear in mind the increased risk of pinching with
electronic adjustment of seat functions for the user,
attendant and third party.

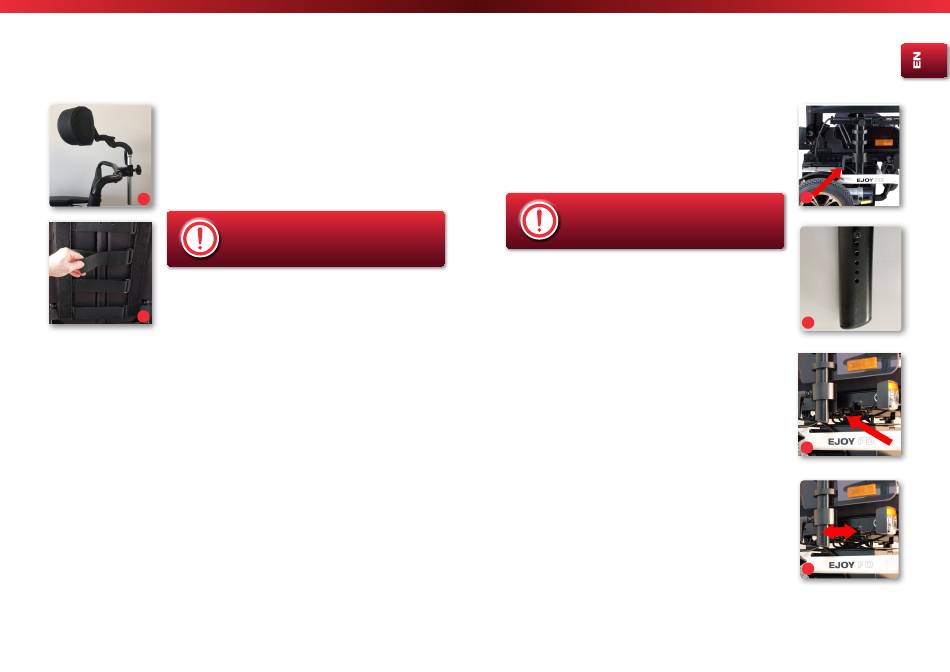

3.5.6. Headrest (optional)

20.
As an option, a headrest is available which is angle, height and depth
adjustable (Fig. 19).
• Loosen the screws on the stabilising bar
• Position the headrest at the required height
• Re-tighten the screw fixing. You can adjust the depth and angle of
the headrest using the quick-release device in the neck area of the
headrest
• Position the headrest to the required depth
• Re-tighten the screw fixing.

3.5.7. Slack in the backrest

A well-adjusted backrest will make it easier to sit for long periods of
time more comfortably and effectively reduces the risk of pressure
points. To achieve this, make sure there is sufficient slack in the pelvic
area.
80
Electric wheelchair |
Electric wheelchair |
Electric wheelchair |
• Remove the cushion support of the backrest sling.
• Loosen the hook and loop fasteners on the belt straps (Fig. 20).
• Adjust the straps in sequence, starting from the bottom.
• Put the cushion support of the backrest sling back in place.

3.5.8. Sideguards

Make sure that the wheelchair is switched off before
removing the sideguards.
The sideguards can be completely removed for side transfers. Note that
the sideguards can be removed but not completely separated without
disconnecting the cable for the control units. In addition the height of
the armrests can be adjusted. You can also adjust sidewards.
Removing sideguards
• To remove the sideguards, loosen the clamp lever screw (Fig. 21)
and pull the armrest out upwards.
• When fitting the sideguards make sure that they are pushed in to
the limit and fixed back in place.

Adjusting the height

• First take the sideguards out of the bracket.
• Remove the check screw (Fig. 22) and screw it back into the re-
quired position in the armrest.
• The lowest hole is the maximum height setting for the armrest.
Moving sidewards
• Loosen the fixing (Fig. 23) under the seat and push the sideguard
to the required position.
• Re-tighten the fixing.
Length adjustment of sideguard
Loosen the fastening screw (Fig. 24) underneath the seat.
Pull out the side part and insert it into the next guide tube. Tighten
the fastening screws firmly again.
Bischoff & Bischoff GmbH - 2023 - 05 - 23 - Revision: 3
Ejoy RD
Ejoy RD XL
Ejoy RD XXL
21.
22.
23.
24.
