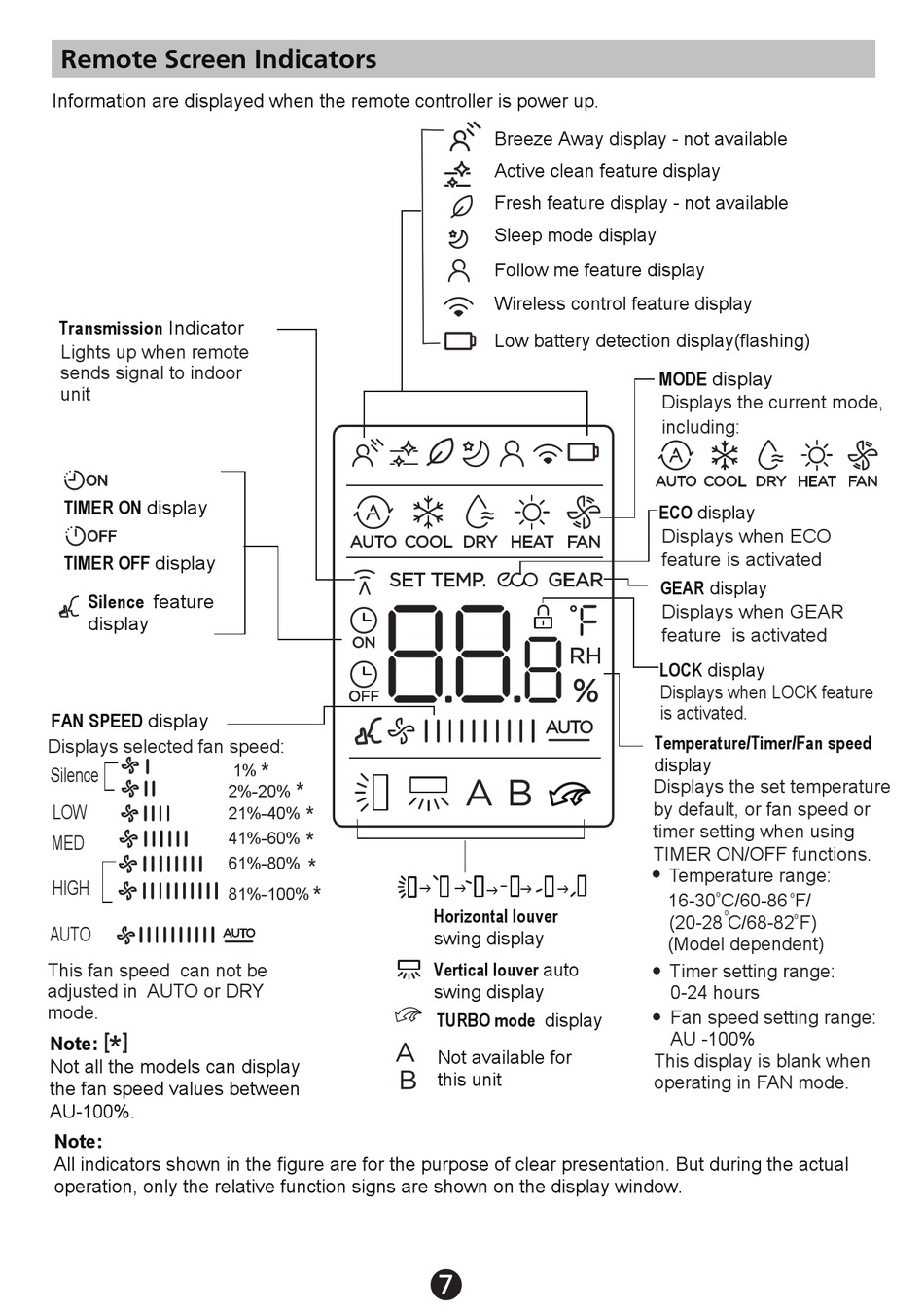

Remote Screen Indicators

Information are displayed when the remote controller is power up.
Transmission Indicator
Lights up when remote
sends signal to indoor
unit
TIMER ON display
TIMER OFF display
Silence feature
display
FAN SPEED display
Displays selected fan speed:
Silence
LOW
MED
HIGH
AUTO
This fan speed can not be
adjusted in AUTO or DRY
mode.
[ ]
*
Note:
Not all the models can display
the fan speed values between
AU-100%.
Note:
All indicators shown in the figure are for the purpose of clear presentation. But during the actual
operation, only the relative function signs are shown on the display window.
*
1%
*
2%-20%
*
21%-40%
*
41%-60%
61%-80% *
*
81%-100%
Breeze Away display - not available
Active clean feature display
Fresh feature display - not available
Sleep mode display
Follow me feature display
Wireless control feature display
Low battery detection display(flashing)
  
 
Horizontal louver
swing display
Vertical louver auto
swing display
TURBO mode display
Not available for
this unit
7
MODE display
Displays the current
including:
ECO display
Displays when ECO
feature is activated
GEAR display
Displays when GEAR
feature is activated
LOCK display
Displays when LOCK feature
is activated.
Temperature/Timer/Fan speed
display
Displays the set temperature
by default, or fan speed or
timer setting when using
TIMER ON/OFF functions.
Temperature range:
o
o
16-30 C /60-86 F /
o
o
(20-28 C/68-82 F)
(Model dependent)
Timer setting range:
0-24 hours
Fan speed setting range:
AU -100%
This display is blank when
operating in FAN mode.
mode,
