Using the Drilling Template.
- To trace the positions of the holes on the left-
hand side of the panel, align the drilling template
to the top left side of the panel using the lines
traced on the extremities as a reference.
- To trace the positions of the holes on the right-
hand side of the panel, align the drilling template
to the top right side of the panel.
- Use an appropriately sized router to mill the holes
for the two hinges, the rubber plug and the magnet.
Mounding the Parts onto the Wooden Panel (Door).
- Insert the hinges into the holes (the movable part
of the hinge must be positioned facing away from
the panel) and fasten them with the 4 type A screws.
- Insert the magnet into the top hole on the oppo-
site side of the hinges and fasten it with the two
type B screws.
- Insert the rubber plug into the bottom hole.
The panel is now ready to be mounted onto the
machine.
Mounting the Panel into the machine.
Insert the nib of the hinge (indicated by the arrow
in fig. 2) into the hole for the hinge and push the
panel towards the front of the machine. Fasten
the two hinges with the type D screws.

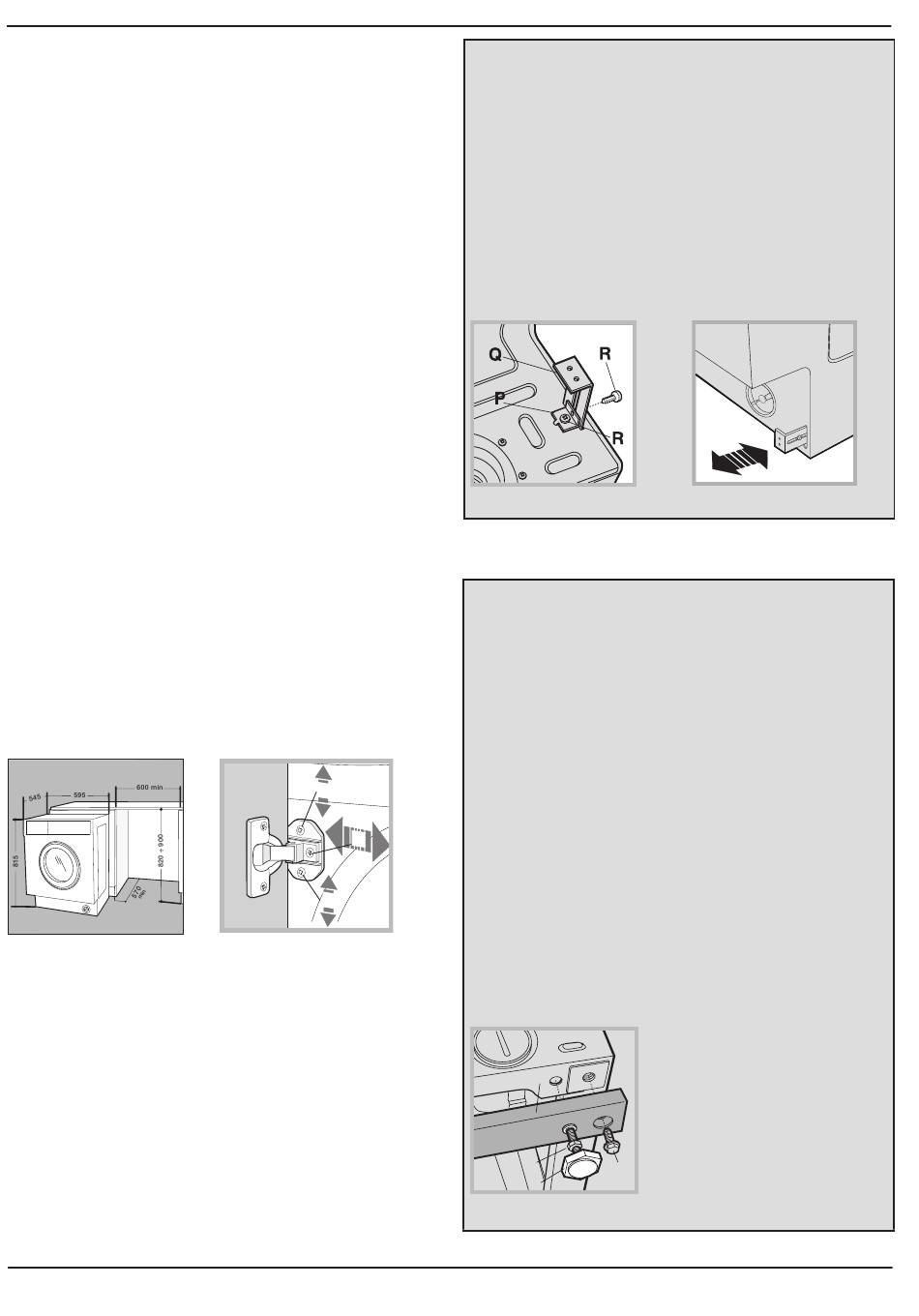

Inserting the machine into the Cabinet.
- Push the machine into the opening, aligning it
with the cabinets (fig. 6).
- Regulate the adjustable feet to raise the machine
to the appropriate height.
- To adjust the position of the wooden panel in
both the vertical and horizontal directions, use the
C and D screws, as shown in fig. 7.
Important: close the lower part of the appliance front
and sides in case machine is installed at the end of set
of modular cabinets, by ensuring that the plinth rests
against the floor.
Fig. 6
Adjusting the appliance height.
The height of the appliance can be adjusted (from
815 mm to 835 mm), by turning the 4 feet.
Should you require the appliance to be placed higher
than the above height, the relevant kit available at
the Technical Assistance Service is required, to raise
it to up to 870 mm.
C
D
C
Fig. 7
Plinth guide fastening KIT, (optional)
(code C00853410)
Available at the Technical Assistance Service.
If the machine is installed at the end of a set of
modular cabinets, mount either one or both of
the guides for the base molding (as shown in fig.
8). Adjust them for depth based on the position
of the base molding, and, if necessary, fasten the
base to the guides (fig. 9).
This is how to assemble the plinth guide (fig. 8):
Fasten angle P using screw R, insert plinth guide
Q into the special slot and once it is in the desired
position, lock it in place using angle P and screw
R.
Fig. 8
Height adjustment KIT, (optional)
(code C00853411)
Available at the Technical Assistance Service.
Made up of:
the two crossbars (G); the 4 feet (H); the 4 screws
(I); the 4 nuts (L) then perform the following
operations:
Lay down machine to back side, make sure, to do
not damage drain hose and power supply cable.
remove the 4 original feet, place a crossbar G at
the front of the appliance, fastening it in place
using screws I (screwing them in where the origi-
nal feet were) then insert the new feet H.
Repeat the same operation at the back of the
appliance.
Now adjust feet H to raise or lower the appliance
from 835 mm to 870 mm.
Once you have reached the desired height, lock
nuts L onto crossbar G.
To adjust the appliance to a height between 870
mm and 900 mm, you need to mount strip M,
adjusting feet H to the required height.
G
L
I
H
Fig. 10
Fig. 9
