Gutta 4295103-4 Montageanleitung Seite 11

Premium terrassendach freistehend

Werbung

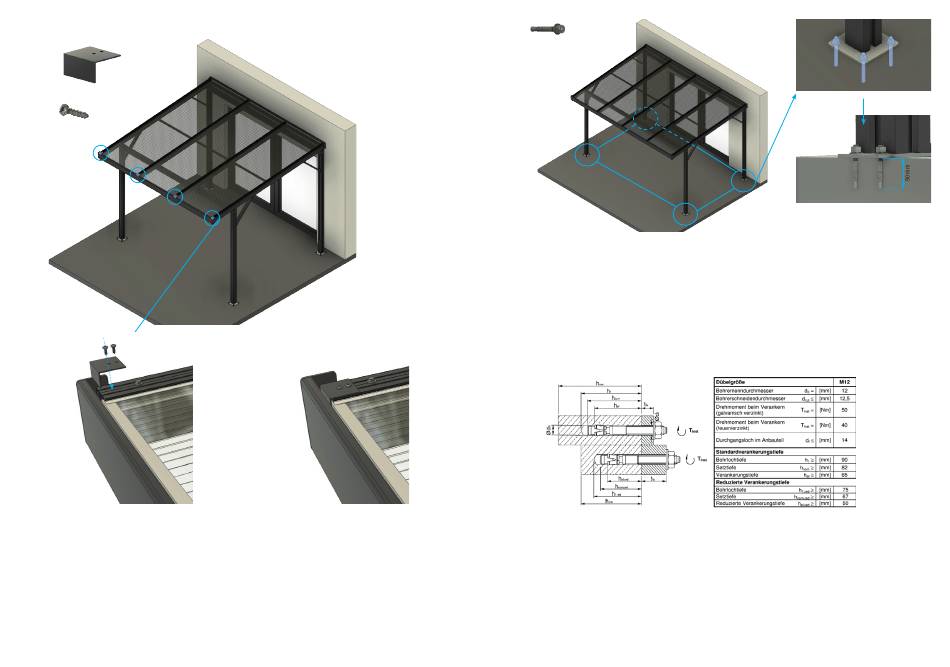

16.
Z.29
3m = 4x
4m = 5x
5m = 6x
Z.5.1
3m = 8x
4m = 10x
5m = 12x
20
20
17.
Z.22 16x
Die Betonanker sind ausschließlich zur Befestigung der Bodenplatten an den vorgesehenen Fundamentpunkten zu verwenden.
Die in der Tabelle stehenden Montagehinweise müssen eingehalten werden. Bei unsachgemäßer Handhabung kann kein Garan-
tieanspruch geltend gemacht werden.
The concrete anchors are to be used exclusively for fixing the floor plates to the intended foundation points. The installation inst-
ructions in the table must be observed. No warranty claim can be made in case of improper handling.
Les ancrages en béton doivent être utilisés exclusivement pour fixer les plaques de sol aux points de fondation prévus. Les inst-
ructions d'installation figurant dans le tableau doivent être respectées. Aucune réclamation de garantie ne peut être faite en cas
de manipulation incorrecte.
Bohrloch | Borehole | Trou de forage: d0 = 12 mm
Bohrlochtiefe | Borehole depth | Profondeur du trou de forage:
h1 > 90 mm
Drehmoment | Torque | Couple:
Tinst = 50 Nm
21
21
