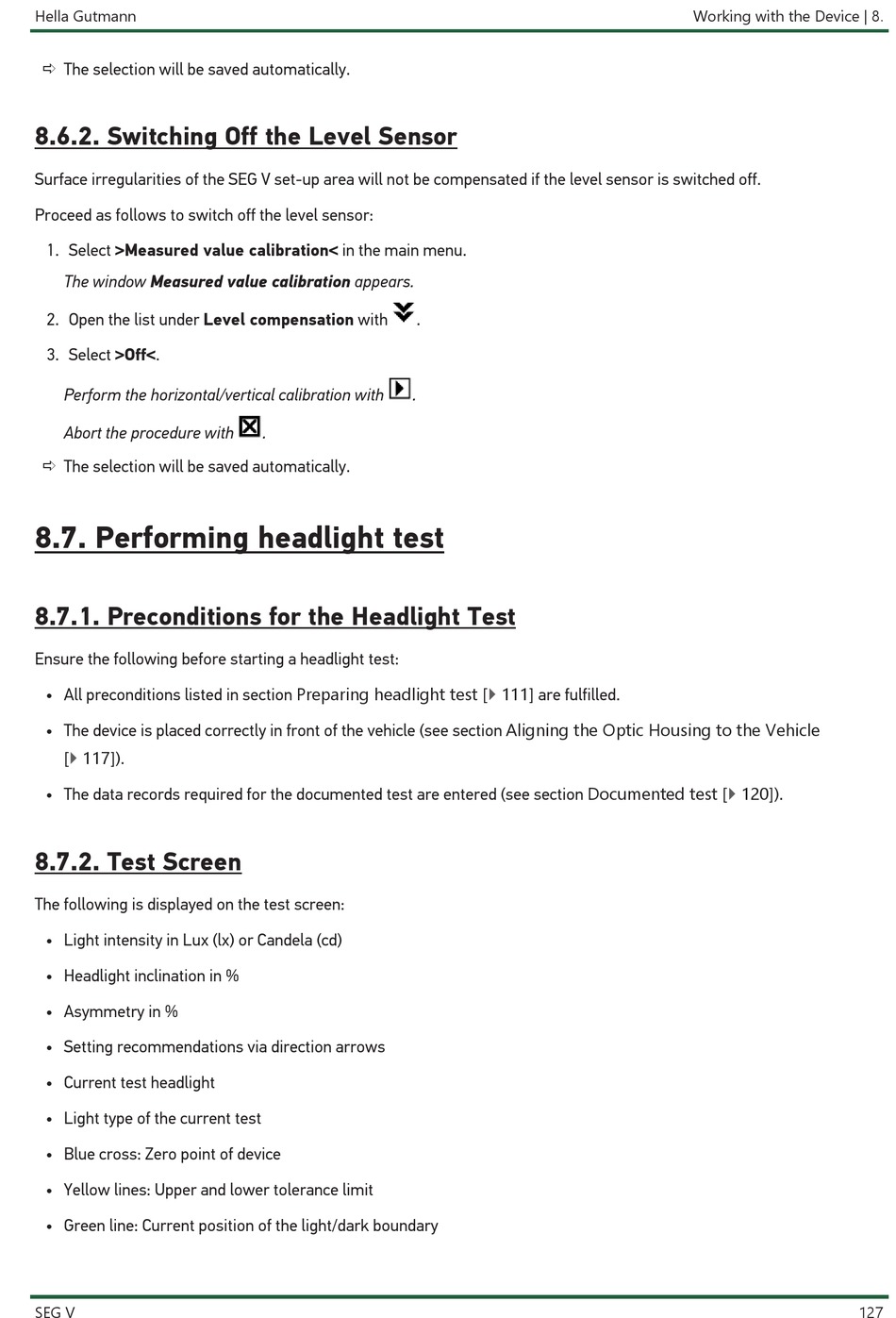

ð The selection will be saved automatically.

8.6.2. Switching Off the Level Sensor

Surface irregularities of the SEG V set-up area will not be compensated if the level sensor is switched off.
Proceed as follows to switch off the level sensor:
1. Select >Measured value calibration< in the main menu.
The window Measured value calibration appears.
2. Open the list under Level compensation with
3. Select >Off<.
Perform the horizontal/vertical calibration with
Abort the procedure with
ð The selection will be saved automatically.

8.7. Performing headlight test

8.7.1. Preconditions for the Headlight Test

Ensure the following before starting a headlight test:
• All preconditions listed in section Preparing headlight test [} 111] are fulfilled.
• The device is placed correctly in front of the vehicle (see section Aligning the Optic Housing to the Vehicle
[} 117]).
• The data records required for the documented test are entered (see section Documented test [} 120]).

8.7.2. Test Screen

The following is displayed on the test screen:
• Light intensity in Lux (lx) or Candela (cd)
• Headlight inclination in %
• Asymmetry in %
• Setting recommendations via direction arrows
• Current test headlight
• Light type of the current test
• Blue cross: Zero point of device
• Yellow lines: Upper and lower tolerance limit
• Green line: Current position of the light/dark boundary
