EN
TECHNICAL DATA
Parameter
Parameter value
description
Product name
ALUMINIUM ROLLING RAMP
MSW-
MSW-
MSW-
Model
ARL-01
ARL -02
ARL-03
Dimensions of
the disassembled
1665
1050
1965
ramp (Width x
x660
x762
x762
Depth) [mm]
Dimensions of the
Ø460
Ø370
Ø535
assembled ramp
x685
x785
x762
[mm]
Weight [kg]
13,1
9
17
Maximum load
500
[kg]
Safe load [kg]
350
Product name
ALUMINIUM ROLLING RAMP
MSW-
MSW-
MSW-
Model
ARL-04
-ARL-05
ARL-06
Dimensions of
the disassembled
1050x
1965x
3000
ramp (Width x
914
914
x914
Depth) [mm]
Dimensions of the
Ø370
Ø535
Ø635
assembled ramp
x940
x914
x914
[mm]
Weight [kg]
10
19
31,5
Maximum load
500
[kg]
Safe load [kg]
350
1. GENERAL DESCRIPTION
The user manual is designed to assist in the safe and
trouble-free use of the device. The product is designed
and manufactured in accordance with strict technical
guidelines,
using
state-of-the-art
technologies
components. Additionally, it is produced in compliance
with the most stringent quality standards.
DO NOT USE THE DEVICE UNLESS YOU HAVE
THOROUGHLY READ AND UNDERSTOOD THIS
USER MANUAL.
To increase the product life of the device and to ensure
trouble-free operation, use it in accordance with this user
manual and regularly perform maintenance tasks. The
technical data and specifications in this user manual are
up to date. The manufacturer reserves the right to make
changes associated with quality improvement. The device
is designed to reduce noise emission risks to a minimum,
taking into account technological progress and noise
reduction opportunities.
6
U S E R M A N U A L
LEGEND
Read instructions before use.
WARNING! or CAUTION! or REMEMBER!
Applicable to the given situation. (general
warning sign)
ATTENTION! Hand crush hazard!
CAUTION! Sharp elements!
PLEASE NOTE! Drawings in this manual are for
illustration purposes only and in some details may
differ from the actual product.
The original operation manual is written in German. Other
language versions are translations from the German.
2. USAGE SAFETY
ATTENTION! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in serious injury or even
death.
The terms "device" or "product" are used in the warnings
and instructions to refer to ALUMINIUM ROLLING RAMP.
2.1. SAFETY IN THE WORKPLACE
a)
Make sure the workplace is clean and well lit. A messy
or poorly lit workplace may lead to accidents. Try
to think ahead, observe what is going on and use
common sense when working with the device.
b)
If you are unsure about whether the product is
operating correctly or if you find damage, please
contact the manufacturer's service centre.
c)
Only the manufacturer's service centre may make
repairs to the product. Do not attempt to make repairs
yourself!
d)
Regularly inspect the condition of the safety labels. If
the labels are illegible, they must be replaced.
e)
Please keep this manual available for future reference.
If this device is passed on to a third party, the manual
must be passed on with it.
f)
Keep packaging elements and small assembly parts in
a place not available to children.
g)
If this device is used together with another equipment,
the remaining instructions for use shall also be
followed.
REMEMBER! When using the device, protect
and
children and other bystanders.
2.2. PERSONAL SAFETY
a)
Do not use the device when tired, ill or under the
influence of alcohol, narcotics or medication which
can significantly impair the ability to operate the
device.
b)
The device is not designed to be handled by persons
(including children) with limited mental and sensory
functions or persons lacking relevant experience and/
or knowledge unless they are supervised by a person
responsible for their safety or they have received
instruction on how to operate the device.
c)
The device can be handled only by physically fit
persons who are capable of handling it, properly
trained, familiar with this manual and trained within
the scope of occupational health and safety.
d)
The device is not a toy. Children must be supervised
to ensure that they do not play with the device.
Rev. 19.04.2022
2.3. SAFE DEVICE USE
a)
When not in use, store in a safe place, away from
children and people not familiar with the device who
have not read the user manual. The device may pose
a hazard in the hands of inexperienced users.
b)
Keep the device in perfect technical condition. Before
each use check for general damage and especially
check for cracked parts or elements and for any other
conditions which may impact the safe operation of
the device. If damage is discovered, hand over the
device for repair before use.
c)
Device repair or maintenance should be carried out by
qualified persons, only using original spare parts. This
will ensure safe use.
d)
To ensure the operational integrity of the device, do
not remove factory-fitted guards and do not loosen
any screws.
e)
When transporting and handling the device between
the warehouse and the destination, observe the
occupational health and safety principles for manual
transport operations which apply in the country
where the device will be used.
f)
Clean the device regularly to prevent stubborn grime
from accumulating.
g)
The device is not a toy. Cleaning and maintenance may
not be carried out by children without supervision by
an adult person.
h)
It is forbidden to interfere with the structure of
the device in order to change its parameters or
construction.
i)
Keep the device away from sources of fire and heat.
j)
Do not overload the device.
k)
Do not overload the machine with a load exceeding
the maximum admissible load.
ATTENTION! Despite the safe design of the device
and its protective features, and despite the use of
additional elements protecting the operator, there
is still a slight risk of accident or injury when using
the device. Stay alert and use common sense when
using the device.
3. USE GUIDELINES
The product can be used, among others, as a ramp for
wheelchairs, for loading and unloading trucks, or as a
platform facilitating boarding a ship/boat. The product can
be used as a driveway wherever there are stairs.
The user is liable for any damage resulting from
unintended use of the device.

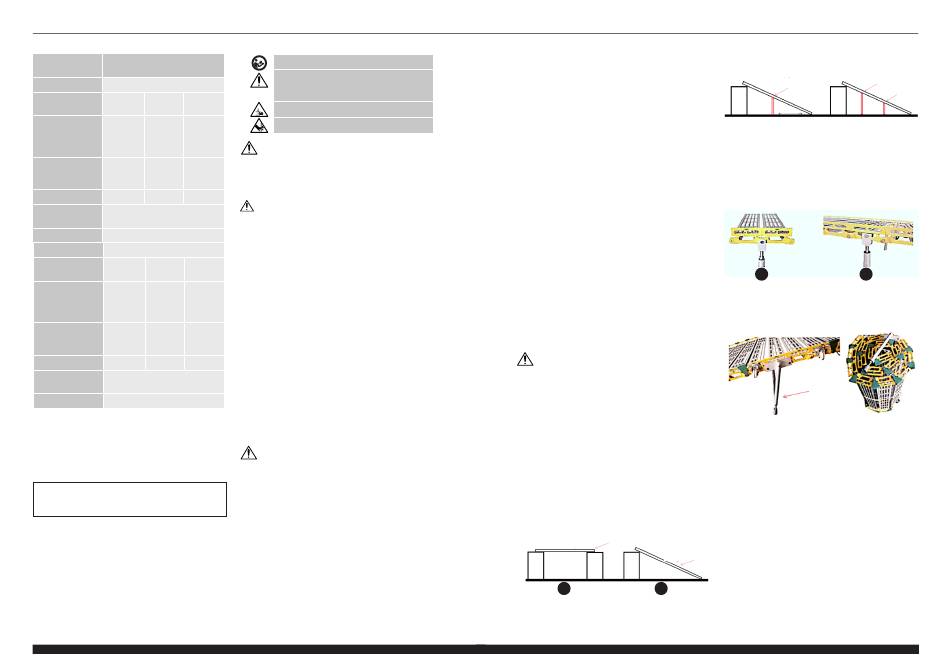

3.1. DEVICE USE
1.
The maximum load capacity of the ramp with a length
of 2 meters is 500 kg (picture 1). The safe load capacity
is 350 kg (picture 2). Do not use a load greater than
350 kg, as this may deform the product and affect its
safety.
2m
max. 500 kg
350 kg
2m
1
2
Rev. 19.04.2022
EN
2.
When the ramp is more than 2,5 m long, use min.
two brackets. It is best to install them approx. 1,5–2 m
from the edge of the ramp near the ground.
L=3m
L=6m
1,5-2m
3.
There are two methods of mounting the brackets. In
the case of permanent installation of the ramp, e.g. in
municipal buildings, the bracket should be mounted
as shown on the picture 1. This will make the ramp
stable and will not move. For temporary installation,
the bracket should be mounted as shown on the
picture 2. This method of installation does not provide
the same stability as in the case 1, but the bracket can
be easily removed.
1
2
4.
The ramp has an additional, factory-installed bracket
that does not require assembly or disassembly. It
should be used when the ramp is installed at the
height of 65–100 cm and its length is 3–4 m.
5.
Regularly check and tighten nuts as necessary to
prevent loss or twisting. If any parts or fasteners are
deformed due to an overload or an impact, please
stop operation and replace the deformed parts or
fasteners in reasonable time.
6.
Joints between the steps of the ramp should not be
aligned.
7.
When using the ramp, use mounting plates. They
prevent the ramp from sliding off the platform
and moving sideways. Mounting plates should be
mounted to the ramp and to the ground with screws.
7
