Filament insertion

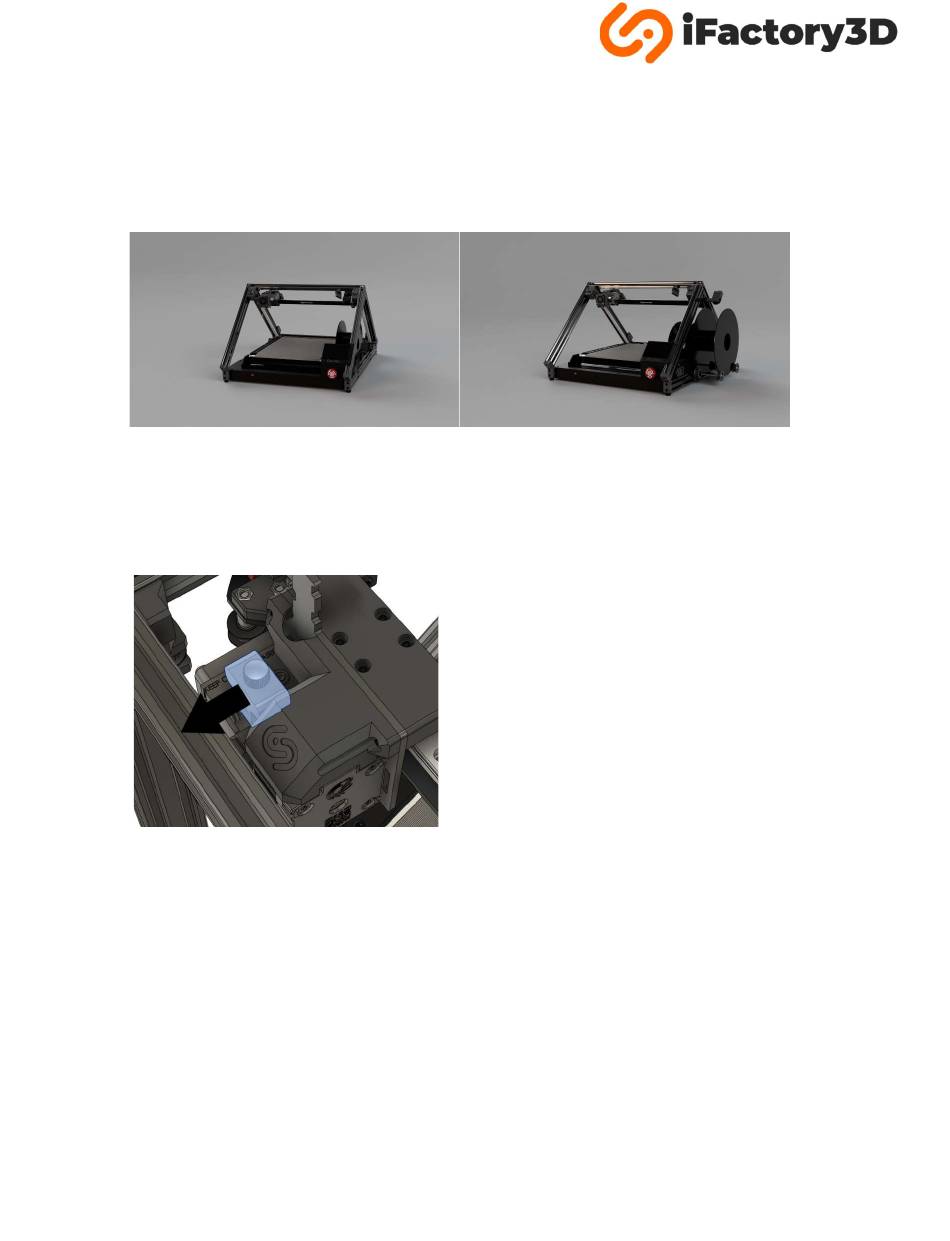

Select the spool size you want to use.
Spools weighing 1 kg and smaller are supported within the machine dimensions, for spools
weighing up to 2.2 kg, the spool holder and filament sensor can be mounted by turning and
reattaching them to the outside:
Insert the end of the filament into the filament runout sensor.
Make sure that the diameter of the tip of the filament is ≤ 1.75 mm.
Push the filament into the bowden tube until you notice resistance.
Now pull the lever on the printhead to the front:
Push the filament further.
When releasing the lever, the filament must be grabbed by the gear of the extruder.
Heat up the nozzle (see software instructions).
Extrude 50 mm of filament slowly (< 5 mm/s) via touchscreen or web interface.
To remove filament, perform the steps in opposite order. Start with heating the nozzle to the
melting point of your material.
