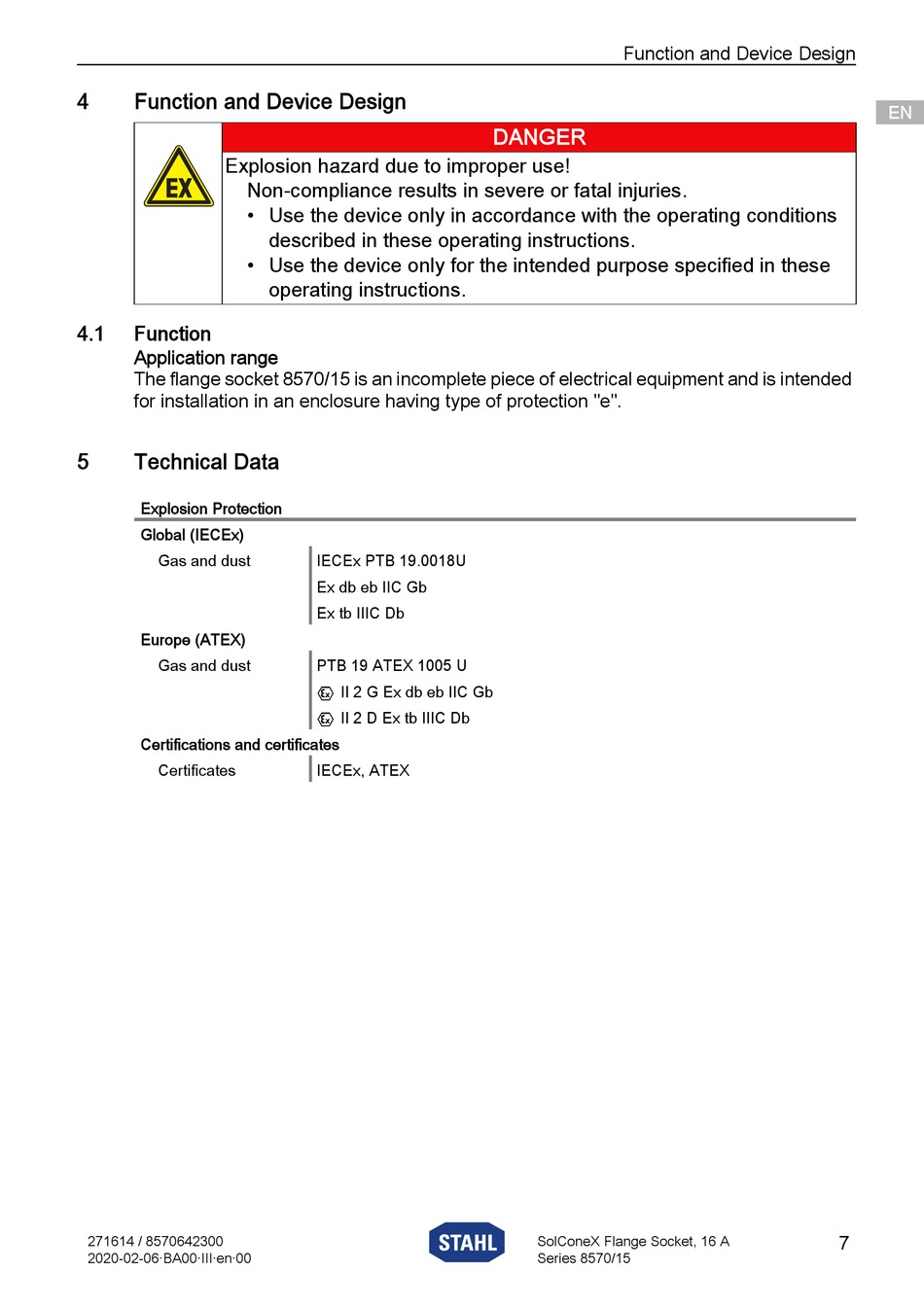

Function And Device Design; Function; Technical Data - Stahl SolConeX 8570/15-3 Serie Betriebsanleitung

4

Function and Device Design

Explosion hazard due to improper use!
Non-compliance results in severe or fatal injuries.
• Use the device only in accordance with the operating conditions
• Use the device only for the intended purpose specified in these
4.1

Function

Application range
The flange socket 8570/15 is an incomplete piece of electrical equipment and is intended
for installation in an enclosure having type of protection "e".
5

Technical Data

Explosion Protection
Global (IECEx)
Gas and dust
Europe (ATEX)
Gas and dust
Certifications and certificates
Certificates
271614 / 8570642300
2020-02-06·BA00·III·en·00
described in these operating instructions.
operating instructions.
IECEx PTB 19.0018U
Ex db eb IIC Gb
Ex tb IIIC Db
PTB 19 ATEX 1005 U
E II 2 G Ex db eb IIC Gb
E II 2 D Ex tb IIIC Db
IECEx, ATEX
Function and Device Design
DANGER
SolConeX Flange Socket, 16 A
Series 8570/15
