Installation

3.1 Voltage supply
Receivers of the REX series have a wide supply voltage range of 3.5-
8.4V. So you can optimize the voltage according to the supply
voltage of the connected servos (standard or HV).
- if the receiver has MPX connector with cables, use it for power
supply as priority
- if the receiver has inputs marked as BATT, use it for power supply as
a priority

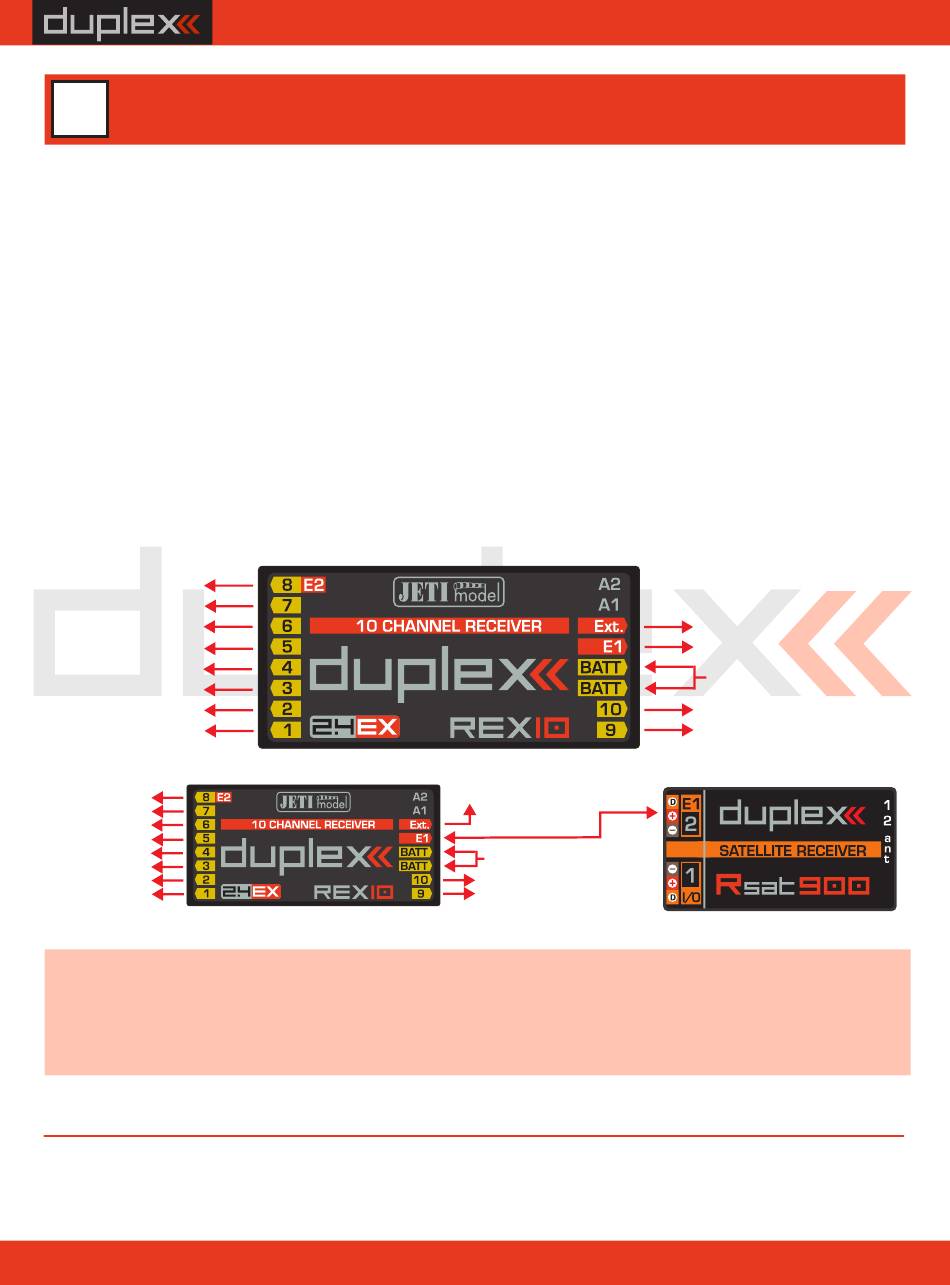

Connection examples:
servo/sensor
servo
servo
servo
servo
servo
servo
servo
servo/sensor
servo
servo
servo
servo
servo
servo
servo
Note:
- the connection method of the satellite receiver RSAT900 and
RSAT900NG are identical
