Scattered light smoke detector MSD 523
For connection to smoke and heat extraction systems with two-wire system

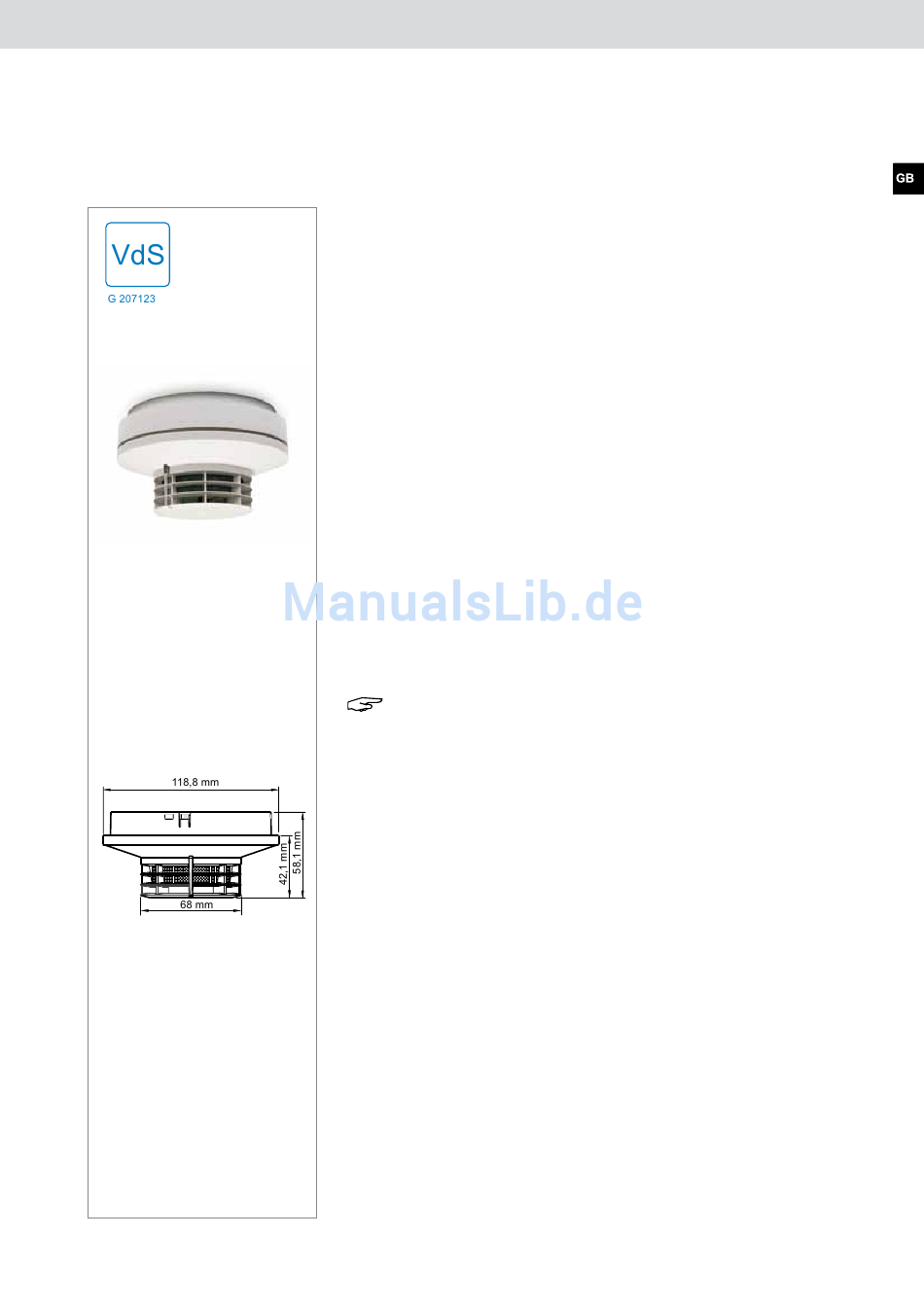

Smoke detector with base
Please keep these operating instructions for future reference and maintenance. Subject to technical modifications. Diagram is not binding.
03/24999571

Features

The scattered light smoke detector MSD 523 with digital signal processing and
intelligent logic has very good response behaviour with very few false alarms.
The MSD 523 is designed for connection to conventional control panels
evaluating a rise in current.

Special features

• digital signal processing
• alarm threshold tracking
• temperature-aided smoke evaluation
• signature alarm for smoke
• alarm filter to reduce the number of false alarms
• backwardly compatible with the SSD-521 smoke detector series

Revision / Maintenance

Note: The MSD 523 has an alarm filter to prevent false alarms.
To check out the smoke detector the detector can be set into the inspection
mode. In this operating mode a curtailed alarm filter function can be activated.
For this purpose the operating voltage must be switched off for a minimum of
10 seconds, or the reset switch must be depressed on the SHE control panel
unit. The alarm filter is then non-functional for 17 minutes, and the smoke
detector can be checked out with the test gas cleared by STG-BEIKIRCH.
After this period of time has elapsed the alarm filter is automatically
reactivated.
Scattered light smoke detector MSD 523
7
