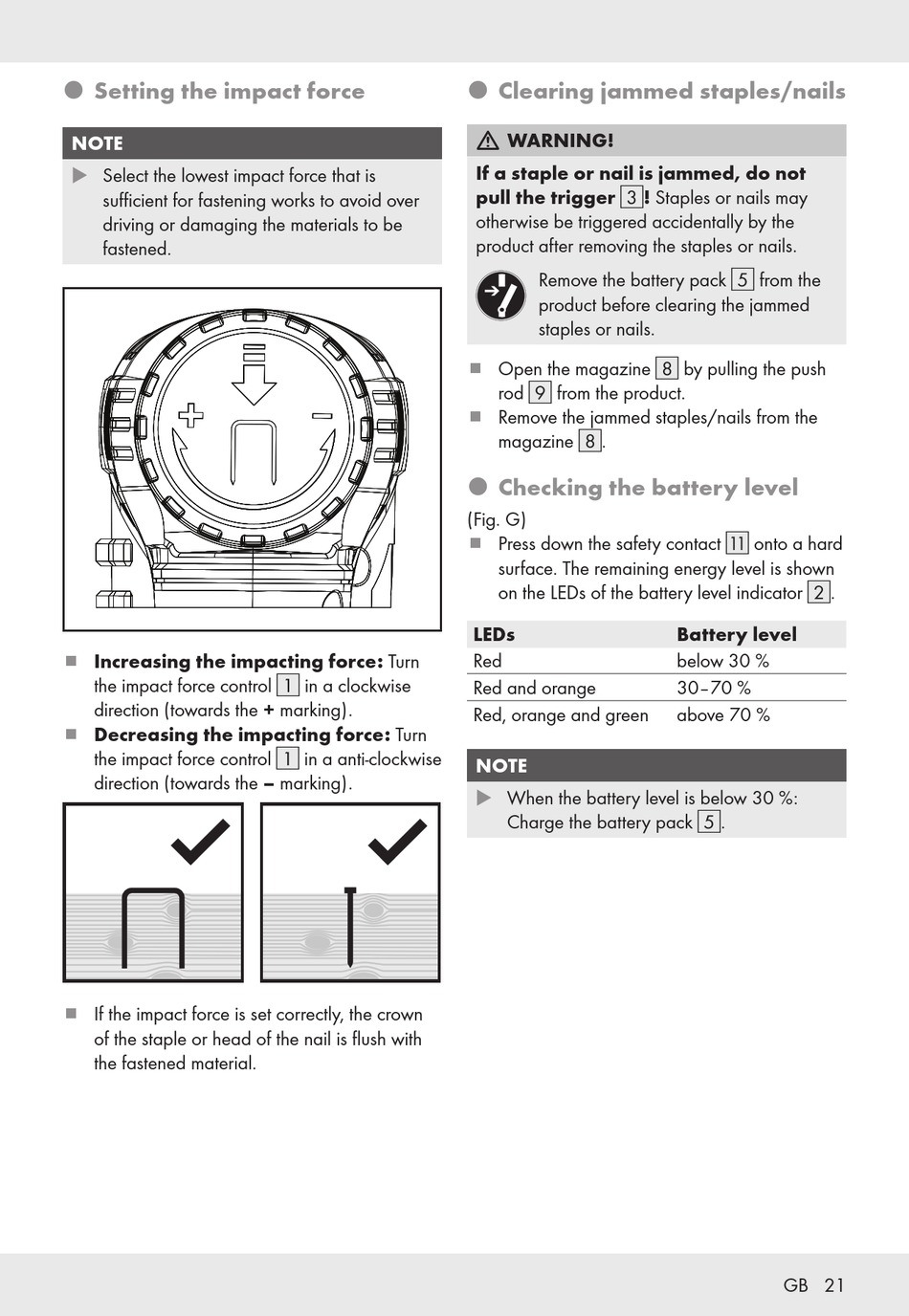

˜ Setting the impact force
NOTE
Select the lowest impact force that is
u
sufficient for fastening works to avoid over
driving or damaging the materials to be
fastened.
Increasing the impacting force: Turn
the impact force control
direction (towards the + marking).
Decreasing the impacting force: Turn
the impact force control
direction (towards the – marking).
If the impact force is set correctly, the crown
of the staple or head of the nail is flush with
the fastened material.
in a clockwise
1 ] [
in a anti-clockwise
1 ] [
˜ Clearing jammed staples/nails
m WARNING!
If a staple or nail is jammed, do not
pull the trigger
3 ] [
otherwise be triggered accidentally by the
product after removing the staples or nails.
Remove the battery pack
product before clearing the jammed
staples or nails.
Open the magazine
rod from the product.
9 ] [
Remove the jammed staples/nails from the
magazine .
8 ] [
˜ Checking the battery level
(Fig. G)
Press down the safety contact
surface. The remaining energy level is shown
on the LEDs of the battery level indicator
LEDs
Red
Red and orange
Red, orange and green
NOTE
When the battery level is below 30 %:
u
Charge the battery pack
! Staples or nails may
from the
[ 5 ]
by pulling the push
8 ] [
onto a hard
[ ]
2 ] [
Battery level
below 30 %
30–70 %
above 70 %
.
[ 5 ]
