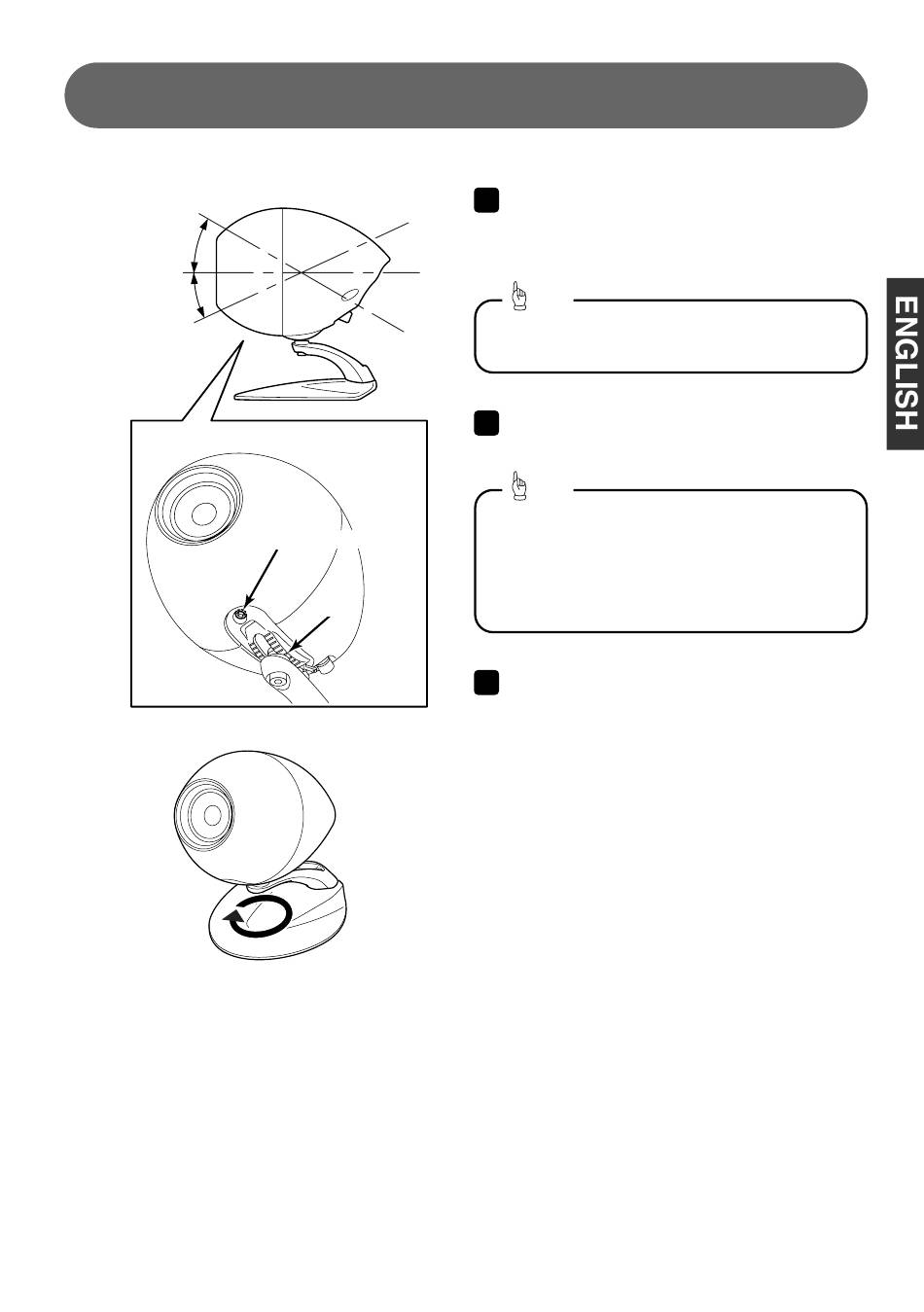

Adjusting the speaker angle

30˚
25˚
Angle adjustment bolt
Scale
360˚ rotation
1
Use the Allen key which is supplied with the
speaker to loosen the angle adjustment bolt
underneath the speaker.
Tip
The speaker is heavy, so hold it with your hand
when adjusting the angle.
2
Set the speaker to the desired angle.
Tip
The vertical angle of the speaker can be adjusted
25° downward and 30° upward from the horizontal.
If the speaker is installed to a ceiling or wall, refer to
step 6 for the vertical angle adjustment range. The
horizontal angle adjustment range is 360°.
3
Securely tighten the angle adjustment bolt.
- 13 -
