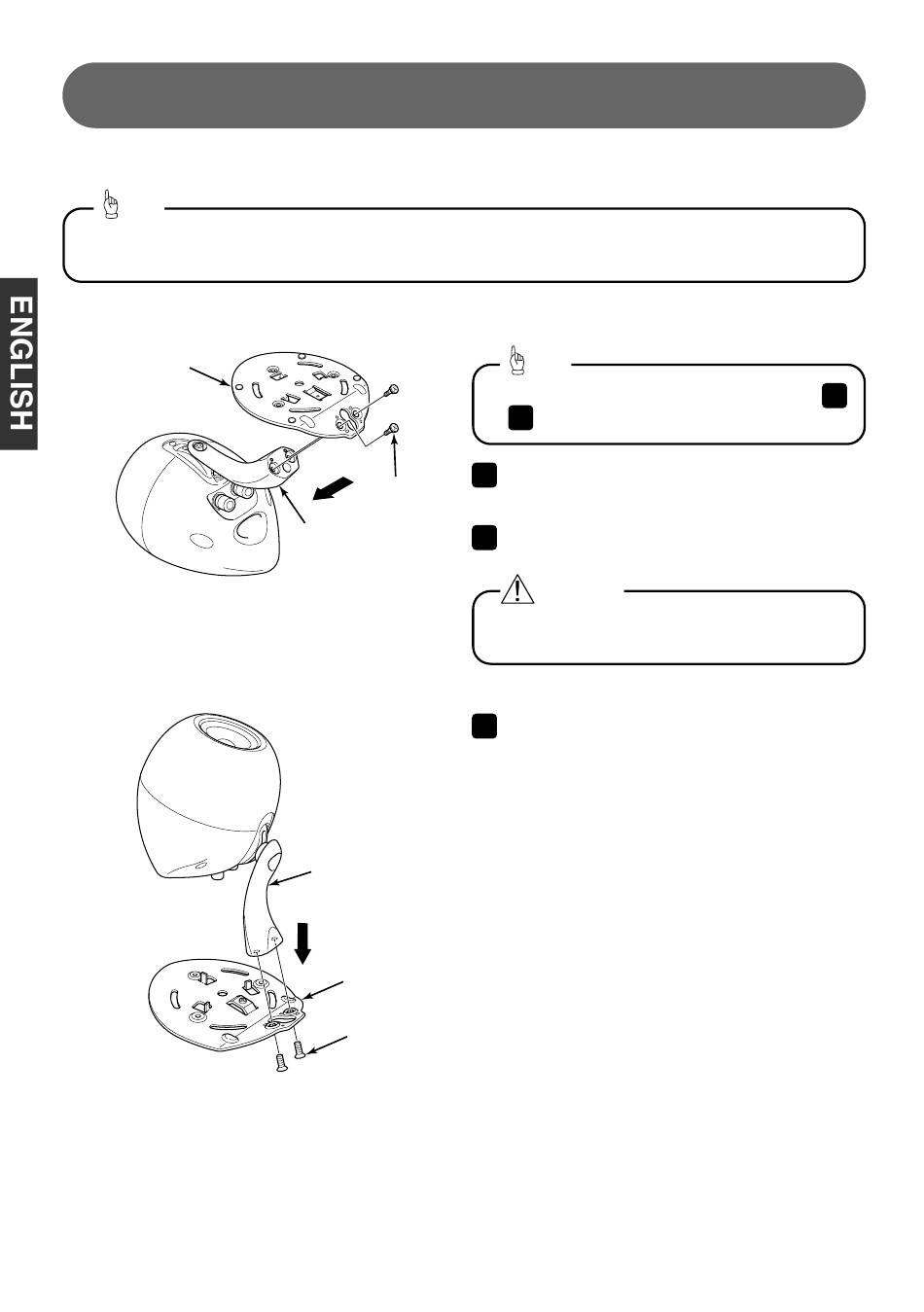

Adjusting the speaker base and speaker neck assembly positions

Tip
The TD307 II speaker can be installed in a variety of layouts by changing the way the speaker base and
speaker neck are installed.
Speaker base
Screws x2
Speaker neck
Speaker neck
Speaker base
Screws x2
- 12 -
Tip
When disassembling the speaker, refer to steps
3
to in "Installing the speaker" on page 7.
1
Remove the screws which are securing the
speaker neck to the speaker base.
2
Remove the speaker neck from the speaker base.
Caution
The speaker is heavy, so use care when removing
it.
3
Change the direction of the speaker neck and
install it to the speaker base.
1
