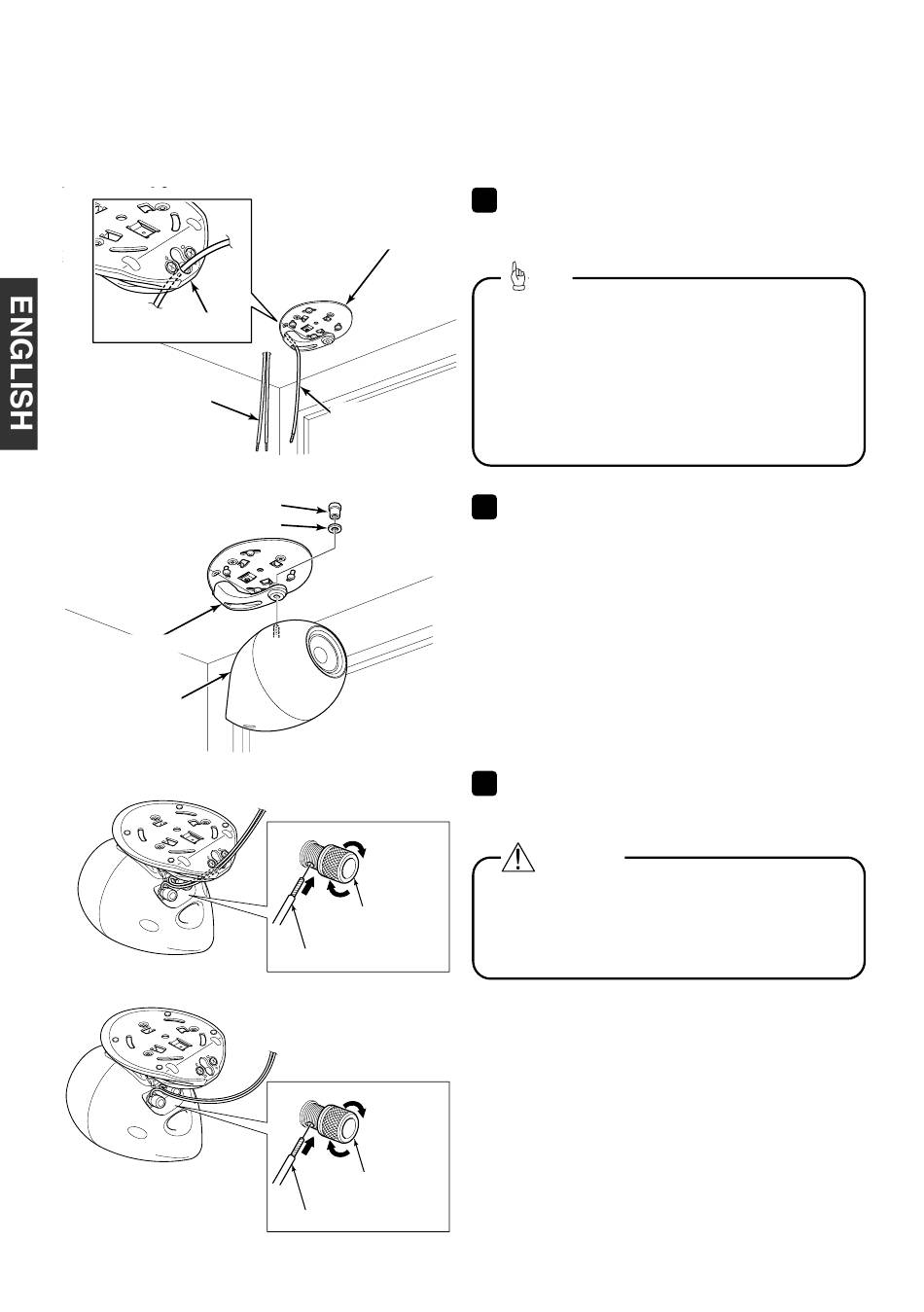

Speaker base
Speaker wire
(7 mm diameter or
more)
Hexagonal nut
Washer
Speaker neck
Speaker unit
For diameter of less than 7 mm
7 mm diameter or more
Speaker base
Speaker wire
(for diameter of
less than 7 mm)
Speaker input
terminals
Speaker wire
Speaker input
terminals
Speaker wire
- 10 -
10
Route the speaker wires.
Tip
• To make it easier to connect the speaker wires to
the speaker, leave about 8 inches (20 cm) of
speaker wire hanging out.
• The speaker wires can be passed through the
speaker base and the speaker neck which will
improve the outer appearance of the speaker. (for
diameter of less than 7 mm)
11
Securely install the speaker neck to the speaker
unit.
12
Connect the speaker wires to the speaker input
terminals.
Caution
When connecting the speaker wires, insert the ends
of the speaker wires correctly so that they do not
touch neighboring terminals, otherwise it may cause
short-circuits.
