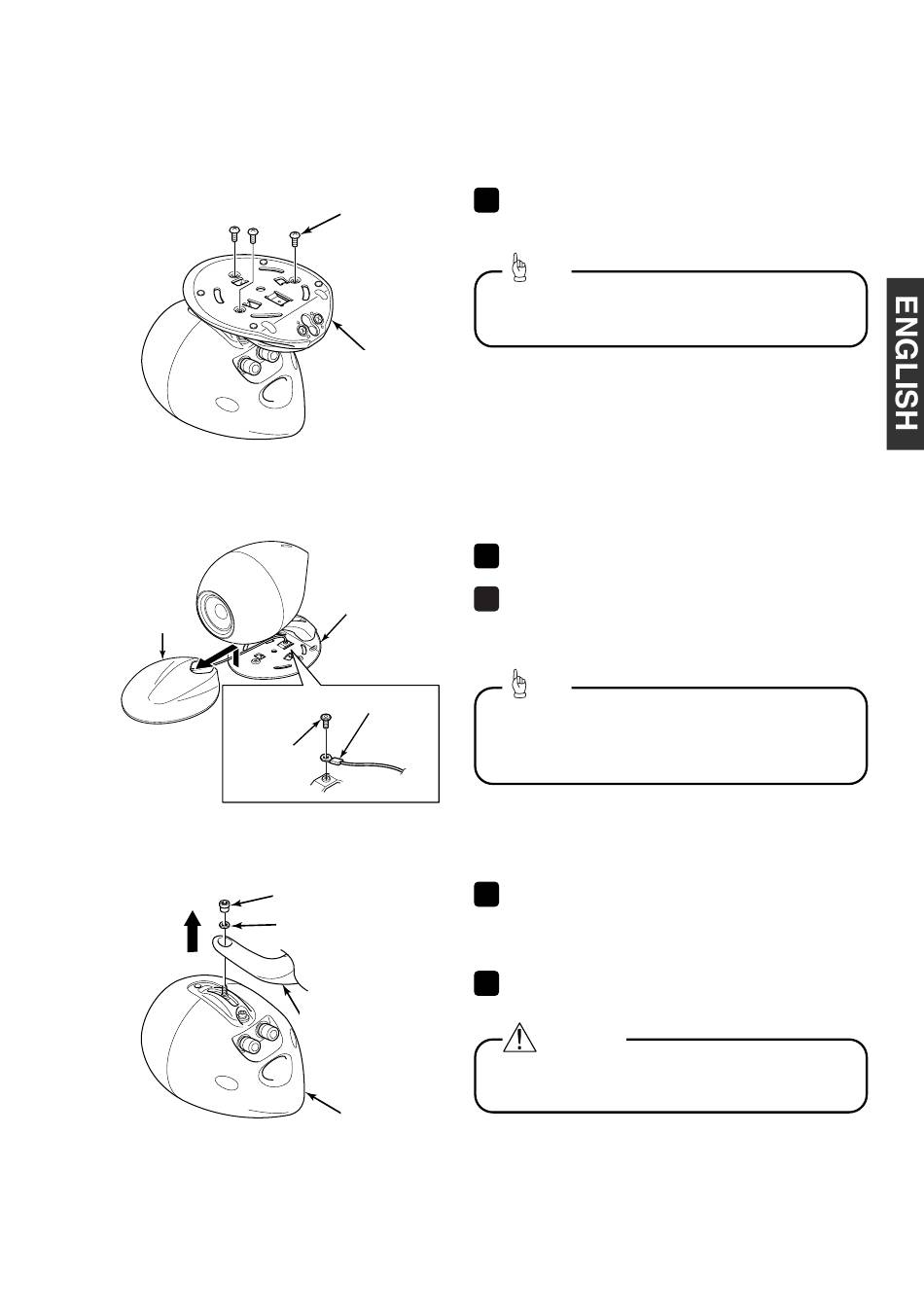

Base cover
Base cover drop-prevention wire
Hexagon
head screw
Screws x3
Speaker base
Speaker base
Hexagonal nut
Washer
Speaker neck
Speaker unit
- 7 -
1
Remove the screws from the bottom of the speaker
base.
Tip
The screws which are removed will not be used.
Give them to the customer to keep safely.
2
Remove the base cover.
3
Remove the hexagon head screw which is used for
securing the base cover drop-prevention wire from
the speaker base.
Tip
The hexagon head screw which is removed will be
used later. Be careful not to lose the hexagon head
screw after removing it.
4
Remove the hexagonal nut and washer which are
securing the speaker unit and speaker neck
together.
5
Remove the speaker neck from the speaker unit.
Caution
The speaker unit is heavy, so use care when
removing it.
