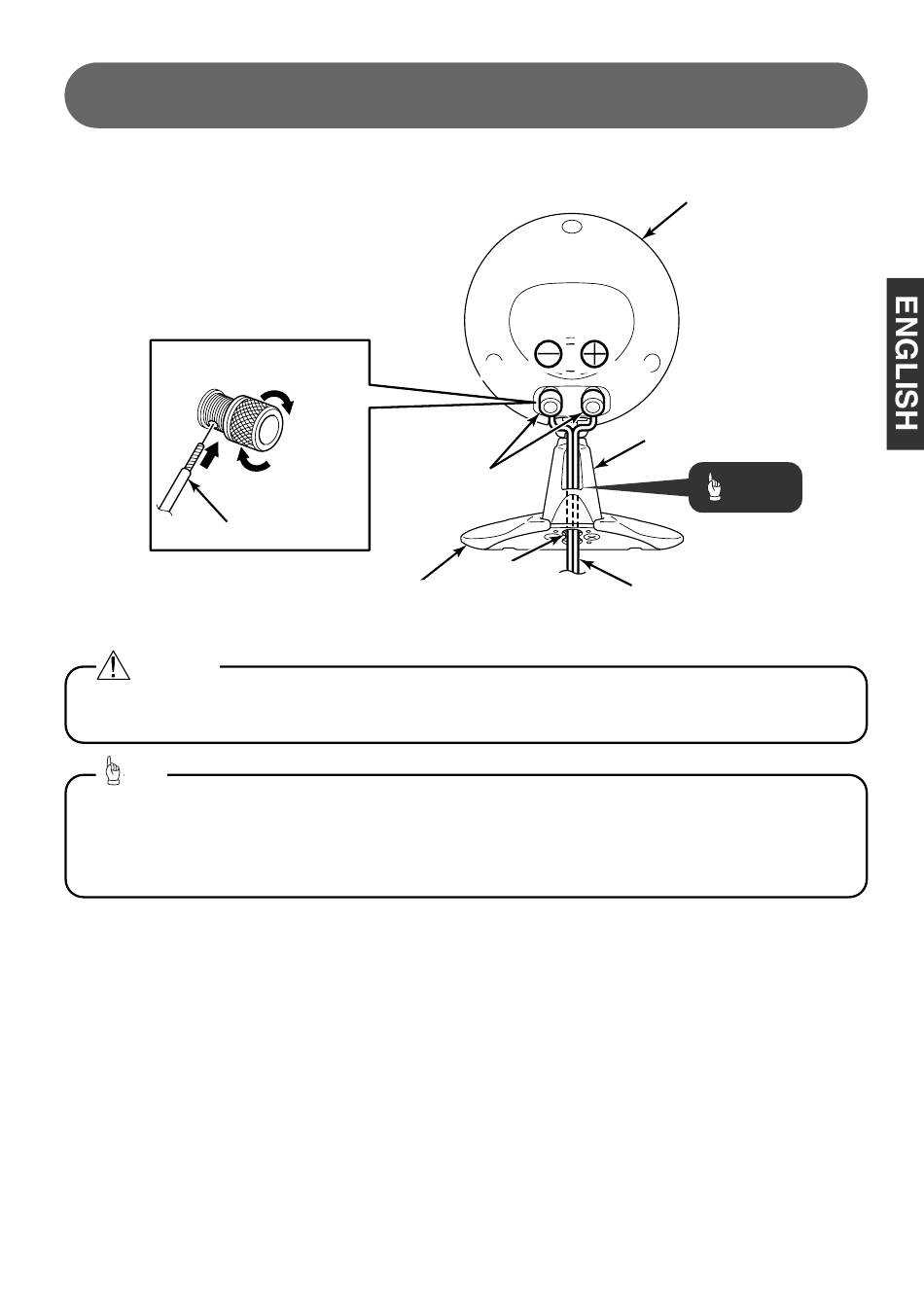

Part names and connections

Speaker wire
Caution
When connecting the speaker wires, insert the ends of the speaker wires correctly so that they do not touch
neighboring terminals, otherwise it may cause short-circuits.
Tip
If the speaker wires are routed through the wire holes in the speaker base and speaker neck, they will not easily
visible from outside which will improve the outer appearance of the speaker. (For speaker wires with a diameter
of less than 7 mm) If the diameter of the speaker wires is 7 mm or more, the wires will not pass through the
speaker neck and so you should route them outside the neck.
(Black)
Speaker input terminals
Wire hole
Speaker base
- 5 -
Speaker unit
(Red)
Speaker neck
Tip
Speaker wire
(for diameter of less than 7 mm)
