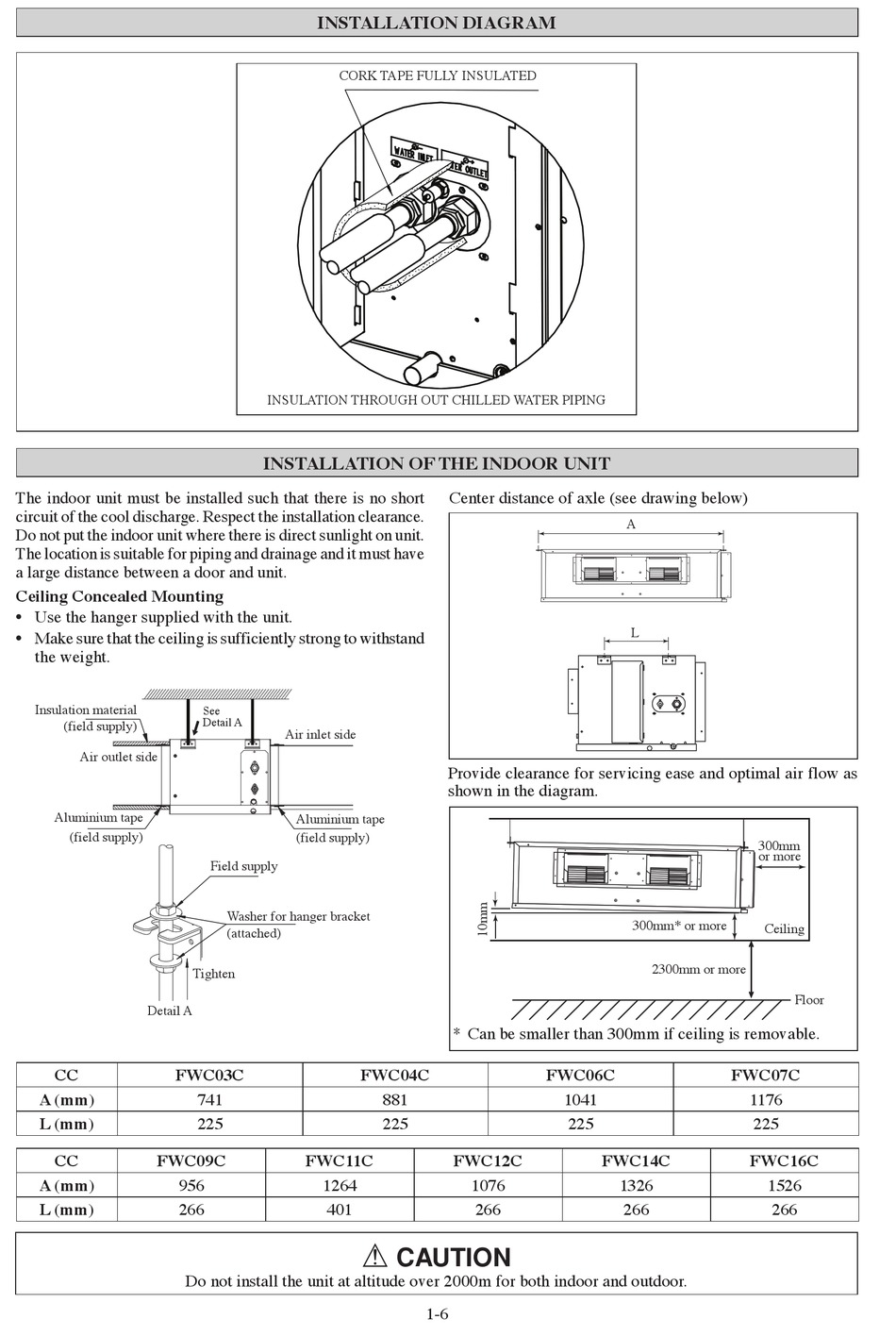

Installation Diagram; Installation Of The Indoor Unit - Daikin C Serie Installationsanleitung

The indoor unit must be installed such that there is no short
circuit of the cool discharge. Respect the installation clearance.
Do not put the indoor unit where there is direct sunlight on unit.
The location is suitable for piping and drainage and it must have
a large distance between a door and unit.
Ceiling Concealed Mounting
• Use the hanger supplied with the unit.
• Make sure that the ceiling is sufficiently strong to withstand
the weight.
Insulation material
(field supply)
Air outlet side
Aluminium tape
(field supply)
Detail A
CC FWC03C
A (mm)
L (mm)
CC FWC09C
A (mm) 956
L (mm) 266

INSTALLATION DIAGRAM

CORK TAPE FULLY INSULATED
INSULATION THROUGH OUT CHILLED WATER PIPING

INSTALLATION OF THE INDOOR UNIT

See
Detail A
Air inlet side
Aluminium tape
(field supply)
Field supply
Washer for hanger bracket
(attached)
Tighten
741
225
FWC11C
1264
401
Do not install the unit at altitude over 2000m for both indoor and outdoor.
Center distance of axle (see drawing below)
Provide clearance for servicing ease and optimal air flow as
shown in the diagram.
* Can be smaller than 300mm if ceiling is removable.
FWC04C
881
225
FWC12C
1076
266
! CAUTION
1-6
A
L
300mm* or more
2300mm or more
FWC06C
1041
225
FWC14C
1326
266
300mm
or more
Ceiling
Floor
FWC07C
1176
225
FWC16C
1526
266
