Insert to be welded
Alu pulling ring
Steel pulling ring
Stud, internally threaded stud, cop-
per-plated steel insulation nail

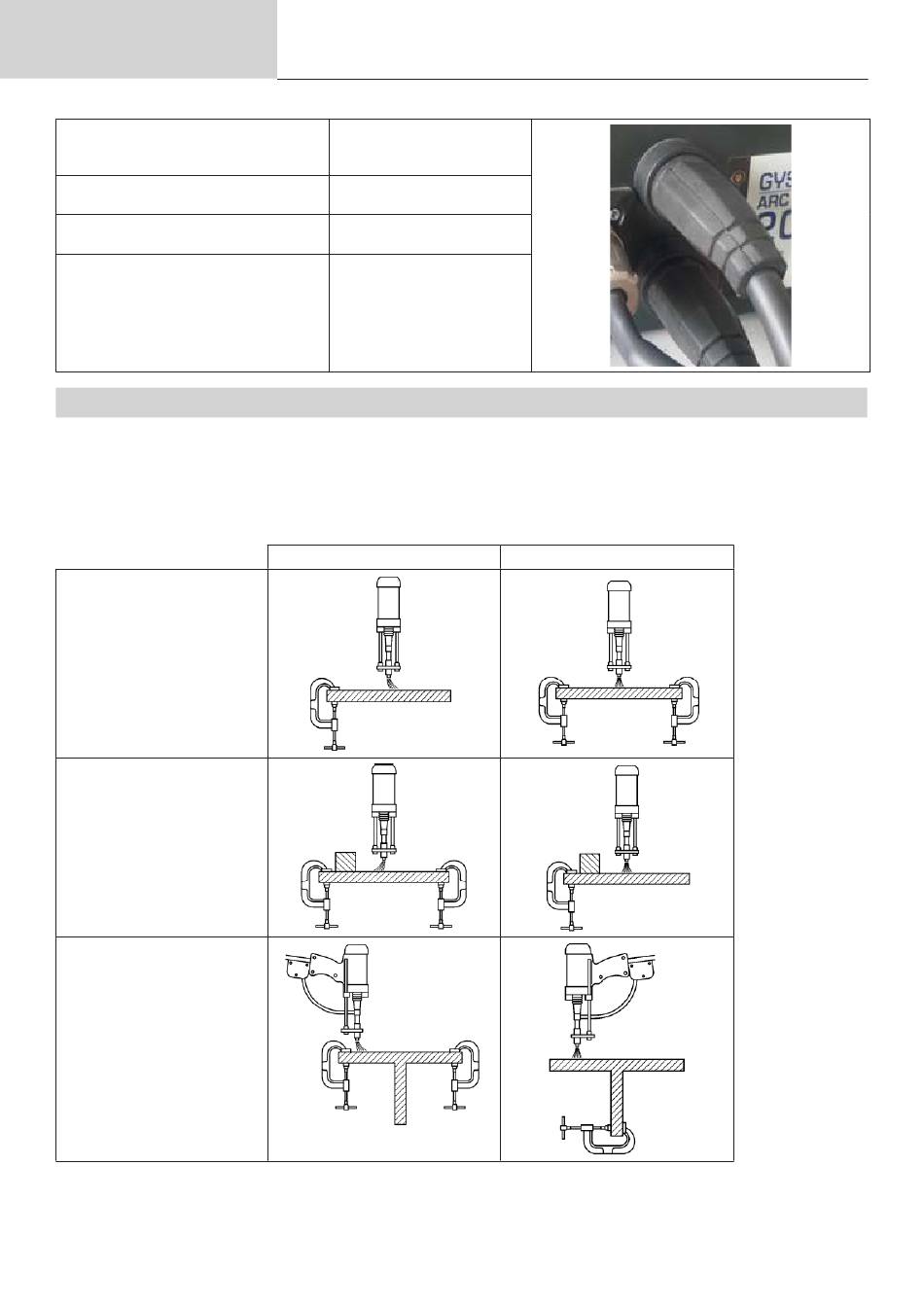

4.5. POSITIONING OF GROUND CLAMPS AND CONTROLLING THE ARC
For diameters of 6 mm and above, the welding of inserts requires the use of a ground cable with two clamps in order to avoid any
arc blowback effects.
Reminder of the ISO 14555 standard on the positioning of ground clamps depending on the configuration of
welding.
1st case: welding on flat
sheet metal
2nd case welding on sheet
metal with a metal obstruc-
tion
3rd welding on IPN
32
Translation of the original
instructions
Connecting the positive
texas connector of the gun
(red mark)
Negative texas of the
power source (-)
Positive texas of the
power source (+)
Positive texas of the
power source (+)
Cause Solution
ARCPULL 200
