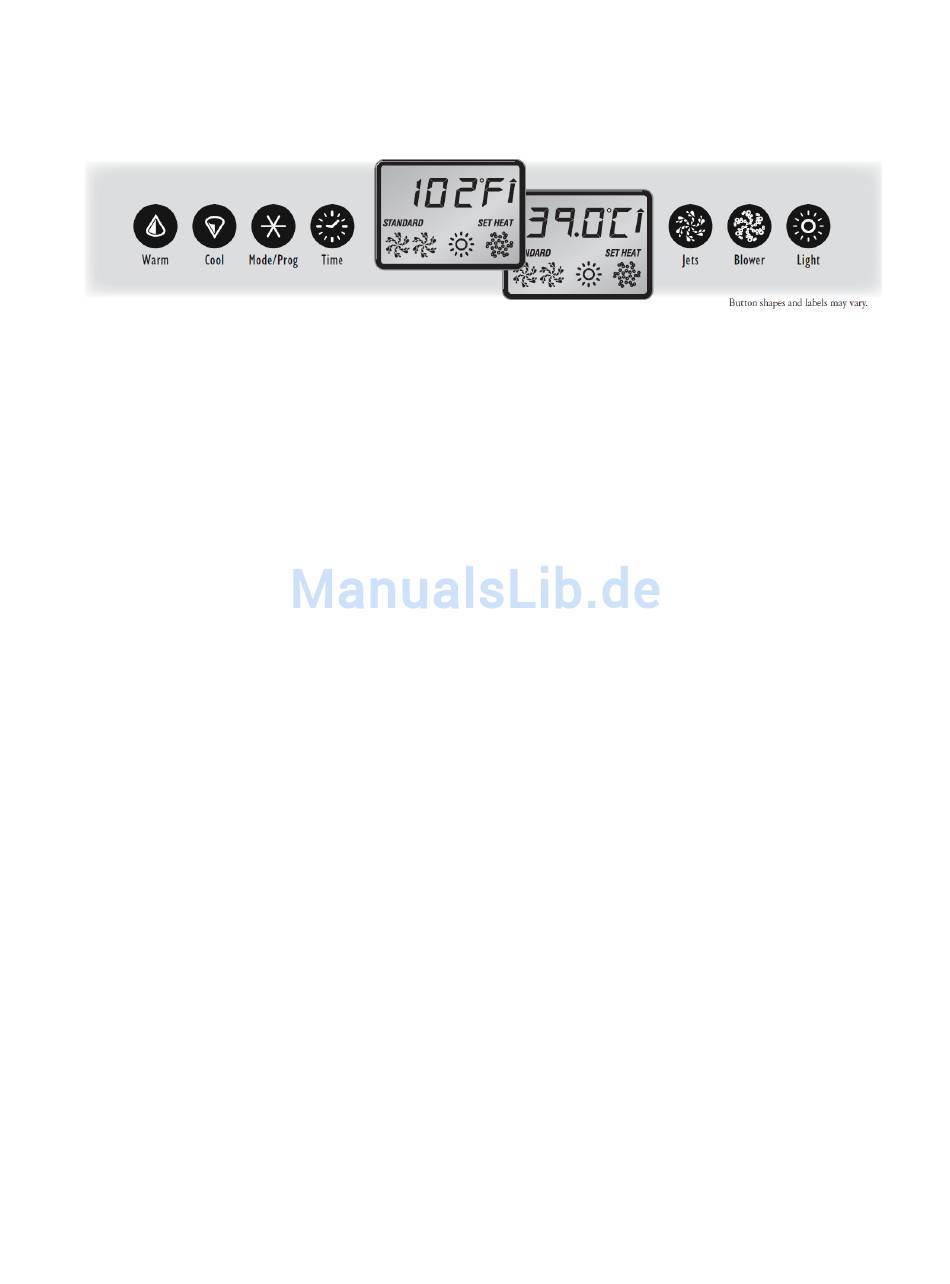

4. Control panel instructions

Your spa will enter Priming Mode ( ) when it is energized. During Priming Mode, press "Jets"
button(s) repeatedly and be sure all pumps are free of air. Priming Mode lasts less than
5 minutes. Press "Warm" or "Cool" to exit. After Priming Mode, the spa will run in Standard Mode (see
Mode/Prog section).
The pump responsible for heating and filtration (pump 1 low-speed on non-circ system, or the circ
pump on circ systems) will be referred to simply as the pump. In multi-button sequences, if the buttons
are pressed too quickly in the sequence, they may not register.
Temp Control (80°F - 104°F / 26.0°C - 40.0°C)
The last measured water temperature is constantly displayed. The water temperature displayed is
current only when the pump has been running for at least 2 minutes. To display the set
temperature, press "Warm" or "Cool" once. To change the set temp, press a temp button again before
the display stops flashing. After three seconds, the display will stop flashing and begin to display the
current spa temperature.
Jets 1
Press "Jets 1" to turn pump 1 on or off, and to shift between low and high speeds (if equipped). The
low-speed will turn off after 4 hours. High-speed will turn off after 15 minutes. Low-speed may run
automatically at times, during which it cannot be deactivated from the panel, but high-speed may be
operated.
Jets 2/Jets 3/Blower (If equipped)
Press the corresponding button once to turn the device on or off. The device will turn off after 15
minutes. Pump 2 may be two-speed on some systems. If the panel has a button with 2 devices
assigned to it, like Pump 2 and Pump 3, press the button repeatedly to step through the various
combinations of On and Off for both devices.
Light
Press "Light" to operate the spa light. Turns off after 4 hours. Setting the Time of Day When the spa
is first powered up, the words SET TIME will flash on the display. Press "Time," then "Mode/Prog,"
then "Warm" or "Cool." The time will begin changing in one-minute increments. Press "Warm" or
"Cool" to stop the time from changing. Press "Time" to confirm.
Mode/Prog
Mode is changed by pressing "Warm" or "Cool," then pressing "Mode/Prog" button. Standard Mode
maintains set temperature and the STANDARD icon will be displayed. Economy Mode heats the spa
to the set temperature only during filter cycles. will display when water temp is not current, and
will alternate with water temp when the pump is running. The ECONOMY icon will be displayed.
