Calling up the menu in the on-screen display
The Surround Hub has a menu that you can display in the OSD on your TV. To do
this, carry out the following steps:
1. On the TV, select the HDMI input that you have connected to the HDMI OUT
of the Surround Hub.
2. Press "OK" on the Surround Hub remote control. This opens the menu.
3. To exit the menu, press the "Left" arrow on the directional pad of the remote
control.
4. To enter a submenu, select the desired submenu and press "OK" on the
remote control.
5. To go up one level in the menu, press the left arrow on the directional pad on
the remote control.
6. To make a selection, press "OK" on the remote control.

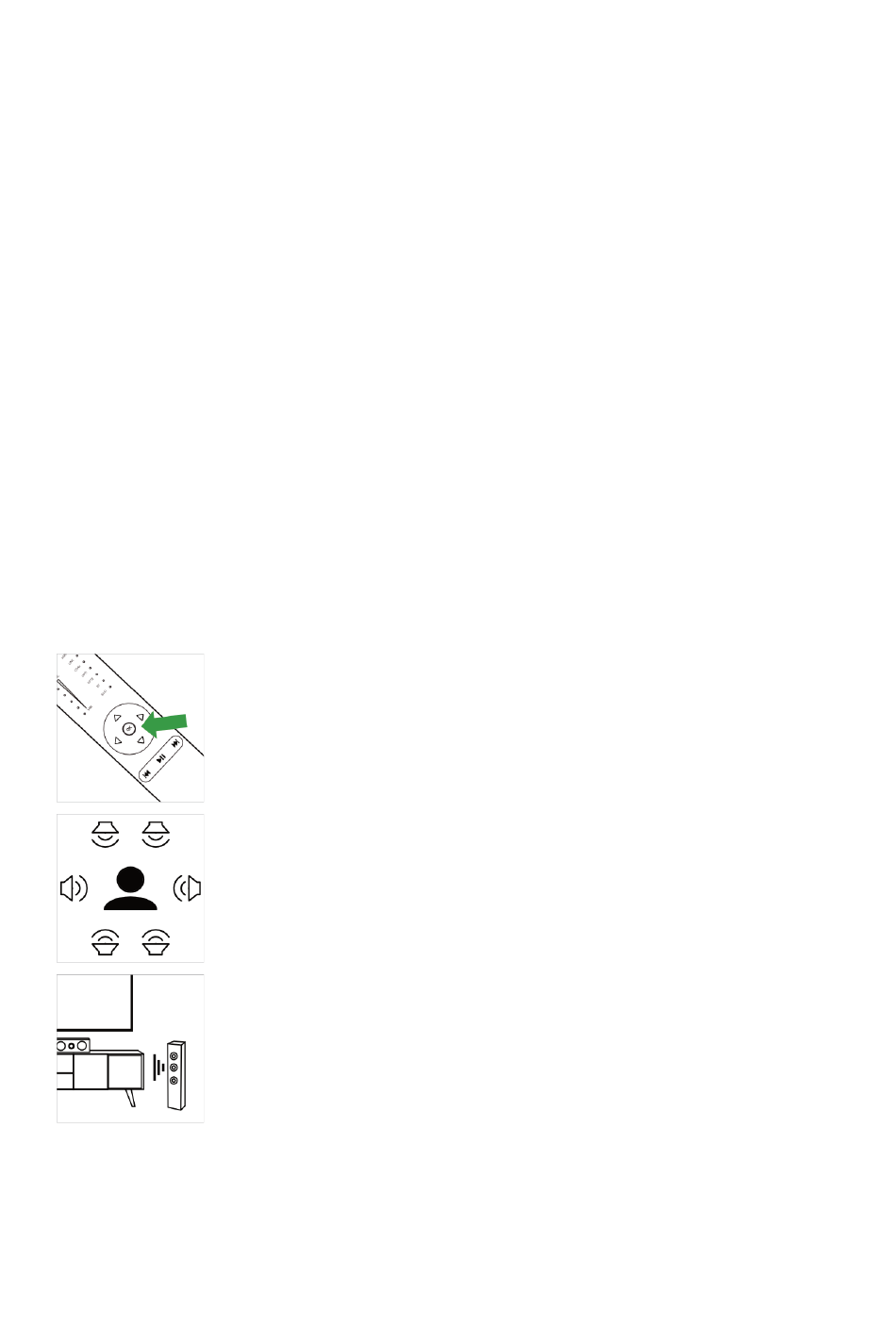

Speaker channel assignment
(OSD)
1. Open the menu
● Open the menu and select the "Speaker Setup ->
Speaker layout" submenu.
2. Selection of the existing loudspeaker system
● Select the existing loudspeaker system
3. Check the loudspeaker assignment
● Make sure that you have paired all desired loudspeakers
with the Surround Hub.
● Jump down through the list of all channels one by one.
● The loudspeaker currently assigned to the channel
makes a "ping" noise.
● If a channel is not assigned correctly, select it by
pressing "OK" and then select "Assign New".
● You can now "ping" all speakers connected to the
Surround Hub and select the correct speaker.
● Repeat this process with each channel listed until all
channels are assigned to the correct speakers.
