Wifi Setup; Before You Start - Qlima MS-AC 5001 Gebrauchsanweisung

• Do not allow water or deterrent to enter the machine.
• Do not clean the air conditioner with an aggressive cleaning agent and/or petrol.

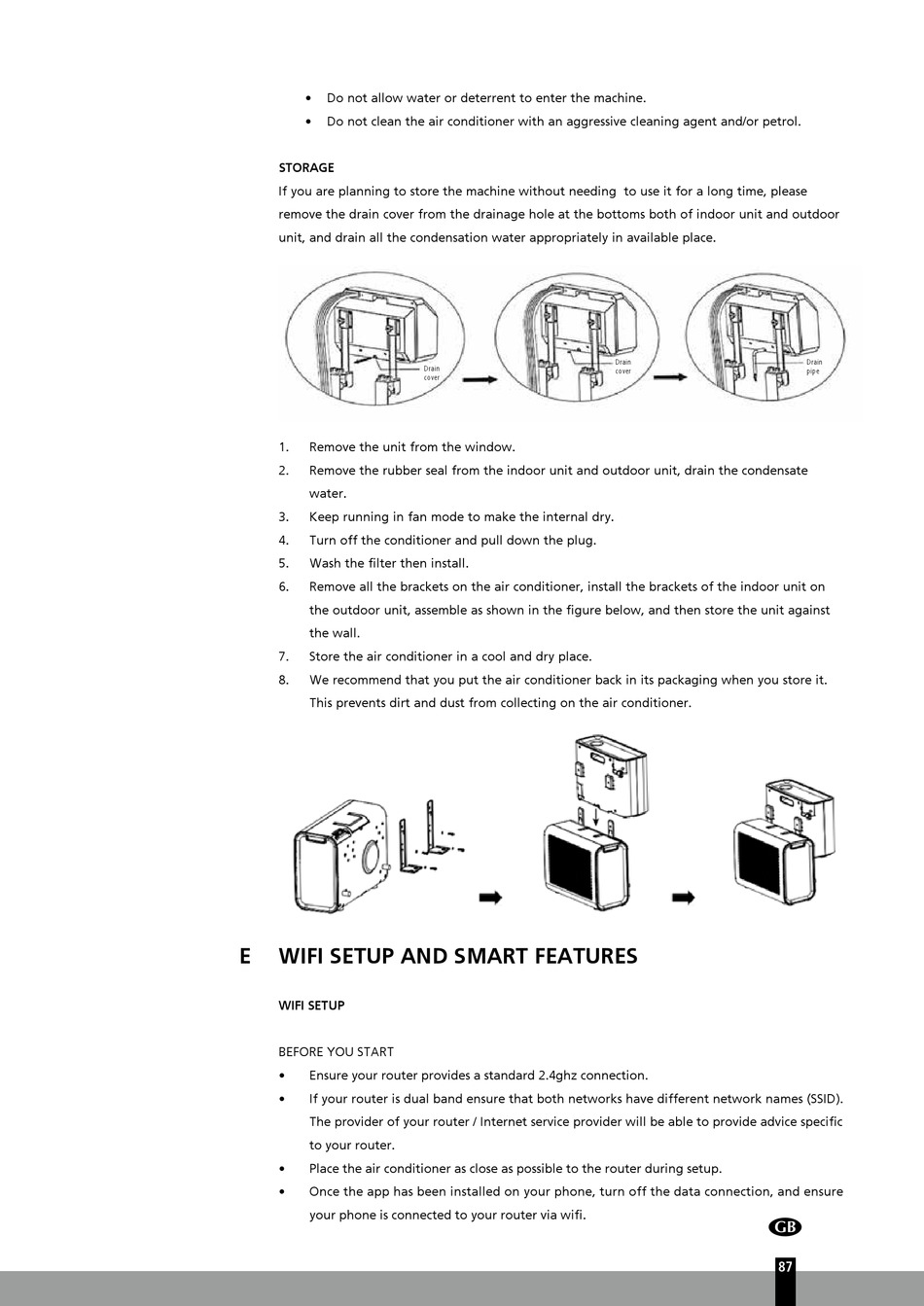

STORAGE
If you are planning to store the machine without needing to use it for a long time, please
remove the drain cover from the drainage hole at the bottoms both of indoor unit and outdoor
unit, and drain all the condensation water appropriately in available place.
1. Remove the unit from the window.
2. Remove the rubber seal from the indoor unit and outdoor unit, drain the condensate
water.
3. Keep running in fan mode to make the internal dry.
4. Turn off the conditioner and pull down the plug.
5. Wash the filter then install.
6. Remove all the brackets on the air conditioner, install the brackets of the indoor unit on
the outdoor unit, assemble as shown in the figure below, and then store the unit against
the wall.
7. Store the air conditioner in a cool and dry place.
8. We recommend that you put the air conditioner back in its packaging when you store it.
This prevents dirt and dust from collecting on the air conditioner.
E WIFI SETUP AND SMART FEATURES

WIFI SETUP

BEFORE YOU START

• Ensure your router provides a standard 2.4ghz connection.
• If your router is dual band ensure that both networks have different network names (SSID).
The provider of your router / Internet service provider will be able to provide advice specific
to your router.
• Place the air conditioner as close as possible to the router during setup.
• Once the app has been installed on your phone, turn off the data connection, and ensure
your phone is connected to your router via wifi.
Drain
cover
Drain
cover
4
87
Drain
pipe
