11 Assembly Instructions

The instructions in this section are for practitioner use only.

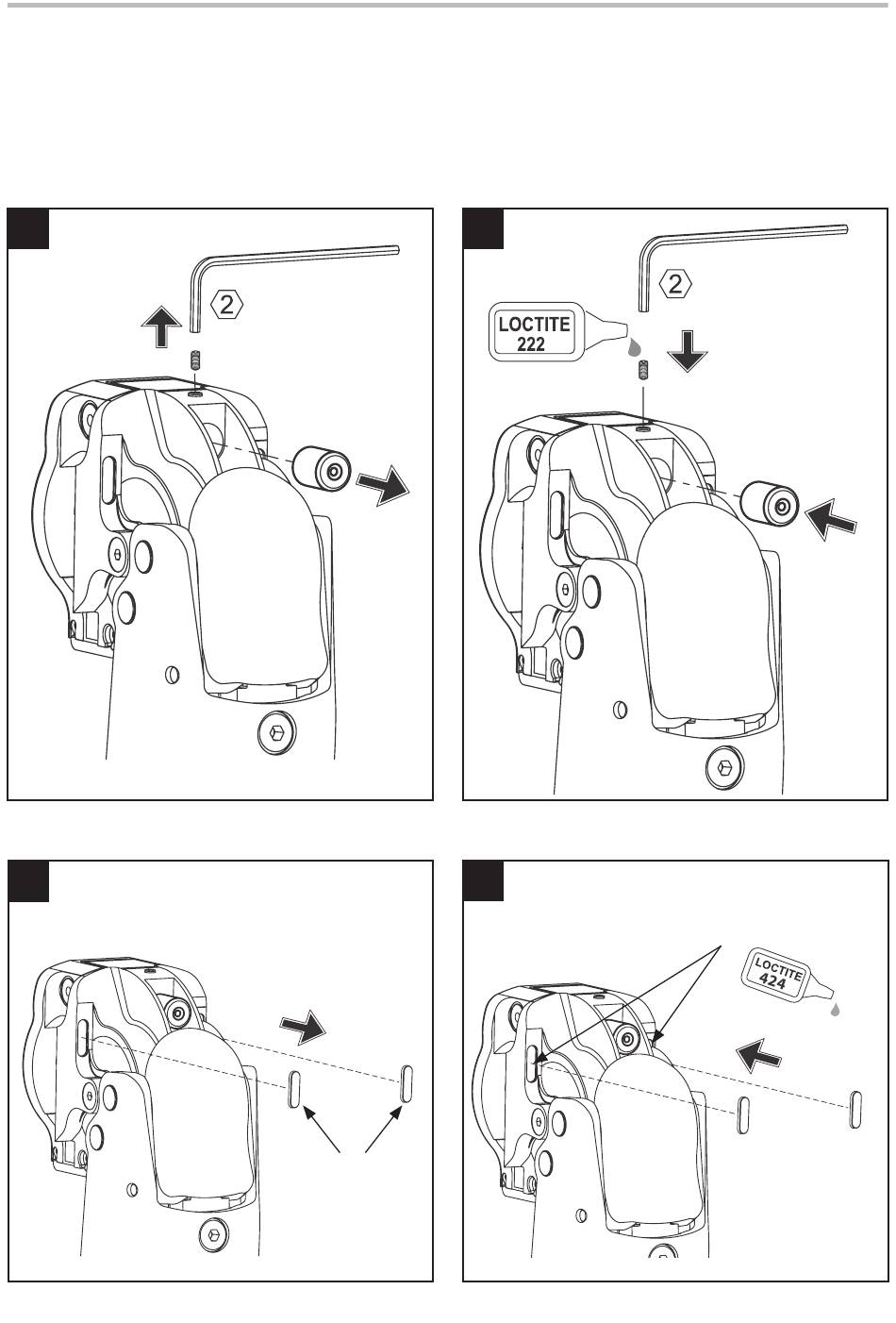

11.1 Changing Front Stop Buffer

When fitting a new front stop, always re-adjust, and if applicable check length of cylinder if fitted
with an adjustable trunnion. (See Front Stop Adjustment - Adjustable Trunnion.)
1

11.2 Changing Shin Stops

Remove shin stops and remainder of
1
adhesive. Clean and lightly abrade mating
surfaces.
2
2
Shin Stops
16
Apply Loctite 424 on mating surfaces. Press
shin stops into place.
Mating Surfaces
938250PK1/1-0421
