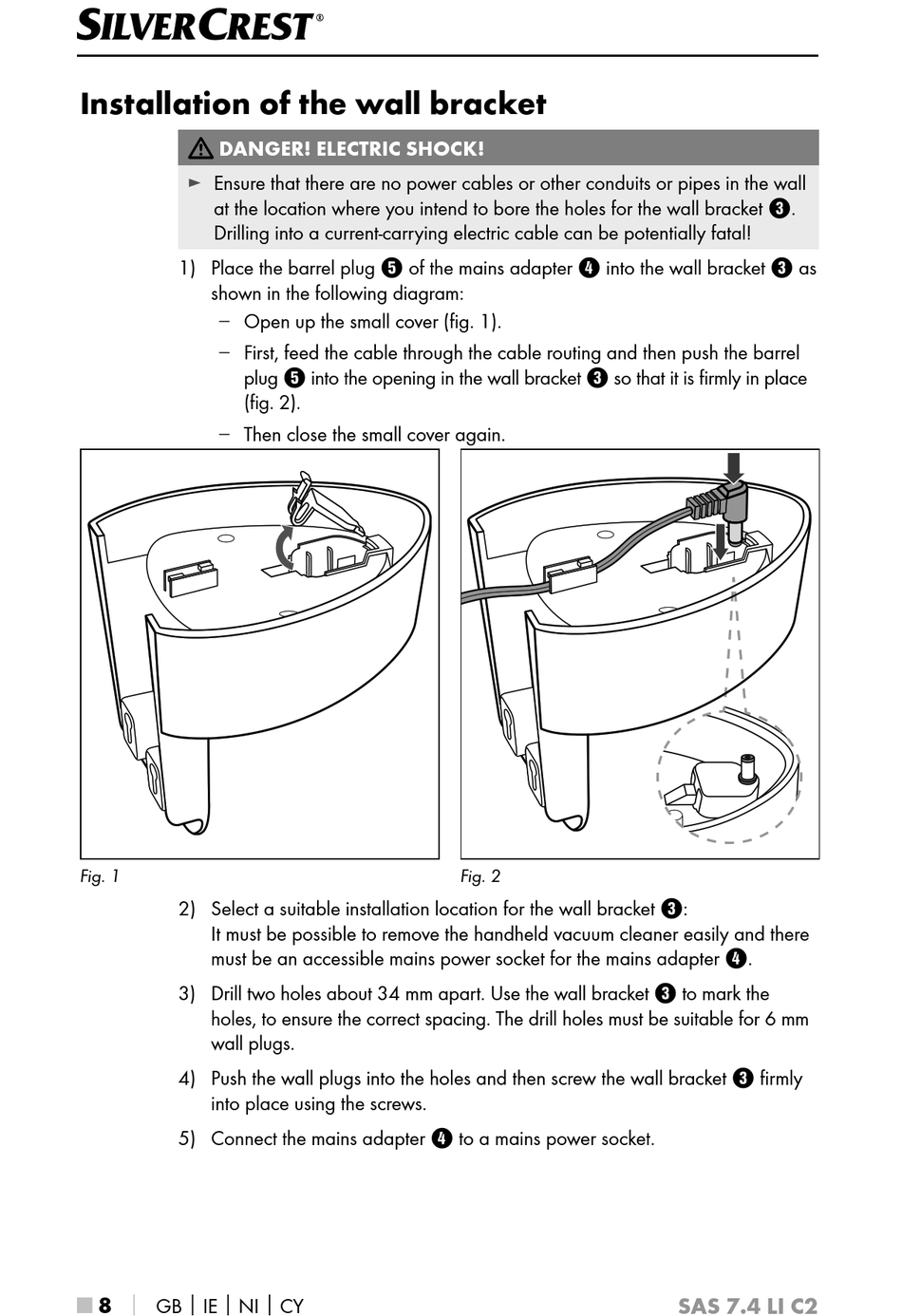

Installation of the wall bracket

DANGER! ELECTRIC SHOCK!
► Ensure that there are no power cables or other conduits or pipes in the wall
at the location where you intend to bore the holes for the wall bracket
Drilling into a current-carrying electric cable can be potentially fatal!
1) Place the barrel plug
shown in the following diagram:
–
Open up the small cover (fig . 1) .
–
First, feed the cable through the cable routing and then push the barrel
plug
(fig . 2) .
–
Then close the small cover again .
Fig. 1
2) Select a suitable installation location for the wall bracket
It must be possible to remove the handheld vacuum cleaner easily and there
must be an accessible mains power socket for the mains adapter
3) Drill two holes about 34 mm apart . Use the wall bracket
holes, to ensure the correct spacing . The drill holes must be suitable for 6 mm
wall plugs .
4) Push the wall plugs into the holes and then screw the wall bracket
into place using the screws .
5) Connect the mains adapter
■ 8 │ GB │ IE │ NI │ CY
of the mains adapter
5
into the opening in the wall bracket
5
4
into the wall bracket
4
so that it is firmly in place
3
Fig. 2
to a mains power socket .
.
3
as
3
:
3
.
4
to mark the
3
firmly
3
SAS 7.4 LI C2
