APPLICATION AND LIMITATIONS
APPLICATION
Follow Step 1 & Step 2 to use this equipment.
1. Connect the swivel eye at the top of the Self Retractable Lifeline to a suitable anchorage point situated above the
user's head using connectors as per EN 362 & ensure the connector is locked. The Micro SRL can also be used in a
horizontal direction and anchored at foot level (no lower) where a suitable anchorage exists. For SRLs from the Sharp
EDGE range (with VG 11 test compliance), they may also be used in a horizontal direction. WHEREVER POSSIBLE
PREFERENCE SHOULD BE GIVEN TO ANCHOR POINT(S) ABOVE THE HEAD OF THE USER.
2. Now connect the swivel hook of the equipment to the attachment element of your full body harness and ensure that
it is locked. You are now safe to move around at normal walking pace. In the event of a fall, the Self Retracting Lifeline
locks & also minimises the impact forces on the body of user.
3. Now insert the locking pin into the bush of the bracket and tighten fully.
4. Reel out the wire and guide it through the pulley of Tripod and connect to the Dorsal D-Ring of the user's harness.
Ensure that the communication between the lifter and the liftee can be maintained at all times during the rescue process.
The lifting / lowering function is for rescue purposes only and not for lifting / lowering loads.
The maximum rated load of the lifting device is 140 kg.
RETRACTABLE MODE
Pull the Push pin out and push the handle down to change the mode in to Retractable mode.
RESCUE MODE
After a fall has occurred while attached to the retractable, pull the pin out and allow the handle to move out to activate
the Retrieval function. The device comes with an additional hand-operated lowering function intended for lowering a
person over a distance limited to 2 meters.
Note: Check the shaft to make sure that the green band comes out fully. If not, rotate the handle and try to pull the
handle upside until the green band comes out fully.
For the micro SRL, follow Step 1 & Step 2 to use this
equipment as single or double Lanyard.

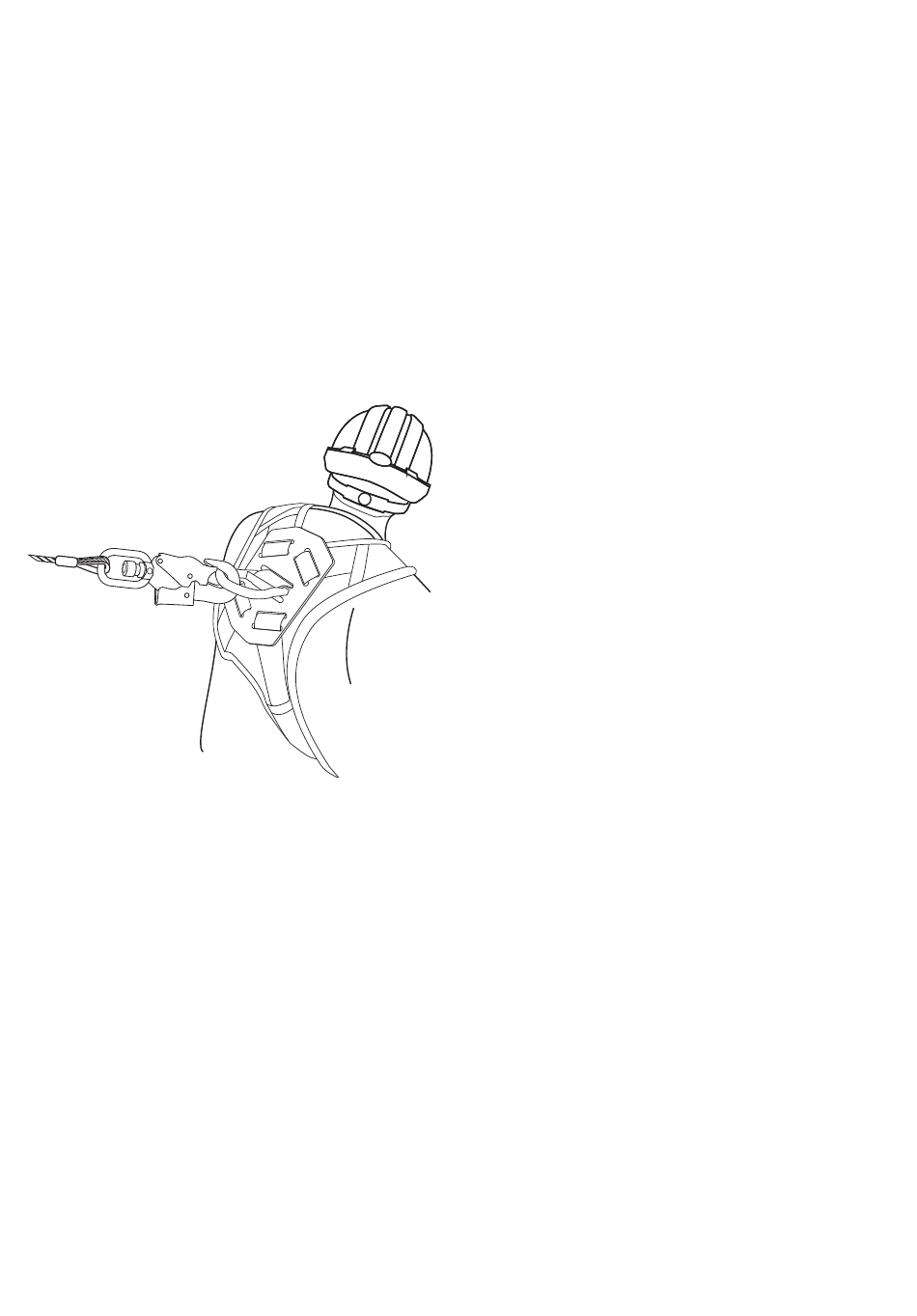

1. Connect the swivel eye of the micro SRL to the
dorsal attachment of the full body harness with the help
of a separate D-ring connector & ensure the connector
is locked.
2. Now connect the snap/scaffold hook at the
termination end of the device to the structure and
ensure that it is locked. You are now safe to move
around at normal walking pace. In the event of a fall,
the Self Retracting Lifeline locks & also minimizes the
impact forces on the body of user.
For the retrieval SRL, follow the below procedure:
1. Install the appropriate bracket on Tripod with help of
two locking pins supplied with the bracket.
2. Mount the SRL on the bracket by inserting the
guided pulley of the SRL into the recess provided in the
bracket.
