ABB ACQ580-34 Kurzanleitung Für Die Installation Und Inbetriebnahme Seite 137

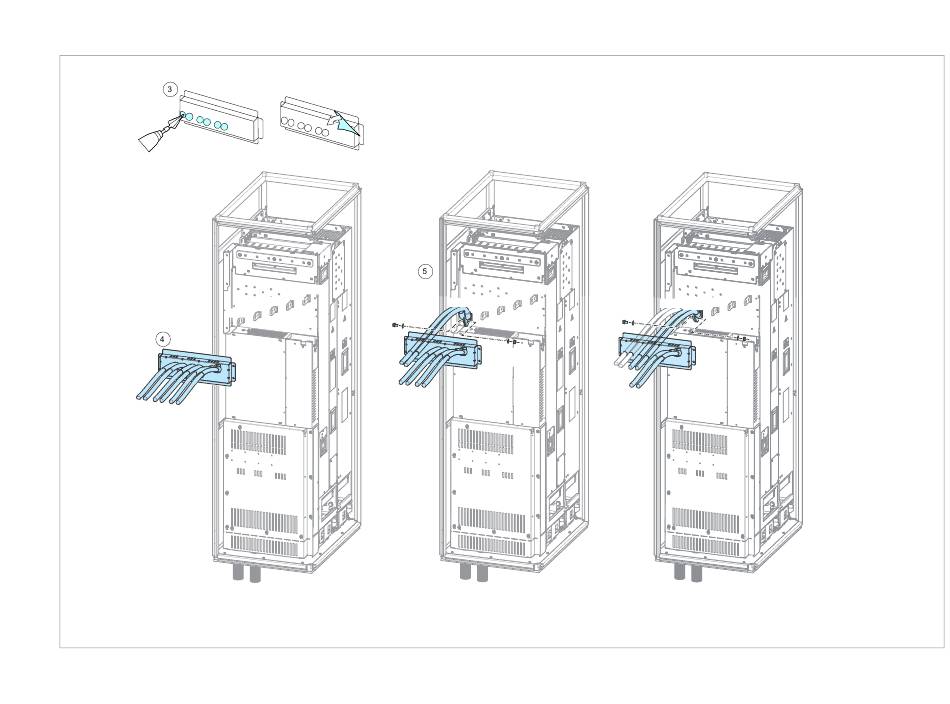

Connecting the input power cables and installing the shrouds
See instructions in section Connect the input cables and install the shrouds (option +B051) (page
L3/W1
+B051
UDC+
UDC-
L1/U1
Hex screw M12×35
L2/V1
full thread
70 N·m (52 lbf·ft)
Step-by-step drawings for an installation example in Rittal VX25 800 mm wide enclosure 137
14).
UDC+
UDC-
L1/U1
L3/W1
L2/V1
Hex nut M12
70 N·m (52 lbf·ft)
UDC+
UDC-
L3/W1 L2/V1 L1/U1
