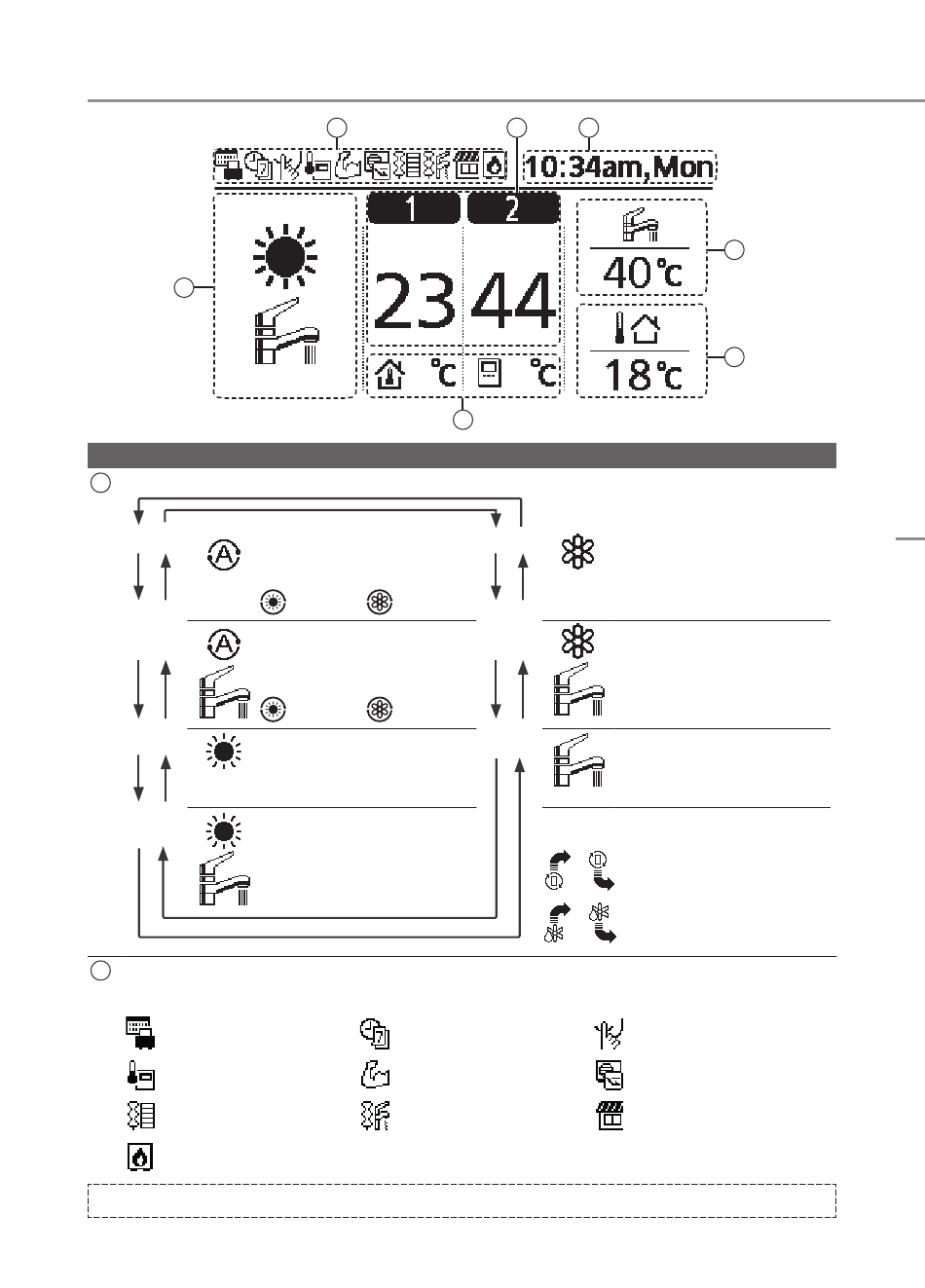

Remote Controller buttons and display
1
Display
1 Mode selection
AUTO
AUTO
+ TANK
HEAT
HEAT
+ TANK
Operation icons
2
The status of operation is displayed�
Icon will not display (under operation OFF screen) whenever operation is OFF except weekly timer�
Holiday operation status
Zone: Room Thermostat
→Internal sensor status
Room Heater status
Bivalent status
(Boiler)
* The system is locked to operate without COOL mode� It can be unlocked only by authorised installers or our authorised service partners�
1
* Only displayed when COOL mode is unlocked (This means when COOL mode is available)�
2
8
2
• Depending on the preset outdoor
temperature, the system selects
HEAT or * COOL operation mode�
1
Auto Heat Auto Cool
• Depending on the preset outdoor
temperature, the system selects
HEAT + TANK or * COOL + TANK
1
operation mode�
Auto Heat Auto Cool
• The panel/floor HEAT operation is
either turned ON or OFF�
• The outdoor unit provides heat to
the system�
• The outdoor unit provides heat to
the water tank and the system�
• This mode can be selected only
when the water tank is installed�
Weekly Timer operation status
Powerful operation status
Tank Heater status
3 4
7
* * COOL
• The fan coil unit is either turned
1, 2
ON or OFF�
• The outdoor unit provides cooling
to the system�
* * COOL • The outdoor unit provides cooling
1, 2
to the system�
+ TANK
• The system controls the booster
heater in the water tank�
TANK • The water tank is either turned
ON or OFF�
• The outdoor unit provides heat to
the water tank�
* The direction icons point to the currently
active mode�
• Room operation / Tank operation�
• Deice operation�
5
6
Quiet operation status
Demand Control or
SG ready or SHP status
Solar status
