Legend
Connector operating
1
panel
LAN connector
2
Service interface
3
Process
Prerequisite
KNAUER
13 Installation
All connectors for external control are located on the rear side of
the thermostat .
With an operating panel, the thermostat can be controlled
locally. The operating panel has to be bought separately. The
operating panel is connected via a serial interface on the back of
the device.

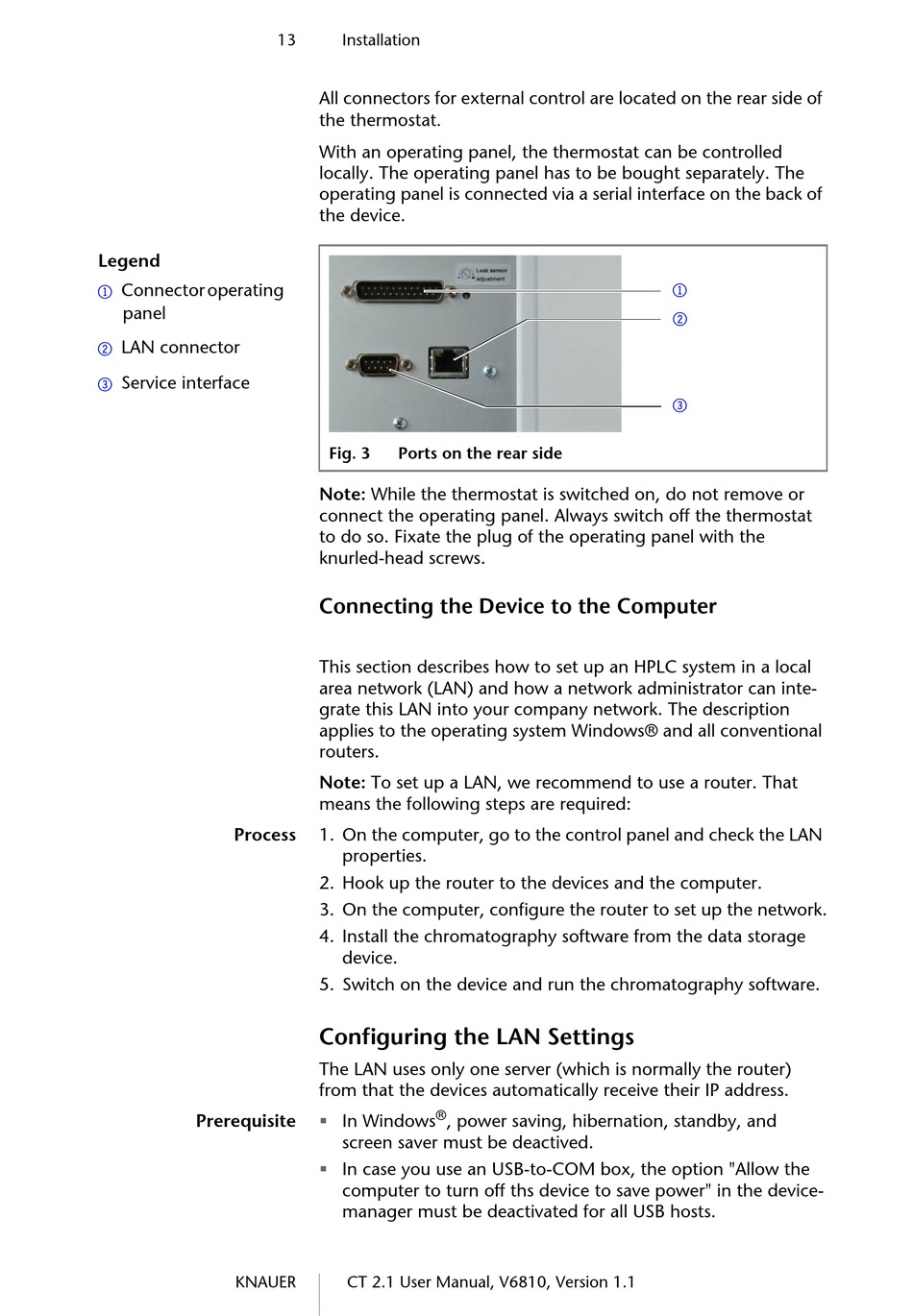

Fig. 3 Ports on the rear side
Note: While the thermostat is switched on, do not remove or
connect the operating panel. Always switch off the thermostat
to do so. Fixate the plug of the operating panel with the
knurled-head screws.

Connecting the Device to the Computer

This section describes how to set up an HPLC system in a local
area network (LAN) and how a network administrator can inte-
grate this LAN into your company network. The description
applies to the operating system Windows® and all conventional
routers.
Note: To set up a LAN, we recommend to use a router. That
means the following steps are required:
1. On the computer, go to the control panel and check the LAN
properties.
2. Hook up the router to the devices and the computer.
3. On the computer, configure the router to set up the network.
4. Install the chromatography software from the data storage
device.
5. Switch on the device and run the chromatography software.

Configuring the LAN Settings

The LAN uses only one server (which is normally the router)
from that the devices automatically receive their IP address.
®

In Windows , power saving, hibernation, standby, and
screen saver must be deactived.

In case you use an USB-to-COM box, the option "Allow the
computer to turn off ths device to save power" in the device-
manager must be deactivated for all USB hosts.
CT 2.1 User Manual, V6810, Version 1.1
1
2
3
