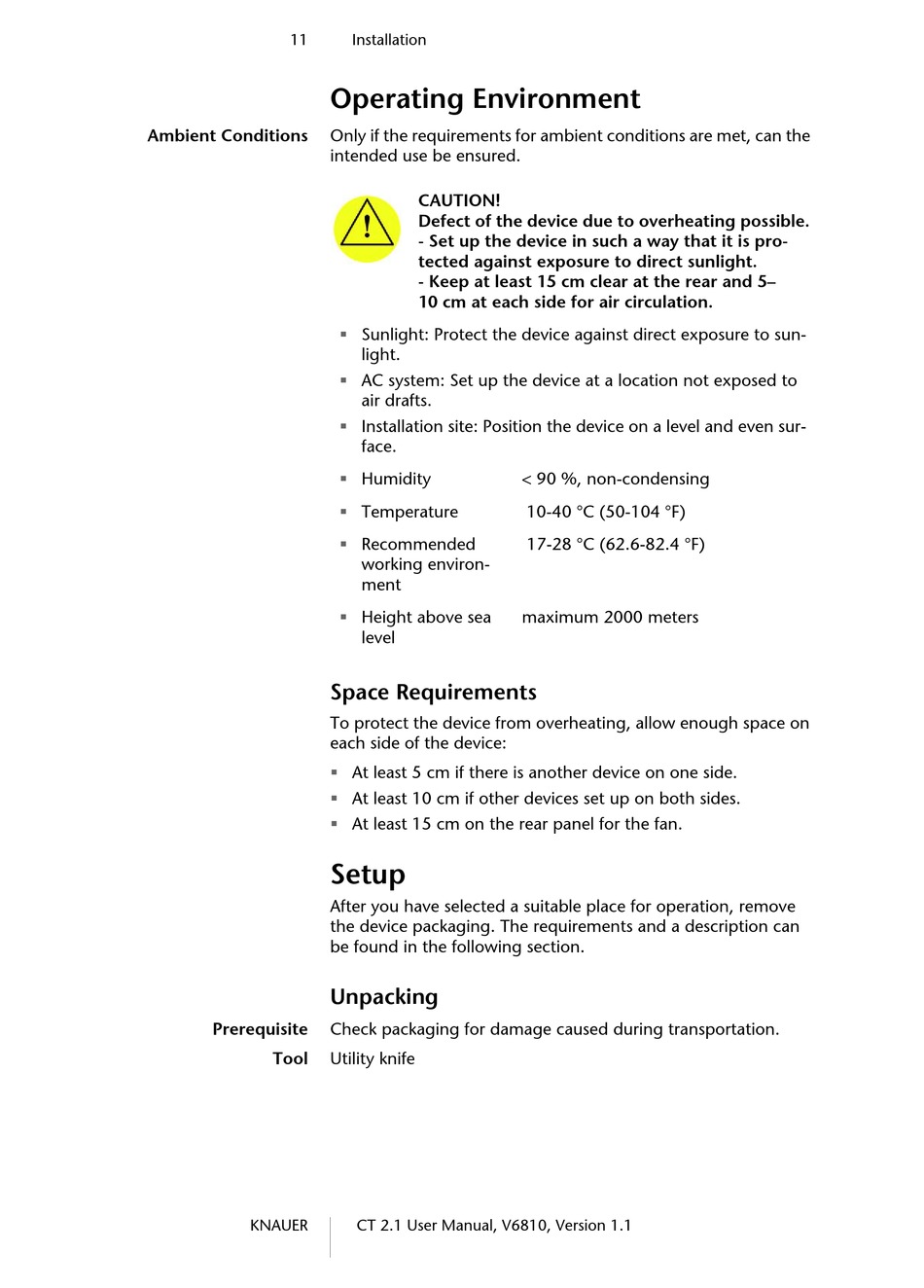

Operating Environment; Space Requirements; Setup; Unpacking - Knauer Azura CT 2.1 Benutzerhandbuch

11
Ambient Conditions
Prerequisite
Tool
KNAUER
Installation

Operating Environment

Only if the requirements for ambient conditions are met, can the
intended use be ensured.
CAUTION! 
Defect of the device due to overheating possible. 
- Set up the device in such a way that it is pro-
tected against exposure to direct sunlight. 
- Keep at least 15 cm clear at the rear and 5–
10 cm at each side for air circulation.

Sunlight: Protect the device against direct exposure to sun-
light.

AC system: Set up the device at a location not exposed to
air drafts.

Installation site: Position the device on a level and even sur-
face.

Humidity

Temperature

Recommended
working environ-
ment

Height above sea
level

Space Requirements

To protect the device from overheating, allow enough space on
each side of the device:

At least 5 cm if there is another device on one side.

At least 10 cm if other devices set up on both sides.

At least 15 cm on the rear panel for the fan.

Setup

After you have selected a suitable place for operation, remove
the device packaging. The requirements and a description can
be found in the following section.

Unpacking

Check packaging for damage caused during transportation.
Utility knife
CT 2.1 User Manual, V6810, Version 1.1
< 90 %, non-condensing
10-40 °C (50-104 °F)
17-28 °C (62.6-82.4 °F)
maximum 2000 meters
