Intended Use; Front View - Knauer Azura CT 2.1 Benutzerhandbuch

Intended Use

Description
Scope of application
Place of installation
Legend
Pre-column temper-
1
ing
Door
2
Housing
3
Column holder
4
Fan
5
Temperature sensor
6
Column
7
Leak sensor
8
KNAUER

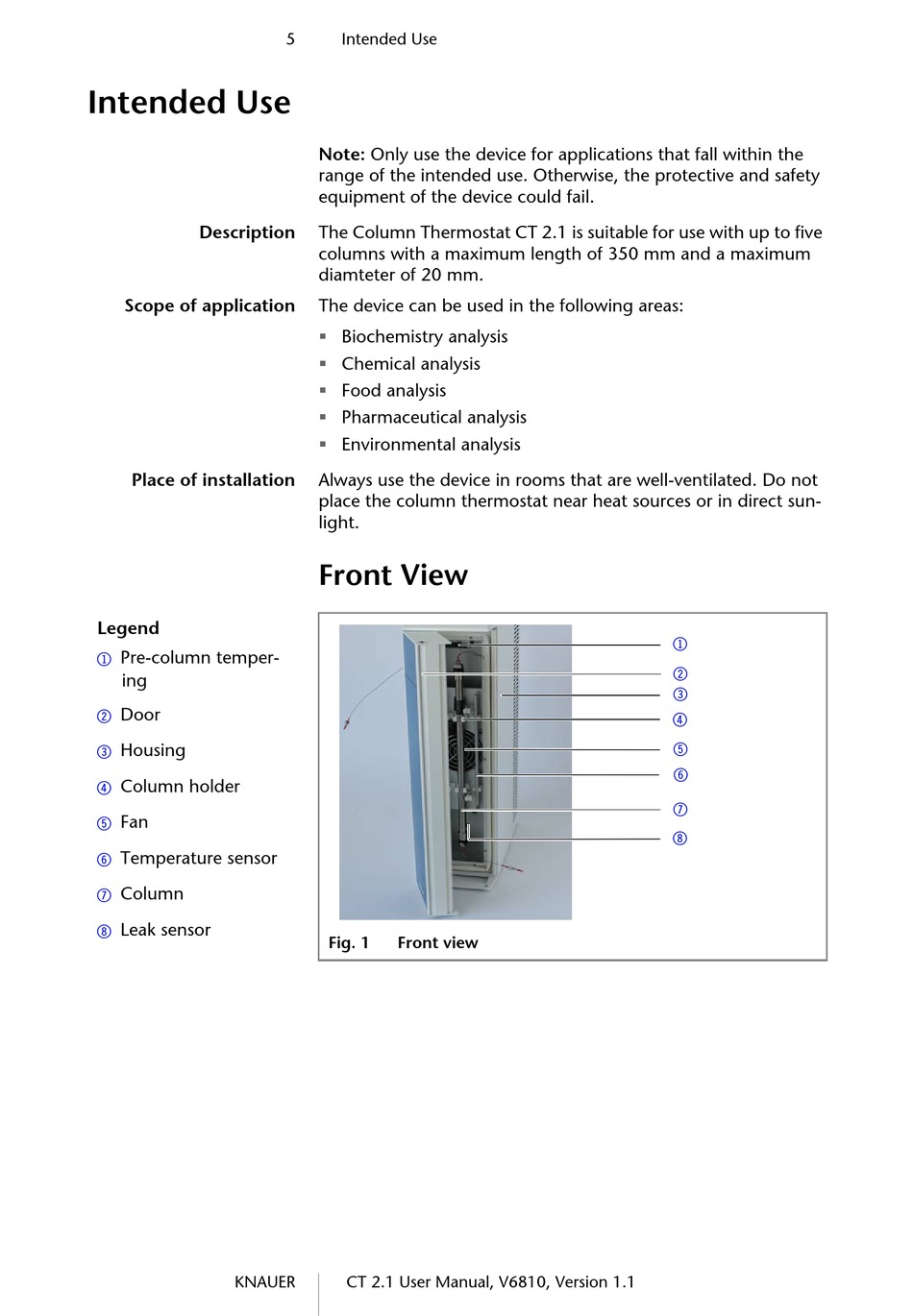

5 Intended Use
Note: Only use the device for applications that fall within the
range of the intended use. Otherwise, the protective and safety
equipment of the device could fail.
The Column Thermostat CT 2.1 is suitable for use with up to five
columns with a maximum length of 350 mm and a maximum
diamteter of 20 mm.
The device can be used in the following areas:

Biochemistry analysis

Chemical analysis

Food analysis

Pharmaceutical analysis

Environmental analysis
Always use the device in rooms that are well-ventilated. Do not
place the column thermostat near heat sources or in direct sun-
light.

Front View

Fig. 1 Front view
CT 2.1 User Manual, V6810, Version 1.1
1
2
3
4
5
6
7
8
