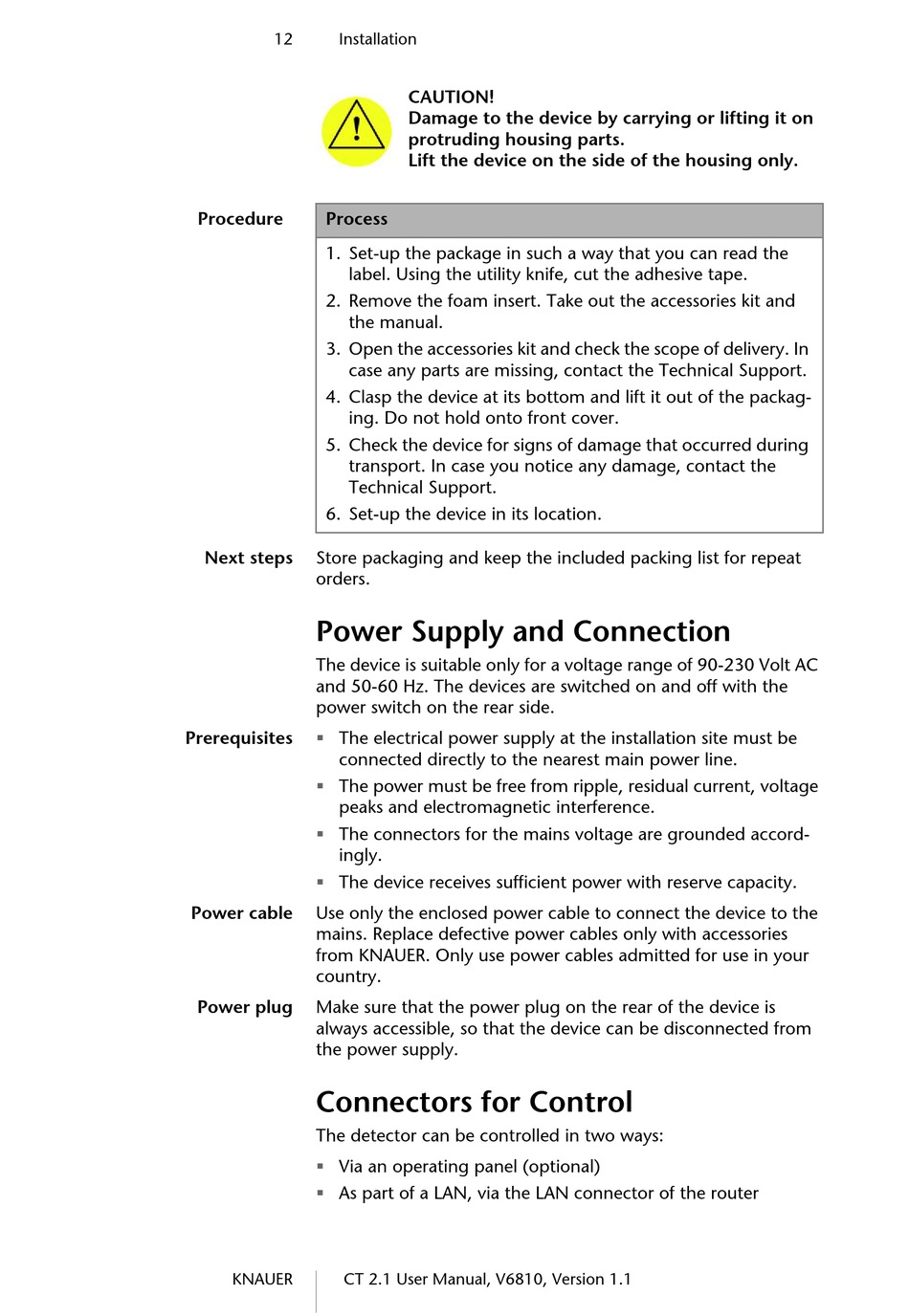

12
Installation
Procedure
Process
1. Set-up the package in such a way that you can read the
label. Using the utility knife, cut the adhesive tape.
2. Remove the foam insert. Take out the accessories kit and
the manual.
3. Open the accessories kit and check the scope of delivery. In
case any parts are missing, contact the Technical Support.
4. Clasp the device at its bottom and lift it out of the packag-
ing. Do not hold onto front cover.
5. Check the device for signs of damage that occurred during
transport. In case you notice any damage, contact the
Technical Support.
6. Set-up the device in its location.
Next steps
Store packaging and keep the included packing list for repeat
orders.

Power Supply and Connection

The device is suitable only for a voltage range of 90-230 Volt AC
and 50-60 Hz. The devices are switched on and off with the
power switch on the rear side.
Prerequisites
The electrical power supply at the installation site must be
connected directly to the nearest main power line.
The power must be free from ripple, residual current, voltage
peaks and electromagnetic interference.
The connectors for the mains voltage are grounded accord-
ingly.
The device receives sufficient power with reserve capacity.
Power cable
Use only the enclosed power cable to connect the device to the
mains. Replace defective power cables only with accessories
from KNAUER. Only use power cables admitted for use in your
country.
Power plug
Make sure that the power plug on the rear of the device is
always accessible, so that the device can be disconnected from
the power supply.

Connectors for Control

The detector can be controlled in two ways:
Via an operating panel (optional)
As part of a LAN, via the LAN connector of the router
KNAUER
CT 2.1 User Manual, V6810, Version 1.1
CAUTION! 
Damage to the device by carrying or lifting it on
protruding housing parts. 
Lift the device on the side of the housing only.
