Service interface
Legend
Connector operating
1
panel
Potentiometer
2
LAN port
3
Service interface
4
Fan
5
Power switch
6
Label with serial
7
number
Power plug
8
GLP data
Optional accessories
KNAUER
6 Intended Use

Rear View

Note: On the rear side of the thermostat are situated:

LAN connector

Optional operating panel

Power plug

Serial number of the device

Power switch (on/off)

Potentiometer for leak sensor settings
Please note that the service interface is solely used for repair and
maintenance tasks performed by service technicians.

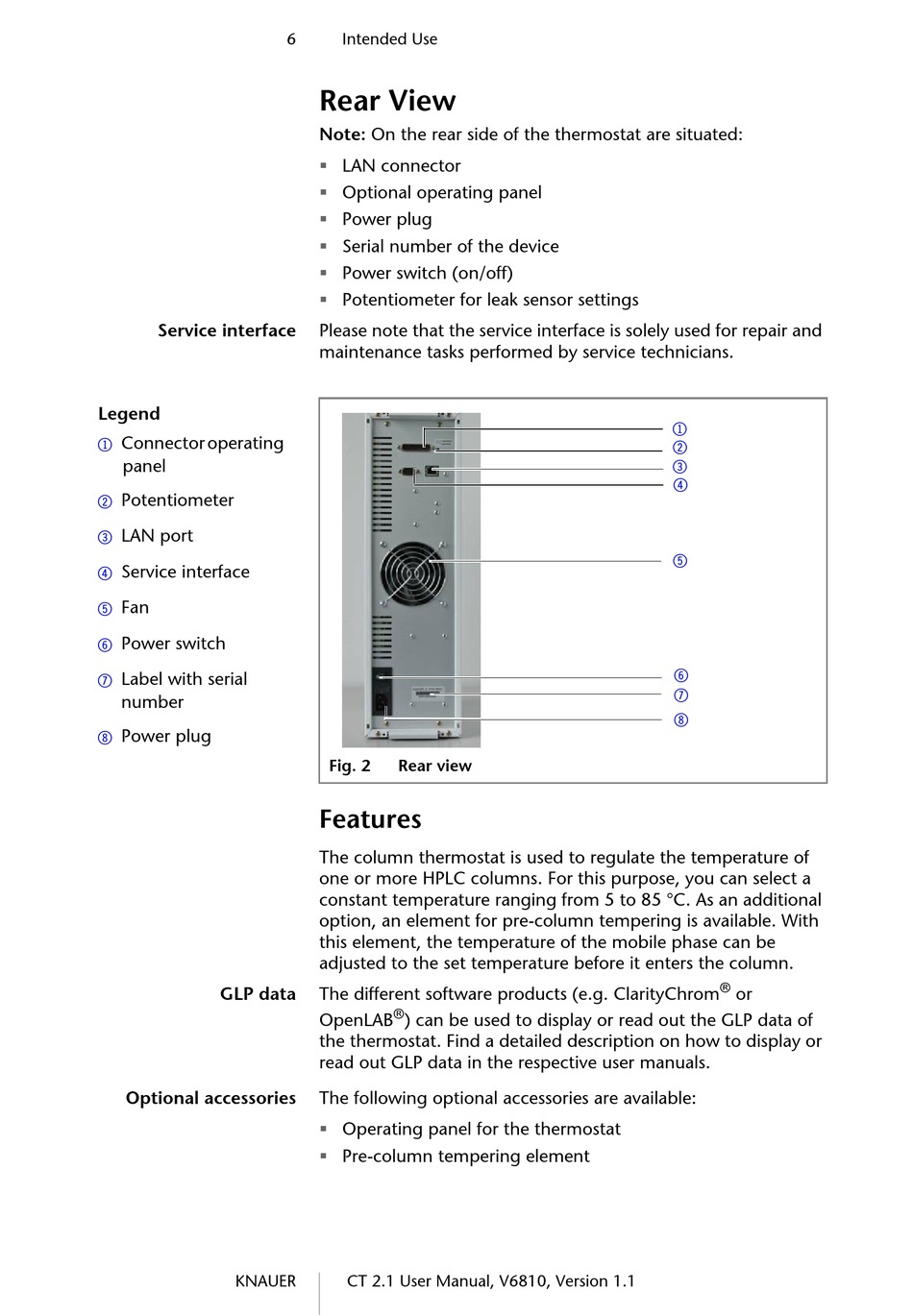

Fig. 2 Rear view

Features

The column thermostat is used to regulate the temperature of
one or more HPLC columns. For this purpose, you can select a
constant temperature ranging from 5 to 85 °C. As an additional
option, an element for pre-column tempering is available. With
this element, the temperature of the mobile phase can be
adjusted to the set temperature before it enters the column.
The different software products (e.g. ClarityChrom
®
OpenLAB ) can be used to display or read out the GLP data of
the thermostat. Find a detailed description on how to display or
read out GLP data in the respective user manuals.
The following optional accessories are available:

Operating panel for the thermostat

Pre-column tempering element
CT 2.1 User Manual, V6810, Version 1.1
1
2
3
4
5
6
7
8
®
or
