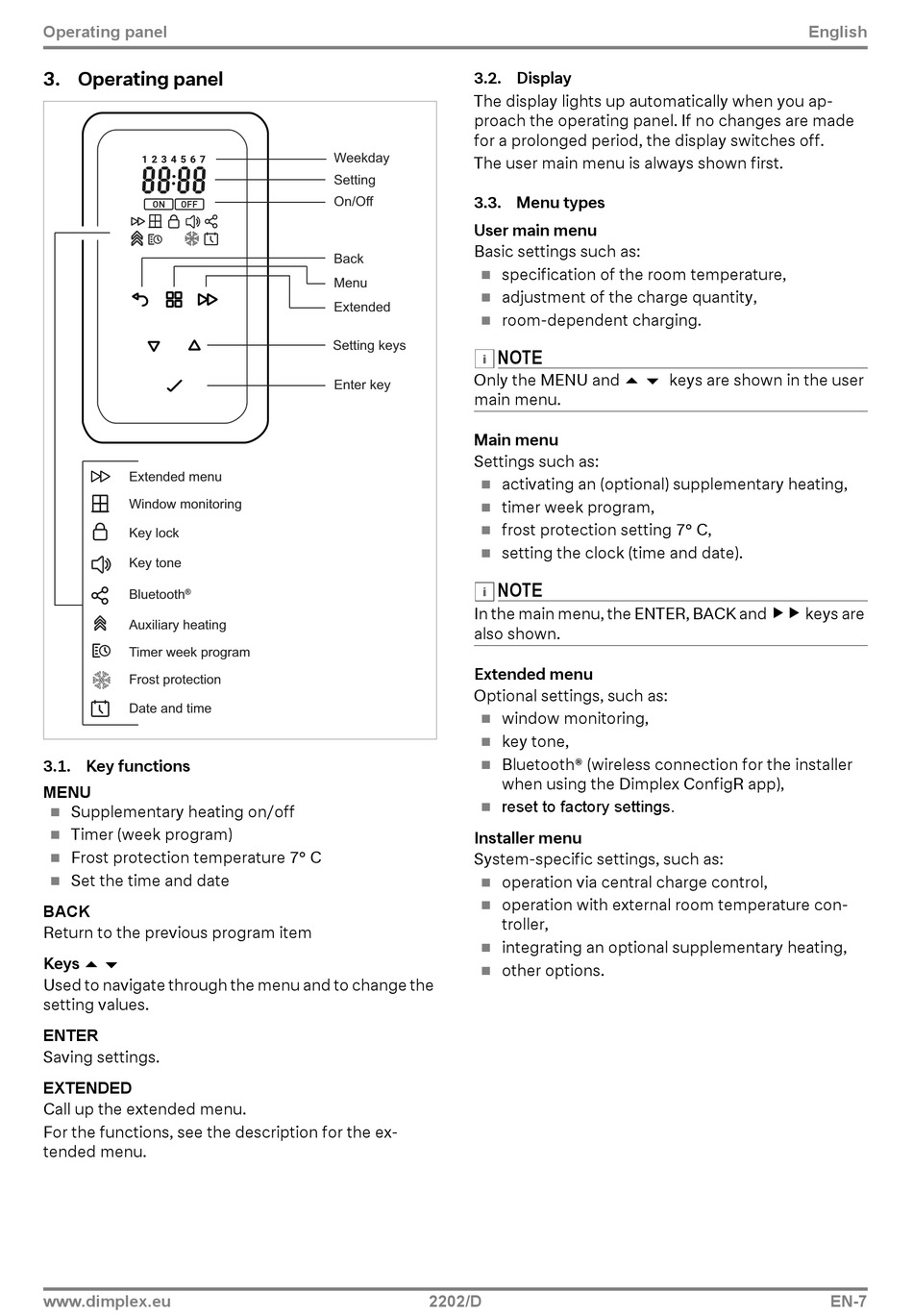

Operating panel

3. Operating panel
Extended menu
Window monitoring
Key lock
Key tone
Bluetooth
®
Auxiliary heating
Timer week program
Frost protection
Date and time

3.1. Key functions

MENU
Supplementary heating on/off

Timer (week program)

Frost protection temperature 7° C

Set the time and date

BACK
Return to the previous program item
Keys  
Used to navigate through the menu and to change the
setting values.
ENTER
Saving settings.
EXTENDED
Call up the extended menu.
For the functions, see the description for the ex-
tended menu.
www.dimplex.eu
3.2. Display
The display lights up automatically when you ap-
proach the operating panel. If no changes are made
for a prolonged period, the display switches off.
Weekday
The user main menu is always shown first.
Setting
3.3. Menu types
On/Off
User main menu
Basic settings such as:
Back
specification of the room temperature,

Menu
adjustment of the charge quantity,

Extended
room-dependent charging.

Setting keys
NOTE
Only the MENU and  keys are shown in the user
Enter key
main menu.
Main menu
Settings such as:
activating an (optional) supplementary heating,

timer week program,

frost protection setting 7° C,

setting the clock (time and date).

NOTE
In the main menu, the ENTER, BACK and
also shown.
Extended menu
Optional settings, such as:
window monitoring,

key tone,

Bluetooth® (wireless connection for the installer

when using the Dimplex ConfigR app),
reset to factory settings.

Installer menu
System-specific settings, such as:
operation via central charge control,

operation with external room temperature con-

troller,
integrating an optional supplementary heating,

other options.

2202/D
English

keys are
EN-7
