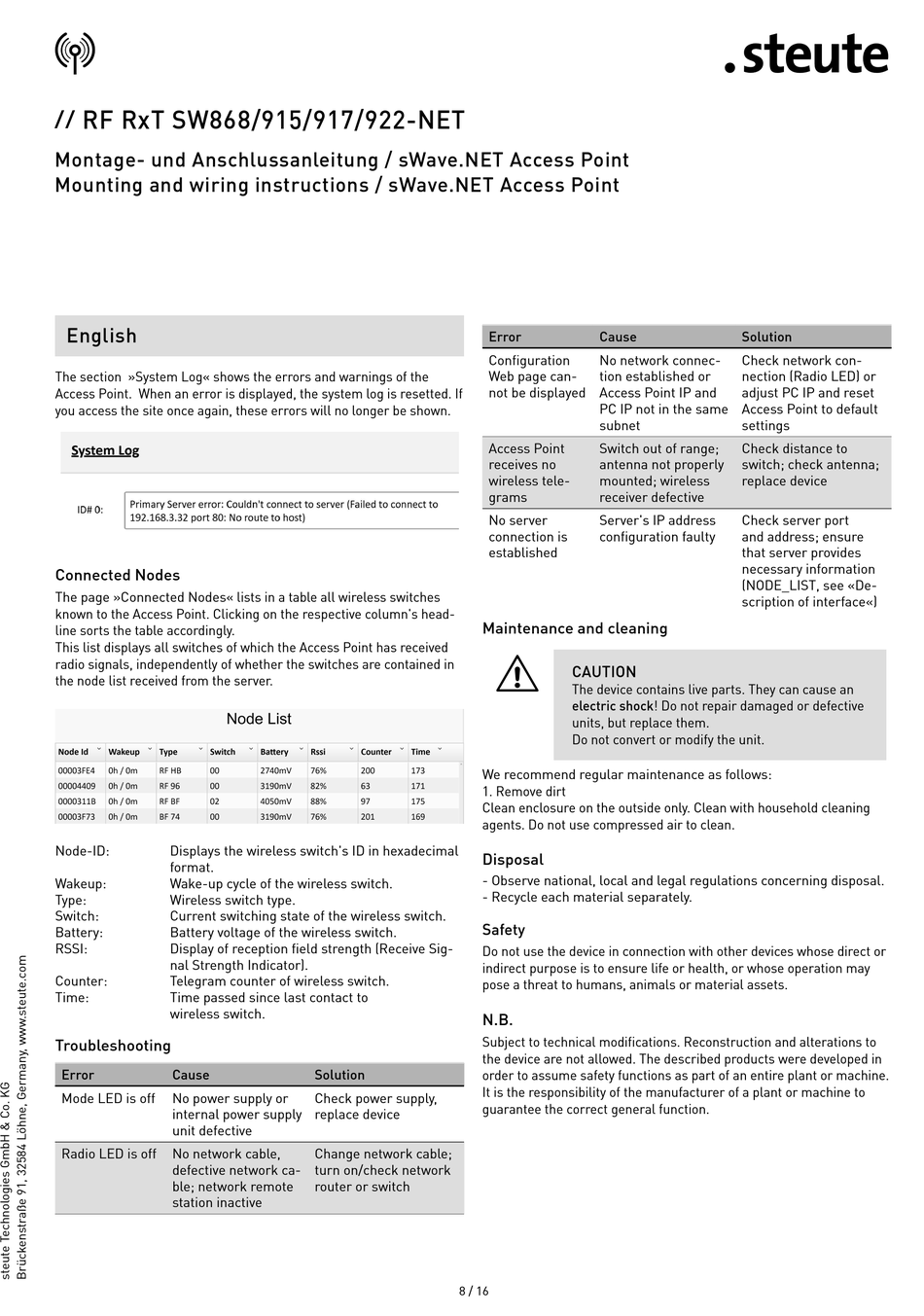

RF RxT SW868/915/917/922-NET
//
Montage- und Anschlussanleitung / sWave.NET Access Point
Mounting and wiring instructions / sWave.NET Access Point
English
The section »System Log« shows the errors and warnings of the
Access Point. When an error is displayed, the system log is resetted. If
you access the site once again, these errors will no longer be shown.
Connected Nodes
The page »Connected Nodes« lists in a table all wireless switches
known to the Access Point. Clicking on the respective column's head-
line sorts the table accordingly.
This list displays all switches of which the Access Point has received
radio signals, independently of whether the switches are contained in
the node list received from the server.
Node-ID: Displays the wireless switch's ID in hexadecimal
format.
Wakeup: Wake-up cycle of the wireless switch.
Type: Wireless switch type.
Switch: Current switching state of the wireless switch.
Battery: Battery voltage of the wireless switch.
RSSI: Display of reception field strength (Receive Sig-
nal Strength Indicator).
Counter: Telegram counter of wireless switch.
Time: Time passed since last contact to
wireless switch.
Troubleshooting
Error Cause
Mode LED is off No power supply or
internal power supply
unit defective
Radio LED is off No network cable,
defective network ca-
ble; network remote
station inactive
Error
Configuration
Web page can-
not be displayed
Access Point
receives no
wireless tele-
grams
No server
connection is
established

Maintenance and cleaning

We recommend regular maintenance as follows:
1. Remove dirt
Clean enclosure on the outside only. Clean with household cleaning
agents. Do not use compressed air to clean.
Disposal
- Observe national, local and legal regulations concerning disposal.
- Recycle each material separately.
Safety
Do not use the device in connection with other devices whose direct or
indirect purpose is to ensure life or health, or whose operation may
pose a threat to humans, animals or material assets.
N.B.
Subject to technical modifications. Reconstruction and alterations to
the device are not allowed. The described products were developed in
Solution order to assume safety functions as part of an entire plant or machine.
It is the responsibility of the manufacturer of a plant or machine to
Check power supply,
guarantee the correct general function.
replace device
Change network cable;
turn on/check network
router or switch
8 / 16
Cause
No network connec-
tion established or
Access Point IP and
PC IP not in the same
subnet
Switch out of range;
antenna not properly
mounted; wireless
receiver defective
Server's IP address
configuration faulty
=
CAUTION
The device contains live parts. They can cause an
electric shock! Do not repair damaged or defective
units, but replace them.
Do not convert or modify the unit.
Solution
Check network con-
nection (Radio LED) or
adjust PC IP and reset
Access Point to default
settings
Check distance to
switch; check antenna;
replace device
Check server port
and address; ensure
that server provides
necessary information
(NODE_LIST, see «De-
scription of interface«)
