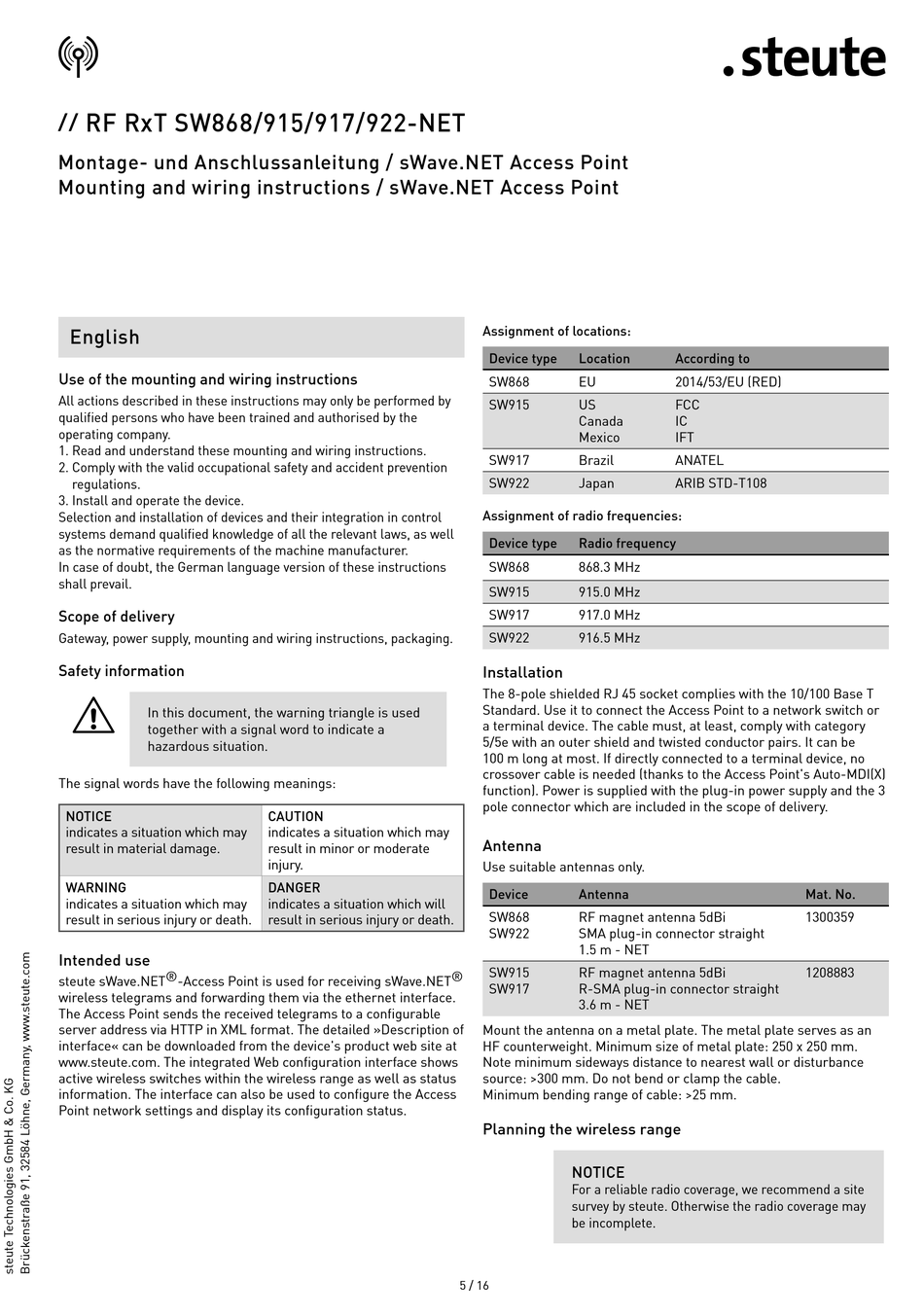

RF RxT SW868/915/917/922-NET
//
Montage- und Anschlussanleitung / sWave.NET Access Point
Mounting and wiring instructions / sWave.NET Access Point
English
Use of the mounting and wiring instructions
All actions described in these instructions may only be performed by
qualified persons who have been trained and authorised by the
operating company.
1. Read and understand these mounting and wiring instructions.
2. Comply with the valid occupational safety and accident prevention
regulations.
3. Install and operate the device.
Selection and installation of devices and their integration in control
systems demand qualified knowledge of all the relevant laws, as well
as the normative requirements of the machine manufacturer.
In case of doubt, the German language version of these instructions
shall prevail.
Scope of delivery
Gateway, power supply, mounting and wiring instructions, packaging.
Safety information
=
In this document, the warning triangle is used
together with a signal word to indicate a
hazardous situation.
The signal words have the following meanings:
NOTICE
indicates a situation which may
result in material damage.
WARNING
indicates a situation which may
result in serious injury or death.
Intended use
steute sWave.NET ® -Access Point is used for receiving sWave.NET ®
wireless telegrams and forwarding them via the ethernet interface.
The Access Point sends the received telegrams to a configurable
server address via HTTP in XML format. The detailed »Description of
interface« can be downloaded from the device's product web site at
www.steute.com. The integrated Web configuration interface shows
active wireless switches within the wireless range as well as status
information. The interface can also be used to configure the Access
Point network settings and display its configuration status.
CAUTION
indicates a situation which may
result in minor or moderate
injury.
DANGER
indicates a situation which will
result in serious injury or death.
Assignment of locations:
Device type
Location
SW868
EU
SW915
US
Canada
Mexico
SW917
Brazil
SW922
Japan
Assignment of radio frequencies:
Device type
Radio frequency
SW868
868.3 MHz
SW915
915.0 MHz
SW917
917.0 MHz
SW922
916.5 MHz
Installation
The 8-pole shielded RJ 45 socket complies with the 10/100 Base T
Standard. Use it to connect the Access Point to a network switch or
a terminal device. The cable must, at least, comply with category
5/5e with an outer shield and twisted conductor pairs. It can be
100 m long at most. If directly connected to a terminal device, no
crossover cable is needed (thanks to the Access Point's Auto-MDI(X)
function). Power is supplied with the plug-in power supply and the 3
pole connector which are included in the scope of delivery.
Antenna
Use suitable antennas only.
Device
Antenna
SW868
RF magnet antenna 5dBi
SW922
SMA plug-in connector straight
1.5 m - NET
SW915
RF magnet antenna 5dBi
SW917
R-SMA plug-in connector straight
3.6 m - NET
Mount the antenna on a metal plate. The metal plate serves as an
HF counterweight. Minimum size of metal plate: 250 x 250 mm.
Note minimum sideways distance to nearest wall or disturbance
source: >300 mm. Do not bend or clamp the cable.
Minimum bending range of cable: >25 mm.
Planning the wireless range
NOTICE
For a reliable radio coverage, we recommend a site
survey by steute. Otherwise the radio coverage may
be incomplete.
5 / 16
According to
2014/53/EU (RED)
FCC
IC
IFT
ANATEL
ARIB STD-T108
Mat. No.
1300359
1208883
